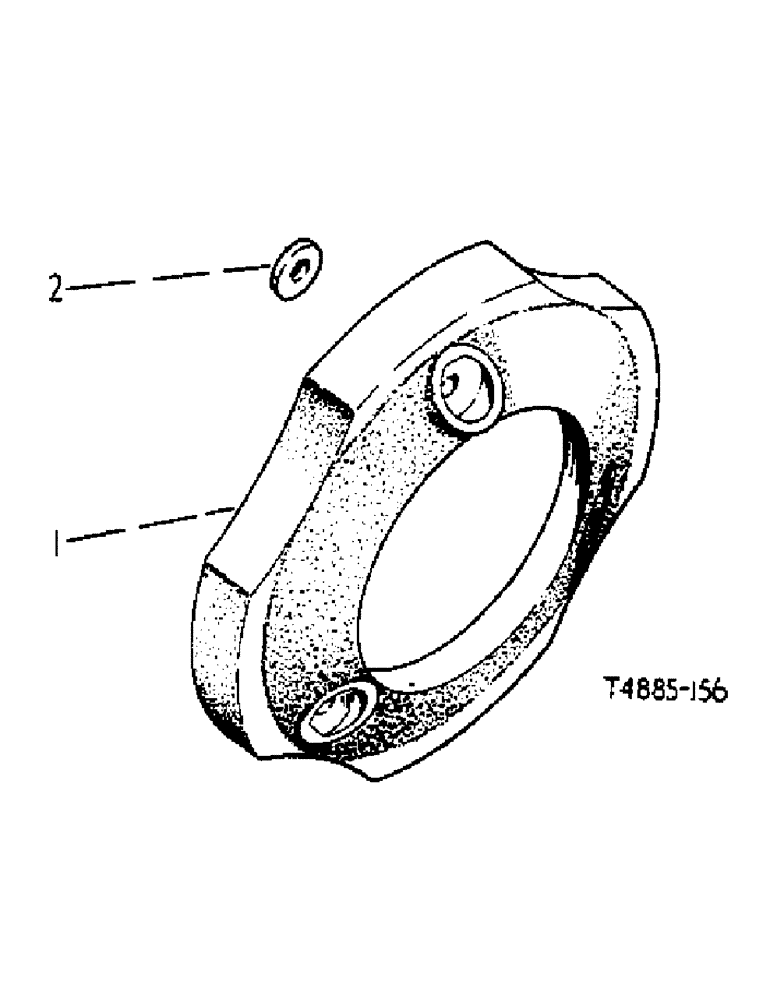

Запчасти Case IH 276 (6-42) - FRONT WHEEL WEIGHTS (06) - POWER TRAIN

3069509R91

WEIGHT, double set, comprising

1шт.

1

704155R1

WEIGHT, front wheel

4шт.

17784R1

BOLT,Hex, 5/8" - 11 x 4 5/8", Gr 2

5/8" x 4-7/8" hex-hd.

6шт.

102639

NUT,5/8"-11, G5

6шт.

704156R1

WASHER

taper (see ref. 2)

6шт.

3069510R91

WEIGHT, treble set, comprising

1шт.

1

704155R1

WEIGHT, front wheel

6шт.

17876R1

BOLT, 5/8" x 5-7/8" hex-hd.

6шт.

102639

NUT,5/8"-11, G5

6шт.

704156R1

WASHER

taper, (see ref. 2)

6шт.

3063511R91

END ASSY.

WEIGHT, field conversion, comprising

1шт.

1

704155R1

WEIGHT, front wheel

4шт.

17876R1

BOLT, 5/8" x 5-7/8" hex-hd.

6шт.

2

704156R1

WASHER

taper

6шт.
