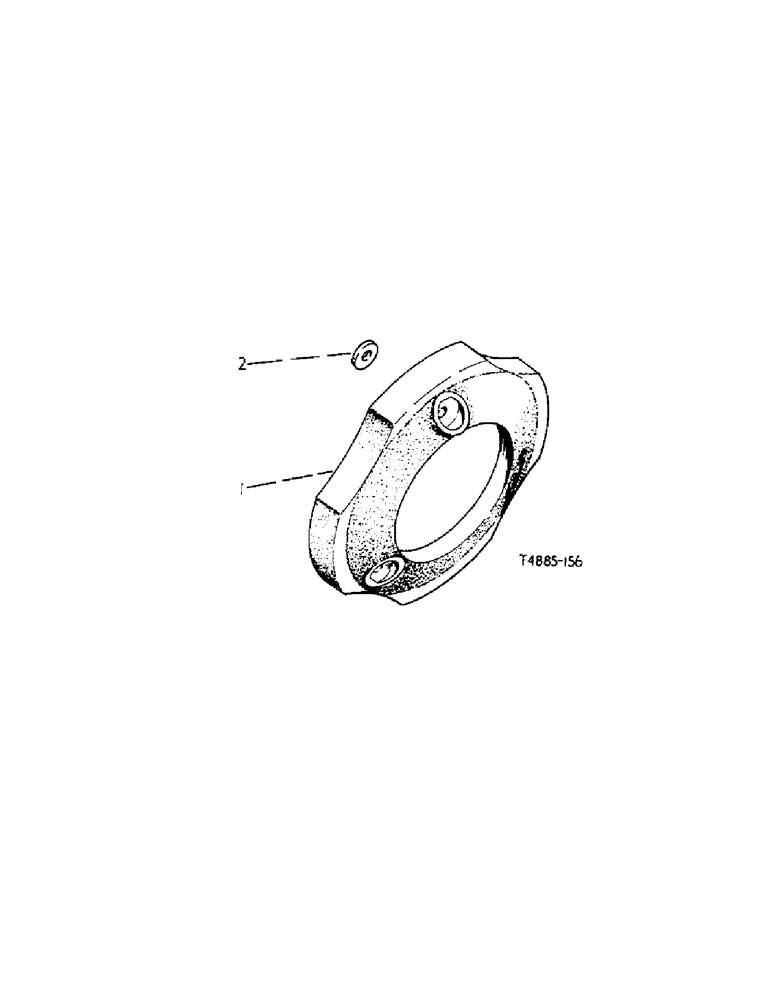

Запчасти Case IH 276 (6-41) - FRONT WHEEL WEIGHT ATTACHMENT (06) - POWER TRAIN

3040051R91

ATTACHMENT, front wheel weight (Single set) (5.50 x 16), comprising

1шт.

3040050R1

WEIGHT

front wheel (44lbs.)

2шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2" x 2-3/4" hex-hd.

8шт.

102637

NUT,1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3040052R91

ATTACHMENT, front wheel weight (2nd set) (5.50 x 16) comprising

1шт.

3040050R1

WEIGHT

front wheel (44 lbs.)

2шт.

17783R1

BOLT,Hex, 1/2" - 13 x 4 5/8", Gr 2

1/2" x 4-5/8"hex-hd.

8шт.

3069263R91

PISTON RING SET

ATTACHMENT, front wheel weight (double set), comprising

1шт.

3040050R1

WEIGHT

front wheel

4шт.

17783R1

BOLT,Hex, 1/2" - 13 x 4 5/8", Gr 2

1/2" x 4-5/8" hex-hd.

8шт.

704152R91

WEIGHTS, front wheel (first set), comprising

1шт.

1

704155R1

WEIGHT, front wheel

2шт.

17617R1

BOLT

5/8" x 2-7/8" mach., hex-hd.

6шт.

102639

NUT,5/8"-11, G5

6шт.

704153R91

WEIGHTS, front wheel (second set), comprising

1шт.

1

704155R1

WEIGHT, front wheel

2шт.

17784R1

BOLT,Hex, 5/8" - 11 x 4 5/8", Gr 2

5/8" x 4-5/8" mach., hex-hd.

6шт.

704154R91

WEIGHTS, front wheel (third set), comprising

1шт.

1

704155R1

WEIGHT, front wheel

2шт.

17876R1

BOLT, 5/8" x 5-7/8" mach., hex-hd.

6шт.

2

704156R1

WASHER

taper

6шт.
