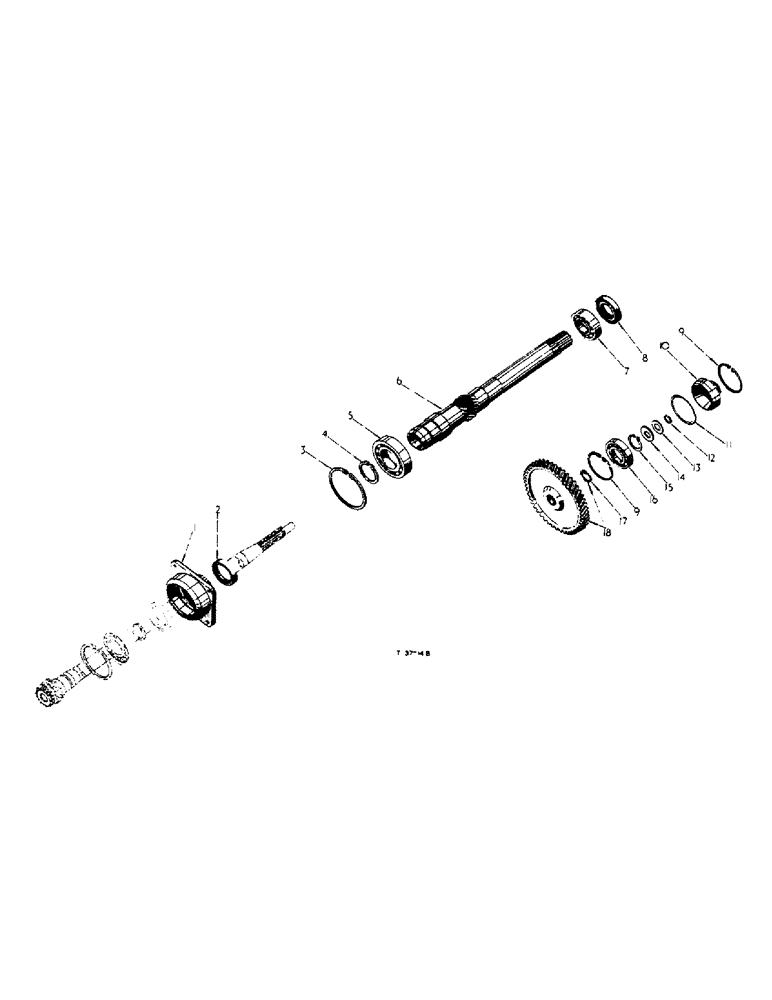

Запчасти Case IH 276 (6-29) - SINGLE SPEED P.T.O. GEARS AND SHAFTS, CONSTANT RUNNING P.T.O. ATTACHMENT (06) - POWER TRAIN

1

751077R1

CAGE

bearing, trans. driving shaft

1шт.

2

751140R91

SEAL

OIL SEAL, P.T.O. driving shaft,ear)

1шт.

2

3042160R91

SEAL

OIL SEAL, P.T.O. driving shaft,ear)

1шт.

3

703911R1

RING

CIRCLIP, P.T.O. driving shaft rear)

1шт.

3

933078R1

SNAP RING,M110, Int

RING, locking

1шт.

4

3064407R1

SNAP RING

CIRCLIP, P.T.O. driving shaft rear)

1шт.

4

703696R1

RING

CIRCLIP, P.T.O. driving shaft rear)

1шт.

4

3074379R1

SNAP RING

CIRCLIP, Anderton type 1400 60 mmar

1шт.

5

3069353R91

BALL BEARING

BEARING, P.T.O. driving shaft, rear

1шт.

5

3069352R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear

1шт.

5

3069349R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear

1шт.

5

3069355R91

BEARING, BALL

BEARING, P.T.O. driving shaft, rear

1шт.

6

751137R1

SHAFT, driving and gear, P.T.O. (16 teeth)

1шт.

Applicable for 555 r.p.m.

1шт.

6

3044303R1

SHAFT

driving and gear, P.T.O.

1шт.

Applicable for 698 r.p.m.

1шт.

7

704235R91

BALL BEARING

BEARING, P.T.O. driving shaft,,,ar)

1шт.

7

704234R91

BALL BEARING

BEARING, P.T.O. driving shaft,,,ar)

1шт.

7

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

BEARING, P.T.O. driving shaft,,,ar)

1шт.

7

3063608R91

BEARING

P.T.O. driving shaft,,,ar)

1шт.

8

704229R91

OIL SEAL

P.T.O. driving shaft,,ar)

1шт.

8

704230R91

SEAL

OIL SEAL, P.T.O. driving shaft,,ar)

1шт.

8

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

OIL SEAL, P.T.O. driving shaft,,ar)

1шт.

9

751149R1

RING

2шт.

10

751148R3

CAP

P.T.O. front bearing

1шт.

11

751147R1

O-RING

"O" RING, P.T.O. front bearing cap

1шт.

12

516010R1

O-RING

CIRCLIP, 3/4" external

1шт.

13

NOT USED

1шт.

14

751142R1

WASHER

retaining, P.T.O. shaft,ar)

1шт.

15

751146R1

RING

CIRCLIP, P.T.O. front bearingh)ear)

1шт.

16

704327R91

BEARING, BALL

BEARING, P.T.O. shaft, front (opt.)

1шт.

16

703644R91

BALL BEARING

BEARING, P.T.O. shaft, front (opt.)

1шт.

16

42454H

BALL BEARING

BEARING, P.T.O. shaft, front (opt.)

1шт.

16

3062611R91

BEARING

P.T.O. shaft, front (opt.)

1шт.

17

751145R1

RING, SNAP

CIRCLIP, P.T.O. driven gear

1шт.

18

3044302R11

GEAR

driven, P.T.O. (51 teeth) cpte., w/CIRCLIP 751145R1

1шт.

Applicable for 698 r.p.m.

1шт.

18

751144R11

GEAR, driven, P.T.O. (54 teeth) cpte., w/CIRCLIP 751145R1

1шт.

Applicable for 555 r.p.m.

1шт.
