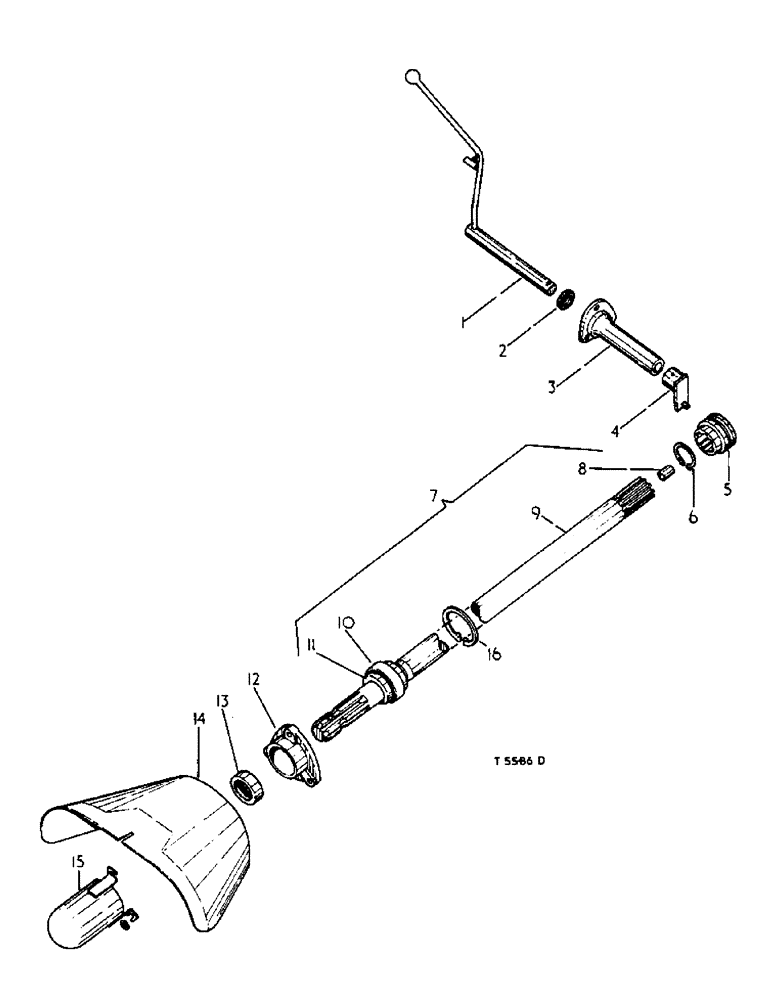

Запчасти Case IH 276 (6-25) - REAR P.T.O., CONSTANT RUNNING P.T.O. ATTACHMENT (06) - POWER TRAIN

1

3064230R91

LEVER

shifter, P.T.O. rear clutch

1шт.

142508

DRIVE BUSHING

groove, 3/16" x 1-1/4"

1шт.

2

704393R91

OIL SEAL

OIL SEAL, P.T.O. shifter bracket .

1шт.

2

704394R91

SEAL

OIL SEAL, P.T.O. shifter brackete.

1шт.

2

3066616R91

SEAL

OIL SEAL, P.T.O. shifter brackete.

1шт.

3

704392R21

SUPPORT

BRACKET, P.T.O. rear clutch, cpte.

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

3063246R91

SHIFTER, P.T.O. cpte. (opt.)

1шт.

4

751115R91

LEVER

SHIFTER, P.T.O. cpte. (opt.)

1шт.

5

751113R2

CLUTCH

rear, P.T.O. shaft

1шт.

6

751117R1

CLIP

CIRCLIP, P.T.O. shaft rear clutch

1шт.

7

3073111R91

SHAFT

cpte., P.T.O. 276D/4560 up, comprising

1шт.

Including 276P/2102 up 276In/2008 up

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH

1шт.

NSS

NOT SOLD SEPARAT

COLLAR

2шт.

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

7

751114R51

SHAFT HOUSING

SHAFT, cpte., rear P.T.O. up to 276D/4559 (order 3073114R91), comprising

1шт.

Including up to 276P/2101 up to 276IN/2007

1шт.

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH

1шт.

8

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH, P.T.O. rear shaft

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT, P.T.O. (order 3073111R91)

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING, P.T.O. shaft (order 3073111R91) 276D/4560 up

1шт.

Including 276P/2102 up 276In/2008 up

1шт.

10

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

BEARING, P.T.O. shaft (SKF) (opt.)

1шт.

10

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, P.T.O. shaft (Fischer)to42

1шт.

10

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

BEARING, P.T.O. shaft (Hoffman)to42

1шт.

10

705750R91

BEARING, BALL

BEARING, P.T.O. shaft (R&M) (opt.)

1шт.

10

3108784R91

BEARING, BALL

BEARING, P.T.O. shaft (NTN) up to 276D/4559 (opt.)

1шт.

Including up to 276P/2101 up to 276IN/2007

1шт.

11

NSS

NOT SOLD SEPARAT

COLLAR, P.T.P. shaft (order 3073114R91) 276D/4560 up

2шт.

Including 276P/2102 up 276In/2008 up

1шт.

11

707991R1

COLLAR

P.T.O. shaft, Serial Range: up-276D/4559

1шт.

Including up to 276P/2101 up to 276IN/2007

1шт.

12

704387R12

RETAINER

w/OIL SEAL 708580R91s.r42

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

3шт.

95-11034

WASHER,1/4"

11/32" x 11/16" x 16 ga.

3шт.

13

708580R91

SEAL ASSY.

OIL SEAL, P.T.O. (opt.)

1шт.

13

3065217R91

OIL SEAL

OIL SEAL, P.T.O. (opt.)

1шт.

13

3068756R91

SEAL

OIL SEAL, P.T.O. (opt.)

1шт.

14

704395R96

SHIELD

safety P.T.O. cpte.

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

CAP, safety, P.T.O. cpte. (Sees.r42

1шт.

16

704385R1

CLIP

CIRCLIP, (internal 72 mm.)

1шт.

3073114R91

SERVICE KIT

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

NSS

NOT SOLD SEPARAT

COLLAR

1шт.
