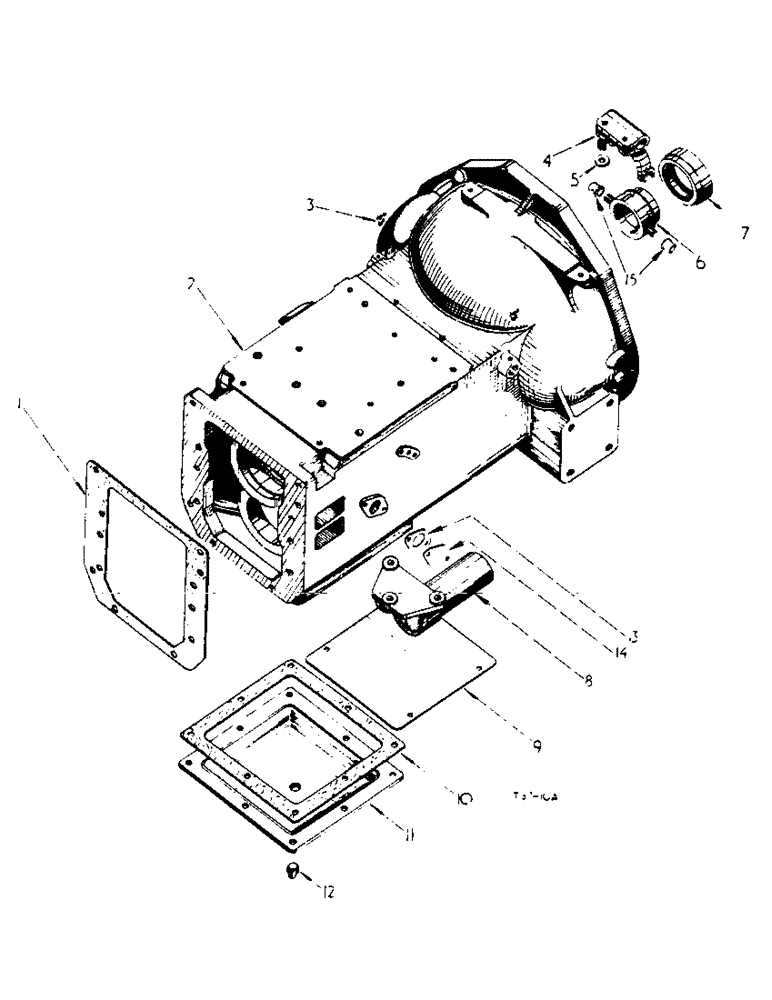

Запчасти Case IH 276 (6-23) - CLUTCH HOUSING CONSTANT RUNNING P.T.O. ATTACHMENT (06) - POWER TRAIN

1

751124R1

GASKET

clutch, Serial Range: housing-trans.r42

1шт.

2

751122R31

HOUSING, clutch, cpte., w/twoUGSr42

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

hex-hd., 1/2" x 1-1/2"

8шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

hex-hd., 1/2" x 1-3/4"

2шт.

20549R1

BOLT,Hex, 1/2" - 13 x 1 7/8", Gr 8

hex-hd. 1/2" x 1-7/8"

7шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

17шт.

3

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1шт.

4

3044005R2

FORK

clutch release

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

clutch release fork

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

3047229R1

WASHER

KEY, clutch release

1шт.

6

3070647R1

SLEEVE

clutch release bearing

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

3070634R91

BALL BEARING

BEARING, clutch release (opt.)

1шт.

7

3071300R91

BALL BEARING

BEARING, clutch release (opt.)

1шт.

7

3070635R91

BALL BEARING

BEARING, clutch release (opt.)

1шт.

8

3045087R1

CARRIER

clutch release bearing)r42

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

hex-hd., 7/16" x 1-1/4"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

9

751125R1

COVER

hand hole, housing

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, hex-hd., 3/8" x 1-11/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

751126R1

GASKET

cover plate P.T.O. gearbox

1шт.

11

751127R1

PLATE

cover P.T.O. gearbox

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

12

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe, 1/2" NPT (cast iron)r42

1шт.

12

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, Malleable r42 Sq Hd, 1/2"-14 NPTF

1шт.

13

751130R1

GASKET

P.T.O. shifter hole cover42

1шт.

Used only with single speed constant running P.T.O. attachment

1шт.

14

751131R1

PLATE

cover P.T.O. shifter hole

1шт.

Used only with single speed constant running P.T.O. attachment

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

hex-hd., 1/4" x 11/16"

2шт.

Used only with single speed constant running P.T.O. attachment

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Used only with single speed constant running P.T.O. attachment

1шт.

15

3045088R1

INSERT

clutch release fork bush

2шт.

751443R1

PIN

dowel (clutch housing)

2шт.

3068219R91

1шт.

3068213R1

STRIP, clutch housing hand hole1042

1шт.

1026424R1

TRANSFER, P.T.O. speed 555 r.p.m.

1шт.

1026460R1

TRANSFER, P.T.O. speed 698 r.p.m.

1шт.

1026486R1

TRANSFER, P.T.O. speed, 555 or 1042

1шт.

1026453R1

TRANSFER, P.T.O. speed, 555 or 6981

1шт.
