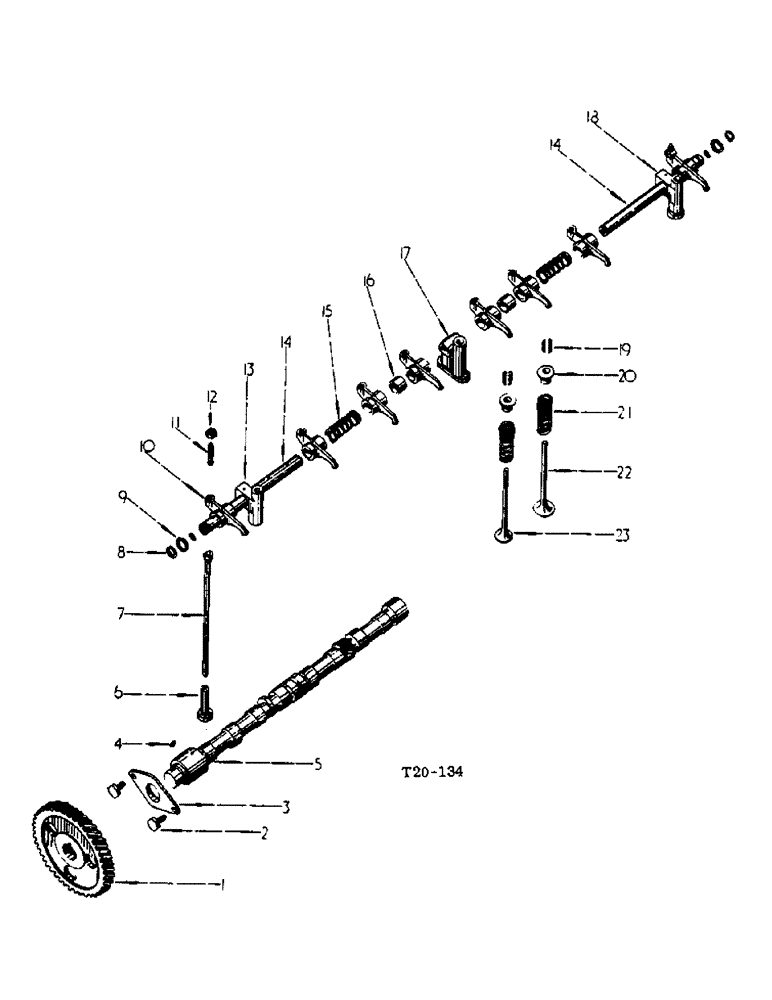

Запчасти Case IH 276 (1-04) - CAMSHAFT AND VALVE MECHANISM (02) - ENGINE

1

3064085R1

PINION

GEAR, camshaft (66 teeth)

1шт.

2

26058D

SCREW

camshft thrust plate

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Type A Int Tooth, 3/8"

2шт.

3

43249D

PLATE

trust, camshaft

1шт.

4

218217

KEY

camshaft, gear

1шт.

5

3063934R1

CAMSHAFT

1шт.

5

3064086R91

GEAR

CAMSHAFT, w/CAMSHAFT 3063934R1, GEAR 3064085R1, KEY 218217 and PLATE 43249D

1шт.

6

704782R1

TAPPET

valve

8шт.

7

704783R2

ROD

push valve

8шт.

8

43375D

RING

snap, valve lever shaft

2шт.

9

43374D

SPRING WASHER

spring, valve lever shaft

2шт.

10

706131R11

ROCKER

LEVER, valve, cpte., w/eight Bushing 24564DA (opt.)

8шт.

10

3071431R1

ROCKER

LEVER, valve (opt.)

8шт.

11

3106732R1

SCREW, adj. valve lever

8шт.

12

133093R1

NUT,Hex, 3/8" - 24

valve lever adj. screw

8шт.

13

703886R2

SUPPORT

BRACKET, valve lever shaft - front

1шт.

102635

NUT,3/8"-16, G5

1шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

1шт.

14

703884R21

CAMSHAFT

SHAFT, valve lever, cpte., w/PLUG 172528

2шт.

172528

PLUG,Exp, 9/16"

end, valve lever shaft

2шт.

15

45949D

SPRING

valve lever

2шт.

16

703893R2

SPACER

valve lever

2шт.

17

703885R1

SUPPORT

BRACKET, valve lever shaft - centre

1шт.

18

703887R2

SUPPORT

BRACKET, vavle lever shaft - rear

1шт.

102635

NUT,3/8"-16, G5

2шт.

442934

GROOVED PIN,3/16" x 1 1/4", Type B

Pin, Grooved, 3/16" x 1 1/4", Type B

2шт.

19

704443R1

WEDGE

LOCK, valve spring

16шт.

20

704446R1

CUP

retainer, valve spring

8шт.

21

710347R2

VALVE SPRING

SPRING, valve

8шт.

22

704434R1

LOCK VALVE

VALVE, intake

4шт.

23

3043825R1

STD EXHAUST VALVE

VALVE, exhaust

4шт.

24564DA

BUSHING

BUSH, rocker arm (valve lever, cpte.)

8шт.
