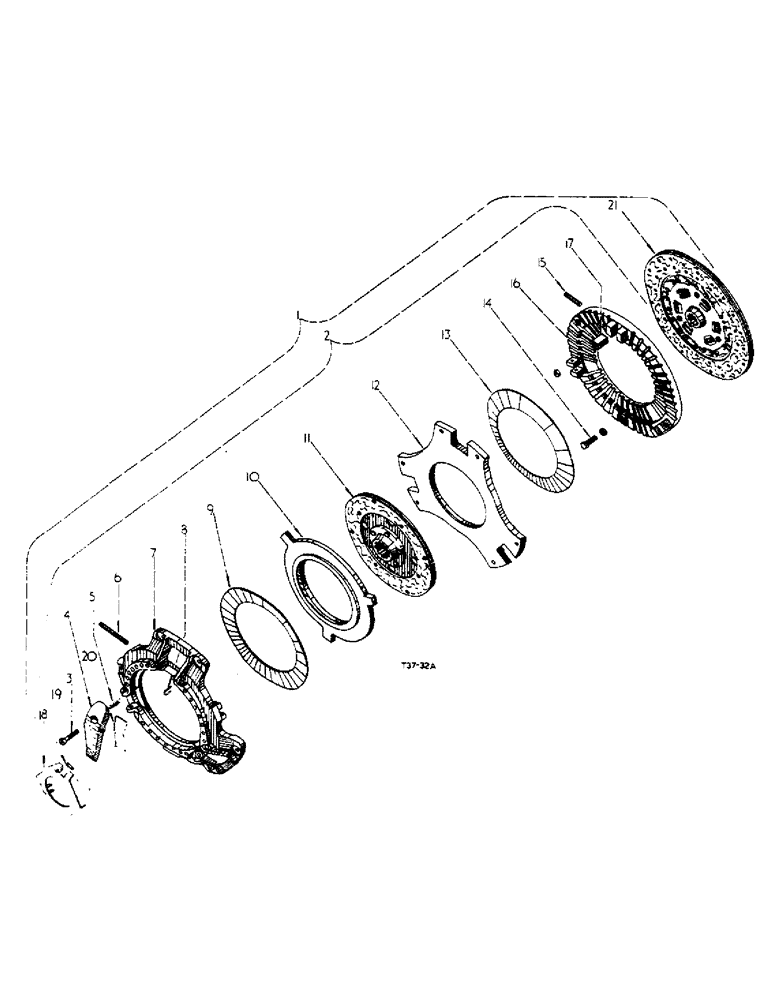

Запчасти Case IH 276 (6-21) - DUAL CLUTCH AND FLYWHEEL, CONSTANT RUNNING P.T.O. ATTACHMENT (06) - POWER TRAIN

1

751132R98

CLUTCH

auburn, dual, cpte., w/HOUSING 709638R95 and MEMBER 709639R94

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

709638R94

HOUSING

assy., comprising

1шт.

709642R2

COVER

1шт.

709647R1

END FITTING

END

3шт.

709650R1

SET

LEVER

3шт.

709640R92

CLUTCH & DISC ASSY

MEMBER

1шт.

3066671R1

NUT

6шт.

709648R1

PIN

3шт.

3047750R1

PIVOT PIN,7.84mm OD x 68.3mm L

PIN

3шт.

345529R1

PIN

3шт.

709641R1

PLATE

1шт.

709643R1

PLATE

1шт.

709644R1

PLATE

1шт.

3045527R1

RING

1шт.

709651R1

ADJUSTMENT SCREW

3шт.

709652R1

SET SCREW

3шт.

3045530R1

SLEEVE

1шт.

709645R1

SPRING

1шт.

3041104R1

SPRING

1шт.

709654R1

VALVE SPRING

SPRING

3шт.

3045528R2

SPRING

3шт.

3047600R1

SPRING

3шт.

3

709651R1

ADJUSTMENT SCREW

adjusting

3шт.

4

709650R1

SET

LEVER, clutch

3шт.

5

709654R1

VALVE SPRING

SPRING, anchor clip

3шт.

6

3047750R1

PIVOT PIN,7.84mm OD x 68.3mm L

PIN, pivot

3шт.

7

709642R2

COVER

1шт.

8

3041104R1

SPRING, hair pin

1шт.

9

709646R1

PLATE ASSY.

SPRING, belleville (9" clutch)

1шт.

10

709644R1

PLATE

pressure (9" clutch)

1шт.

11

709640R92

CLUTCH & DISC ASSY

MEMBER, 9" driven, assy.

1шт.

12

709643R1

PLATE

flywheel

1шт.

13

709643R1

PLATE

SPRING, belleville (main drive)

1шт.

14

709652R1

SET SCREW

set

3шт.

709653R1

NUT

lock

6шт.

15

709648R1

PIN

rod end

3шт.

16

709641R1

PLATE

pressure (main drive)

1шт.

17

709647R1

END FITTING

END, rod

3шт.

18

3045527R1

RING

release

1шт.

19

3045529R1

PIN

split

3шт.

20

3045528R2

SPRING

SLEEVE

3шт.

21

709639R94

CLUTCH & DISC ASSY

SPRING

3шт.

3045853R1

MEMBER, 11" driven

1шт.

3045853R11

FLYWHEEL, cpte., (Petrol Engine), comprising

1шт.

3045853R1

FLYWHEEL

1шт.

3044171R1

GEAR

flywheel ring

1шт.

751128R31

FLYWHEEL, cpte., (Pneumatic Governor Engines)

1шт.

3041456R11

FLYWHEEL, cpte., (D.P.A. Engines) each comprising

1шт.

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

709515R1

BOLT,Hex, 7/16" - 20 x 1 1/4"

flywheel

4шт.

3069118R2

SHEET

LOCK, flywheel bolt

2шт.

3045531R91

LEVER

PACKAGE, service, clutch release lever, comprising

1шт.

709650R1

SET

LEVER

3шт.

3045529R1

PIN

3шт.

3045527R1

RING

1шт.

3045528R1

SPRING

3шт.

3045530R1

SLEEVE

SPRING

3шт.

3041390R91

FACING

PACKAGE, service, 9" clutch facing

1шт.

3041389R91

SERVICE KIT

PACKAGE, service, 11" clutch facing w/FACINGS and twenty four RIVETS 3070748R1

1шт.

3070748R1

RIVET

24шт.
