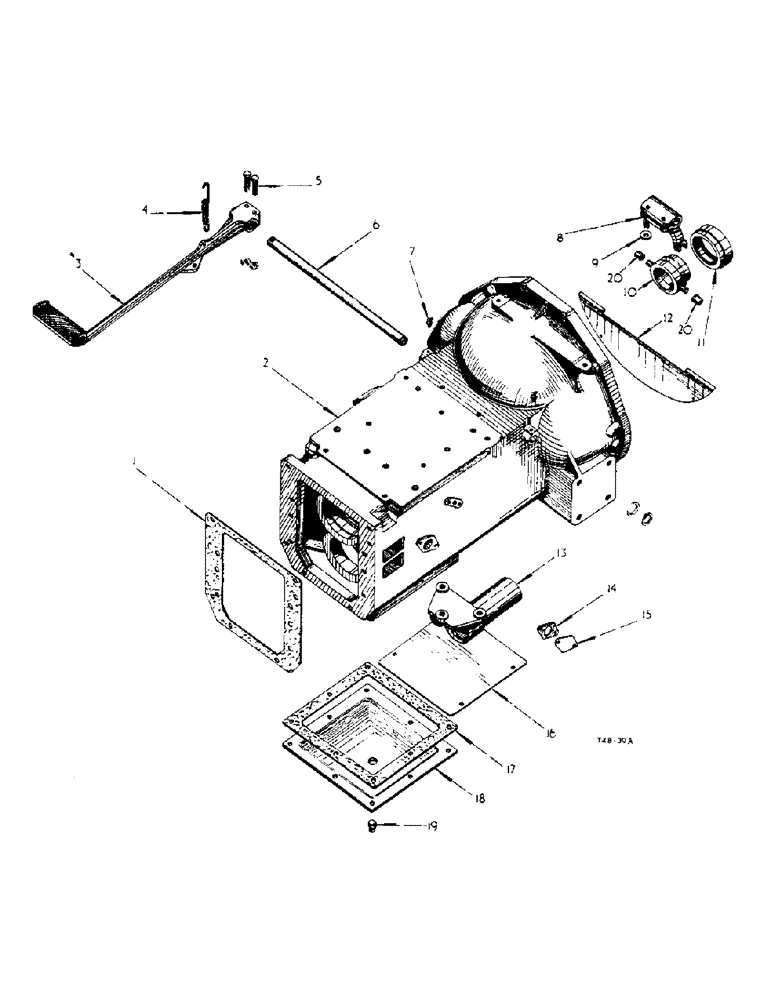

Запчасти Case IH 276 (6-18) - HEAVY DUTY SINGLE CLUTCH ATTACHMENT (06) - POWER TRAIN

ATTACHMENT, heavy duty single clutch, comprising CLUTCH HOUSING (see detail list) 11" HEAVY DUTY SINGLE CLUTCH and FLYWHEEL (see detail list)

1шт.

1

751124R2

GASKET

clutch housing, heavy duty single attachment

1шт.

2

751122R31

HOUSING, clutch cpte., w/two FITTING 109462 and PLUG 103868, heavy duty single clutch attachment

1шт.

340340R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

special, hex-hd., 1/2" x 1-1/2", clutch housing heavy duty single clutch attachment

8шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

hex-hd., 1/2" x 1-3/4", clutch housing heavy duty single clutch attachment

2шт.

20549R1

BOLT,Hex, 1/2" - 13 x 1 7/8", Gr 8

special, hex-hd., 1/2" x 1-7/8", clutch housing heavy duty single clutch attachment

7шт.

751443R1

PIN

DOWEL, clutch housing, clutch housing heavy duty single clutch attachment

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Clutch housing heavy duty single clutch attachment 1/2"

17шт.

3

751050R2

PEDAL

clutch, housing heavy duty single clutch attachment

1шт.

3047838R1

BOLT

clutch pedal, housing heavy duty single clutch attachment

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

Clutch housing heavy duty single clutch attachment Jam, 5/16"-18, G5

1шт.

4

705252R3

SPRING

clutch pedal return, housing heavy duty single clutch attachment

1шт.

5

181379

BOLT,Hex, 3/8" - 24 x 2", Gr 5

hex-hd., 3/8" UNF x 2", clutch housing heavy duty single clutch attachment

2шт.

751872R1

NUT

special, hex., 3/8" UNF, clutch housing heavy duty single clutch attachment

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Clutch housing heavy duty single clutch attachment 3/8"

2шт.

6

3071270R1

SHAFT

clutch release, housing heavy duty single clutch attachment

1шт.

3045166R1

RING

CIRCLIP, ext. type 1400, 13/16", clutch housing heavy duty single clutch attachment

1шт.

49405H

WASHER

plain, 27/32" x 1-1/4" x 16 ga., clutch housing heavy duty single clutch attachment

1шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lub. 90 degree angle, 1/8" PT, clutch housing heavy duty single clutch attachment

2шт.

8

3044005R1

NO LONGER SERVICED

FORK, clutch release, housing heavy duty single clutch attachment

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

clutch release fork, housing heavy duty single clutch attachment

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Clutch housing heavy duty single clutch attachment 5/16"

2шт.

9

3047229R1

WASHER

KEY, clutch release shaft, housing heavy duty single clutch attachment

1шт.

10

3070641R1

BUSHING

SLEEVE, clutch release, housing heavy duty single clutch attachment

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Clutch housing heavy duty single clutch attachment 1/8"-27 x .66 lg

1шт.

11

3070634R91

BALL BEARING

BEARING, clutch release (opt.), housing heavy duty single clutch attachment

1шт.

11

3070635R91

BALL BEARING

BEARING, clutch release (opt.), housing heavy duty single clutch attachment

1шт.

11

3071300R91

BALL BEARING

BEARING, clutch release (opt.), housing heavy duty single clutch attachment

1шт.

12

703957R1

COVER

clutch housing dust, clutch housing heavy duty single clutch attachment

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Clutch housing heavy duty single clutch attachment Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Clutch housing heavy duty single clutch attachment 1/4"

2шт.

13

3045087R1

CARRIER

clutch release sleeve, clutch housing heavy duty single clutch attachment

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

hex-hd., 7/16" x 1-1/4", clutch housing heavy duty single clutch attachment

3шт.

81547

LOCK WASHER,7/16"

WASHER, LOCK, , Clutch housing heavy duty single clutch attachment 7/16"

3шт.

14

751130R1

GASKET

P.T.O. shifter hole cover plate, clutch housing heavy duty single clutch attachment

1шт.

15

751131R1

PLATE

cover, P.T.O. shifter hole, clutch housing heavy duty single clutch attachment

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

hex-hd., 1/4" x 11/16", clutch housing heavy duty single clutch attachment

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Clutch housing heavy duty single clutch attachment 1/4"

2шт.

16

751125R1

COVER

clutch housing hand hole, clutch housing heavy duty single clutch attachment

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Clutch housing heavy duty single clutch attachment Hex, 3/8"-16 x 1/2", G5, Full Thd

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Clutch housing heavy duty single clutch attachment 3/8"

4шт.

17

751126R1

GASKET

P.T.O. gearbox cover plate, clutch housing heavy duty single clutch attachment

1шт.

18

751127R1

PLATE

P.T.O. gearbox cover, clutch housing heavy duty single clutch attachment

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Clutch housing heavy duty single clutch attachment Hex, 3/8"-16 x 7/8", G5, Full Thd

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Clutch housing heavy duty single clutch attachment 3/8"

8шт.

19

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe, 1/2" WPTF (cast iron) (opt.), clutch housing heavy duty single clutch attachment

1шт.

19

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe (Malleable) Optional, CLutch housing heavy duty single clutch attachment Sq Hd, 1/2"-14 NPTF

1шт.

20

3045088R1

INSERT

bush clutch release fork, clutch housing heavy duty single clutch attachment

2шт.

3068215R1

SEAL

sealing, clutch housing hand hole cover, clutch housing heavy duty single clutch attachment

1шт.
