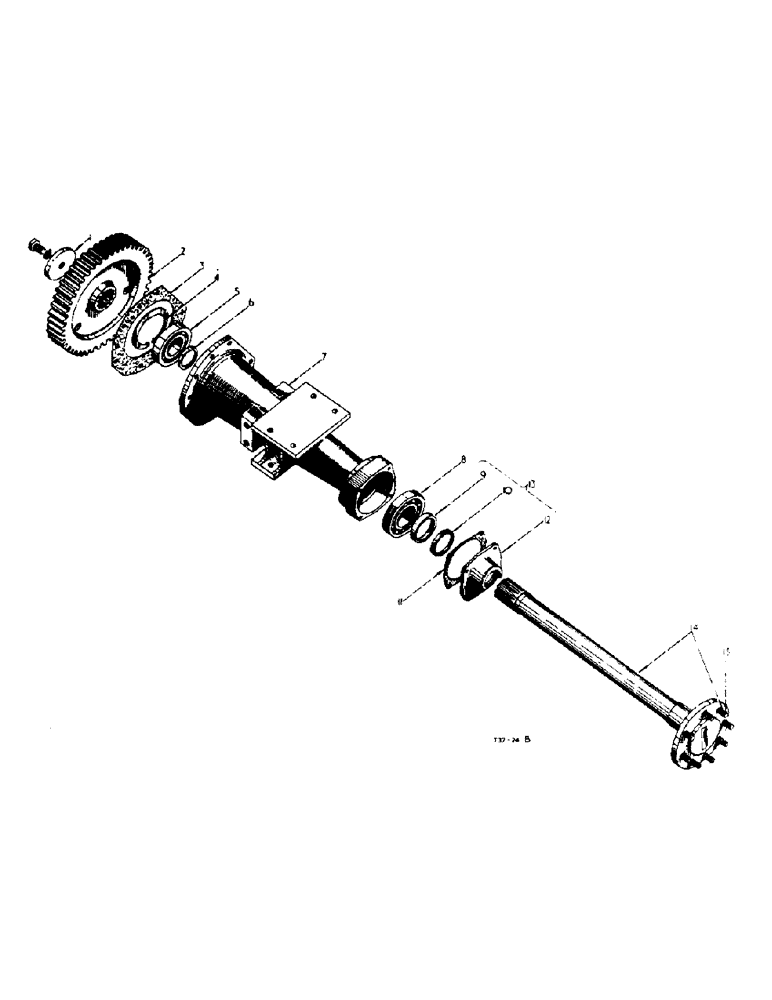

Запчасти Case IH 276 (4-30) - REAR AXLE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
709252R1
WASHER
retaining, bull gear
2шт.
28-1228
BOLT,Hex, 3/4" - 16 x 1-3/4", Gr 8
hex-hd., 3/4" UNF x 1-3/4"
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
2
3044031R1
GEAR WHEEL
GEAR, bull (48 teeth)
2шт.
3
703913R3
GASKET,0.79mm Thk
rear axle carrier
2шт.
4
703911R1
RING
CIRCLIP, "Seeger", 110 mm. bore size internal (opt.)
1шт.
4
933078R1
SNAP RING,M110, Int
RING, locking (opt.)
2шт.
5
3069349R91
BEARING, BALL
rear axle, inner (opt.)
2шт.
3069350R91
BEARING
ball, rear axle, inner (opt.)
2шт.
3069351R91
BEARING
ball, rear axle, inner (opt.)
2шт.
3069352R91
BEARING, BALL
rear axle, inner (opt.)
2шт.
3069353R91
BALL BEARING
BEARING, ball, rear axle, inner (opt.)
2шт.
6
709251R1
COLLAR
rear axle
2шт.
7
703909R4
CARRIER
rear axle, R.H. (Illustrated)
1шт.
703910R4
CARRIER
rear axle, L.H.
1шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
hex-hd. 1/2" x 1-5/8"
20шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
20шт.
8
3069363R91
BEARING
ball, rear axle, outer (opt.)
2шт.
3069360R91
BALL BEARING
BEARING, ball, rear axle, outer (opt.)
2шт.
3069361R91
BALL BEARING
BEARING, ball, rear axle, outer (opt.)
2шт.
3069362R91
BALL BEARING
BEARING, ball, rear axle, outer (opt.)
2шт.
9
703917R92
OIL SEAL
OIL SEAL, rear axle
2шт.
10
703915R1
WASHER,2.56mm ID x 3.13mm OD x 0.25mm Thk
felt, rear axle
2шт.
11
711197R1
GASKET
rear axle bearing retainer
2шт.
12
NOT SERVICED
1шт.
13
751398R11
RETAINER
rear axle bearing, cpte., w/OIL SEAL 703917R91 and WASHER 703915R1 (opt.)
2шт.
13
703914R11
RETAINER
rear axle bearing, cpte., w/OIL SEAL 703917R91 and WASHER 703915R1 (opt.)
2шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
8шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
14
709250R1
AXLE, rear
2шт.
15
3047576R2
BOLT
rear wheel hub
16шт.
3047575R2
NUT,Wheel, 5/8"-18
disc, rear wheel
16шт.
3042081R1
SHIM
bull gear (As Required)
16шт.
Выбрано товаров: 33
