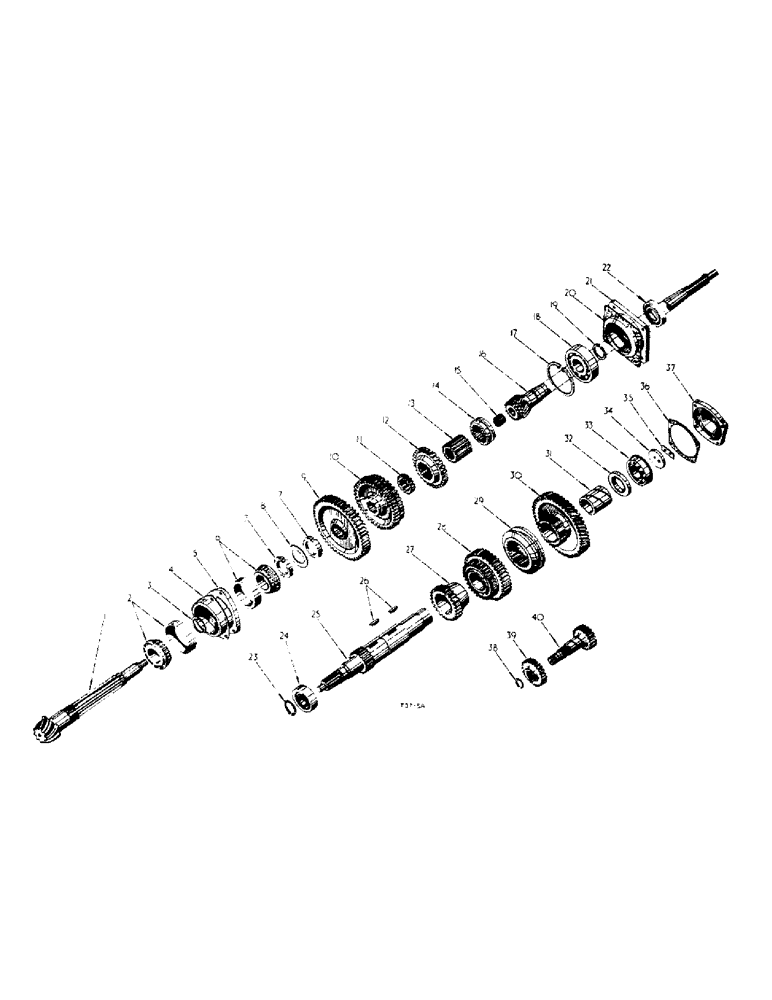

Запчасти Case IH 276 (4-25) - TRANSMISSION GEARS AND SHAFTS (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

SHAFT trans, spline, order 709448R92

1шт.

2

PO15712

TAPERED BEARING

roller, taper, trans. spline shaft, rear, Timken

1шт.

3

707500R1

SPACER

trans. spline shaft taper roller bearing

1шт.

707501R1

SHIM

trans. spline shaft taper roller bearing, .002

1шт.

707503R1

SHIM

trans. spline shaft taper roller bearing, .004

1шт.

707502R1

SHIM

trans. spline shaft taper roller bearing, .010

1шт.

4

704008R1

SHIM

trans. spline shaft taper roller bearing cage, heavu

1шт.

4

704009R1

SHIM

trans. spline shaft taper roller bearing cage, medium

1шт.

4

704010R1

SHIM

trans. spline shaft taper roller bearing cage, light

1шт.

5

751069R1

CAGE

trans. spline shaft taper roller bearing

1шт.

186334

BOLT hex-hd., 1/2" UNF x 2-5/8"

3шт.

25-118

NUT,1/2"-20, G5

lock, 1/2" UNF

3шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

3шт.

6

551862R91

BEARING ASSY,2" ID x 3.5" OD x 0.875"

roller, taper, trans. spline shaft, Timken, opt.

1шт.

6

704715R91

TAPERED BEARING

BEARING roller, taper, trans. spline shaft, Timken, opt.

1шт.

7

751068R1

NUT

lock, trans. spline shaft, taper roller bearing

2шт.

8

703992R1

WASHER

lock, trans. spline shaft, taper roller bearing, lock nut

1шт.

9

751070R1

GEAR

sliding, 1st and reverse speed, 51 teeth

1шт.

10

751071R1

GEAR

sliding, 2nd and 3rd speed, 44 and 36 teeth

1шт.

11

751073R2

GEAR

coupling, 4th and direct speed

1шт.

12

751072R3

SPLINED COUPLING

GEAR coupling, sliding, 4th and direct speed, 51 teeth

1шт.

13

751074R21

GEAR

sliding quill, cpte., with two Bearing 751075R91

1шт.

14

751076R3

COUPLING, BREAK AWAY

COUPLING sliding gear

1шт.

15

704014R91

NO LONGER SERVICED

BEARING pilot, trans. spline shaft, Fischer, opt.

1шт.

15

751867R91

BEARING

pilot, trans. spline shaft, Ina, opt.

1шт.

16

751078R2

SHAFT

trans. driving

1шт.

17

751081R1

CLIP

CIRCLIP, trans. driving shaft bearing, retaining, 100 mm internal

1шт.

18

700523R91

BEARING, BALL

BEARING, trans. driving shaft, R & M., opt.

1шт.

18

700521R91

BALL BEARING

BEARING, trans. driving shaft, Fischer, opt.

1шт.

18

49533H

BEARING, BALL

BEARING, trans. driving shaft, S.K.F., opt.

1шт.

18

704768R92

BALL BEARING

BEARING, trans. driving shaft, Hoffman, opt.

1шт.

19

751146R1

RING

CIRCLIP, trans. driving shaft bearing, retaining

1шт.

20

704017R1

GASKET

trans. driving shaft bearing, cage

1шт.

21

751181R1

CAGE

bearing, trans. driving shaft

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

751080R91

SEAL

OIL SEAL, trans. driving shaft, opt.

1шт.

22

3066617R91

SEAL

OIL SEAL, trans. driving shaft, opt.

1шт.

22

3049150R92

SEAL

OIL SEAL, trans. driving shaft, opt.

1шт.

23

703984R1

SNAP RING

CIRCLIP, trans. countershaft, rear, ball bearing retainer

1шт.

24

700524R91

BALL BEARING

BEARING ball, trans., countershaft, rear, Fischer, opt.

1шт.

294714R91

BALL BEARING

BEARING ball, trans. countershaft, rear, S.K.F., opt.

1шт.

700526R91

BEARING, BALL

BEARING ball, trans. countershaft, rear, R & M, opt.

1шт.

704772R92

BEARING, BALL

BEARING ball, trans. countershaft, rear, Hoffman, opt.

1шт.

25

751052R2

GEAR

COUNTERSHAFT, trans. and 1st speed rear

1шт.

26

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

2шт.

27

751054R1

GEAR

driving, 2nd speed, 26 teeth

1шт.

28

751055R3

GEAR

3rd and 4th speed, 32 and 39 teeth

1шт.

29

3040868R3

SPLINED COUPLING

COUPLING sliding gear

1шт.

30

751058R2

GEAR

constant mesh

1шт.

31

751056R1

BUSHING

BUSH cast iron

1шт.

32

751056R1

BUSHING

SPACER countershaft

1шт.

33

751060R91

CRANKSHAFT BEARING

BEARING ball, countershaft, front, R&M, opt.

1шт.

33

3063612R91

BEARING

ball, countershaft, front, Hoffman, opt.

1шт.

34

751120R2

WASHER

retaining, trans. countershaft

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

35

751441R1

SHIM

LOCKPLATE, trans. countershaft

1шт.

36

751061R1

GASKET

countershaft, front, ball bearing, retainer

1шт.

37

751062R1

RETAINER

countershaft, front, ball bearing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

38

704029R1

RING

CIRCLIP ext. 25 mm, 276D/5133 up, including 276P/2195 up and 276 Ind/2016 up

1шт.

3110755R1

WASHER

reverse idler, 276D/5133D, including 276P/2195 up and 276 Ind/2016 up

1шт.

38

704083R1

CIRCLIP, ext. Seeger , up to 276D/5132, including up to 276P/2194 and up to 276 Ind/2015

1шт.

Q319

WASHER, 1-1/64" x 1-35/64" x 12 Ga. up to 276D/5132, including up to 276P/2194 up to 276 Ind/2015

1шт.

39

751849R2

GEAR driving, reverse idler, 24 teeth

1шт.

40

3071849R2

SHAFT

and GEAR, reverse idler, 20 teeth

1шт.

On orders for Shaft and Gear 3071849R1 furnish "R2" with Circlip 515440R1 and Washer 3110755R1

1шт.

709448R92

SHAFT

PACKAGE shaft, trans. spline and drive gear

1шт.

3041092R1

SHIM

shaft, trans. spline, roller bearing retainer, .015

1шт.

3041093R1

SHIM shaft, trans. spline, roller bearing retainer, .015

1шт.

751075R91

BEARING

needle, opt.

2шт.

3043047R91

NEEDLE BEARING

BEARING needle, opt.

1шт.

3061827R92

COUPLING

SERVICE PACKAGE, coupling, comprising next 3 items

1шт.

3040868R3

SPLINED COUPLING

COUPLING

1шт.

751055R2

GEAR

1шт.

751058R2

GEAR

1шт.

3069326R92

PINION

SERVICE PACKAGE, sliding gear coupling and quill

1шт.
