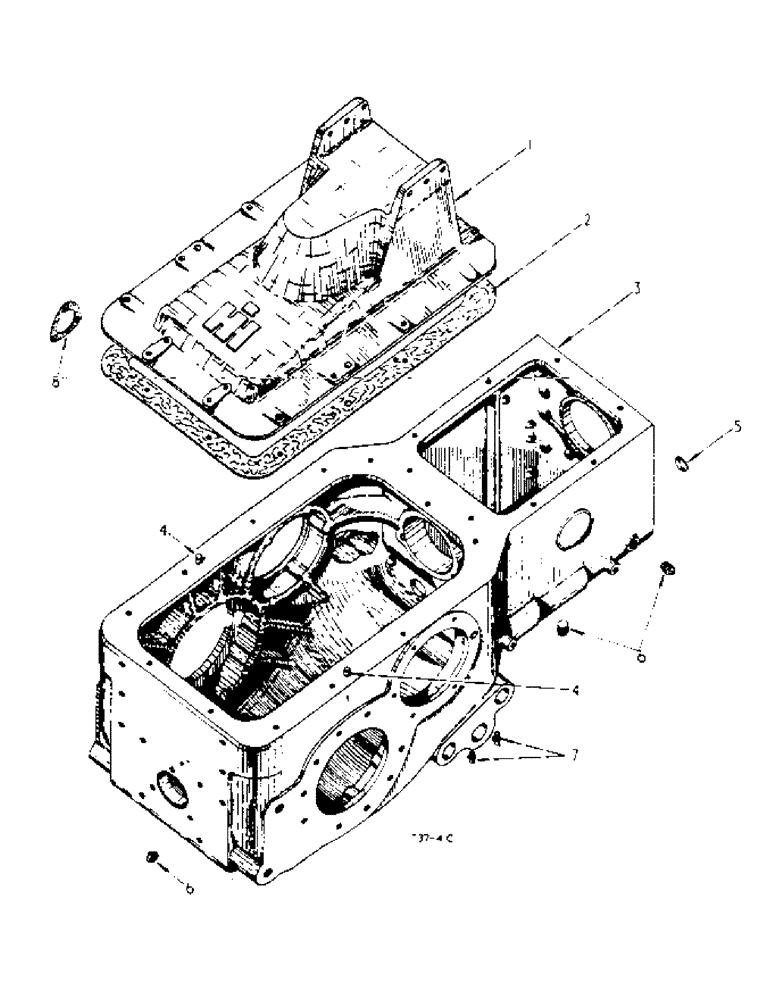

Запчасти Case IH 276 (4-24) - TRANSMISSION CASE (06) - POWER TRAIN

1

703968R21

COVER, trans. rear, cpte., w/two PLUGS 112428

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

703967R2

GASKET

trans. case cover, rear

1шт.

3

3072135R91

BOX

CASE, trans., comprising

1шт.

3072136R91

BUSHING

1шт.

711272R2

BUSHING

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR

2шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

172575

PLUG,Exp, 1 9/16"

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG

3шт.

104938

PLUG

10шт.

4

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

5

172575

PLUG,Exp, 1 9/16"

expansion

1шт.

6

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe, 1/2" sq-hd., (opt.)

3шт.

6

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe - Optional Sq Hd, 1/2"-14 NPTF

3шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR, angle, 1/8" PT - 90 degree (brake pedal shaft)

2шт.

8

711312R1

GASKET

P.T.O. shifter shaft hole cover plate

1шт.

711272R2

BUSHING

BUSH, reverse gear, rear

1шт.

3072136R1

BUSHING

BUSH, reverse gear, front

1шт.

711466R1

PLATE

cover P.T.O. shifter shaft hole

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

703972R1

PLATE

P.T.O. shaft opening cover

1шт.

178816

BOLT, hex-hd., 5/16" x 3/4"

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

104938

PLUG

cork, No. 2

10шт.

112428

PLUG

cork, No.0

2шт.

703971R1

GASKET

P.T.O. shaft opening cover plate

1шт.
