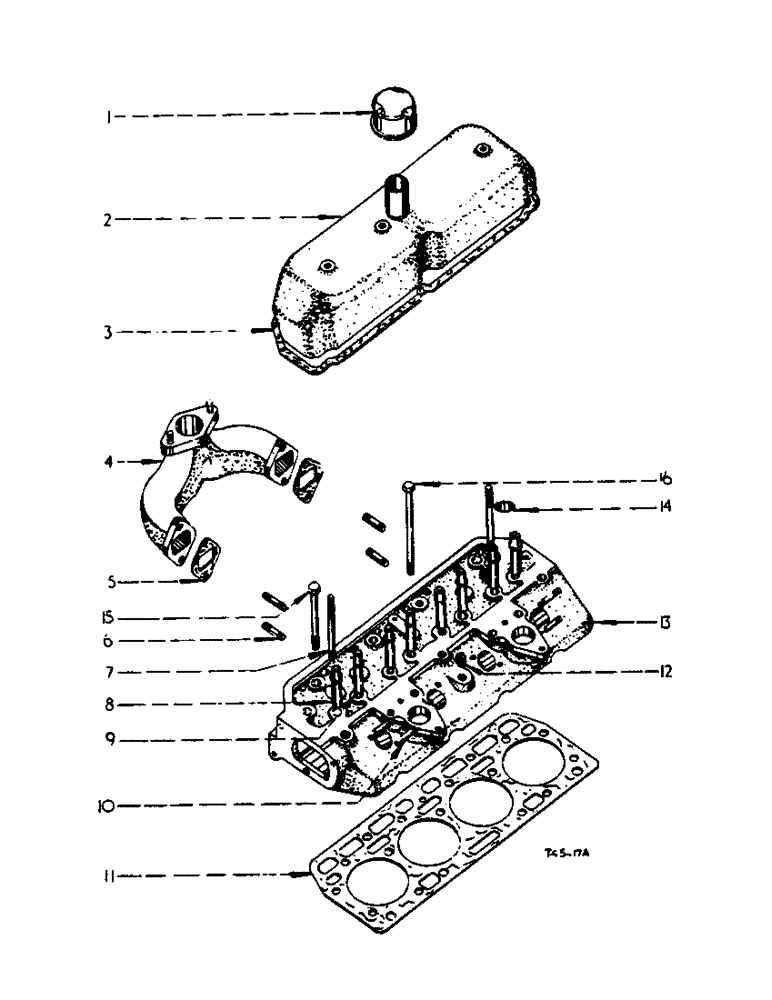

Запчасти Case IH 276 (1-03) - CYLINDER HEAD AND EXHAUST MANIFOLD (02) - ENGINE

1

3049701R91

FILTER, ELEMENT

BREATHER, cyl-hd., (see detail list)

1шт.

2

703894R21

COVER

valve housing, cpte.

1шт.

102635

NUT,3/8"-16, G5

2шт.

3

3069767R1

GASKET

valve cover

1шт.

4

704163R21

MANIFOLD

exhaust, cpte., w/two STUDS

1шт.

280136

NUT,3/8"-16, G8

Exhaust manifold stud 3/8"-16, G8

4шт.

703874R1

STUD

exhaust manifold

2шт.

5

704165R2

MANIFOLD GASKET

exhaust manifold

2шт.

6

703874R1

STUD

exhaust manifold

4шт.

7

703875R1

STUD

rocker shaft end bracket

2шт.

8

704456R2

VALVE GUIDE

GUIDE, valve stem, exhaust

4шт.

9

704455R1

VALVE GUIDE

GUIDE, vave stem intake

4шт.

10

703876R2

STUD

inj. nozzle holder

8шт.

11

703883R6

GASKET

cyl-hd.

1шт.

3049382R1

GROMMET

cyl-hd.

1шт.

12

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, Malleable iron, (Optional) Sq Hd, 1/2"-14 NPTF

1шт.

12

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe, sq-hd., cast iron 1/2" (optional)

1шт.

13

703872R98

CYLINDER HEAD

HEAD, cyl., assy., with VALVES, comprising

1шт.

704446R1

CUP

8шт.

3043824R12

CYLINDER HEAD

HEAD

1шт.

704443R1

WEDGE

LOCK

16шт.

710347R2

VALVE SPRING

SPRING

8шт.

704434R1

LOCK VALVE

VALVE

4шт.

3043825R1

STD EXHAUST VALVE

VALVE

4шт.

13

3043824R12

CYLINDER HEAD

HEAD, cyl., assy., less VALVES, comprising

1шт.

704455R1

VALVE GUIDE

GUIDE

4шт.

704456R2

VALVE GUIDE

GUIDE

4шт.

172558

PLUG,Exp, 1 1/4"

1шт.

703874R1

STUD

4шт.

703876R2

STUD

8шт.

703875R1

STUD

2шт.

14

172558

PLUG,Exp, 1 1/4"

expansion

1шт.

15

708331R1

BOLT

BOLT, cyl-hd., short

15шт.

16

708332R1

BOLT,Cyl Hd

cyl-hd., long

1шт.

631166D

WASHER, cyl-hd., bolt

16шт.

3043419R92

PACKAGE, service, exhaust manifold, comprising

1шт.

704613R1

GASKET

1шт.

704163R21

MANIFOLD

1шт.

280136

NUT,3/8"-16, G8

2шт.

704614R21

EXHAUST SYSTEM PIPE

PIPE

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
