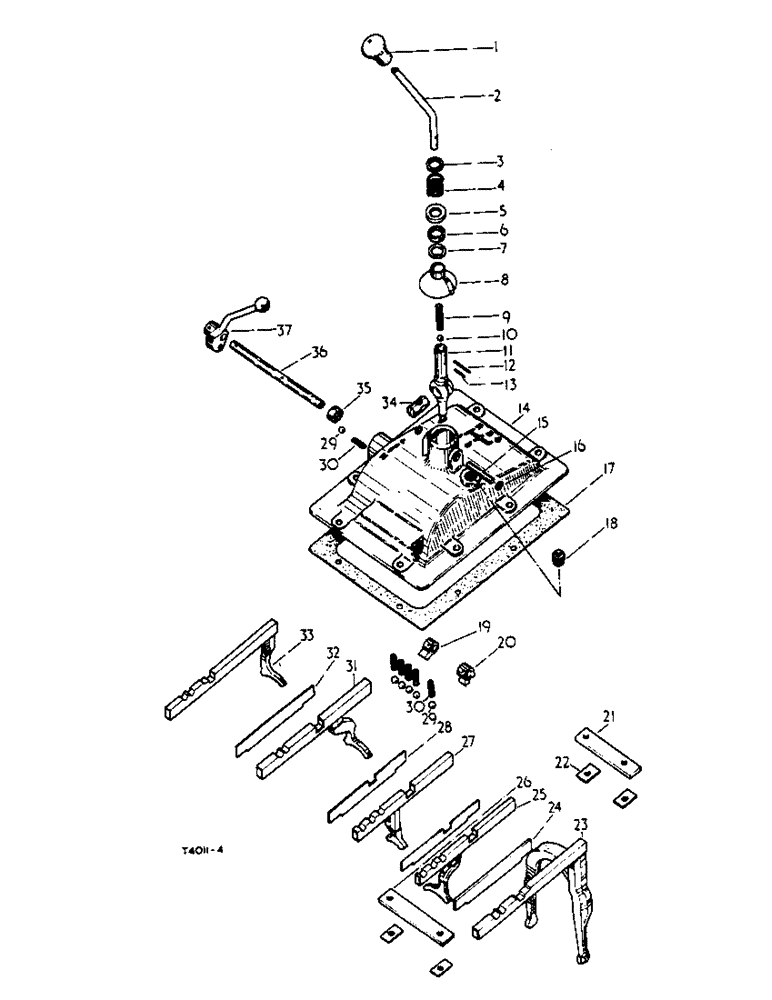

Запчасти Case IH 276 (4-23) - GEAR SHIFTER MECHANISM AND TRANSMISSION CASE COVER, FRONT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
53717DA
BUTTON
BALL, gear shifter lever
1шт.
2
NSS
NOT SOLD SEPARAT
LEVER, gear shifter, hand (order 3106909R92)
1шт.
454331R1
SNAP RING,#87, Ext
1шт.
3
710953R1
STOP
spring, gear shifter lever
1шт.
4
3106665R1
SPRING
gear shifter lever
1шт.
5
34880D
RETAINER
felt washer, gear shifter level
1шт.
6
34879D
WASHER
felt, gear shifter lever
1шт.
7
615190R1
WASHER
plain, 29/32" x 1-3/8" x 16 ga.
1шт.
8
712626R1
SHIELD
gear shifter swivel housing
1шт.
9
3068944R1
SPRING
gear shift ball
1шт.
10
16014R1
BALL
7/16" dia.
1шт.
11
NSS
NOT SOLD SEPARAT
END, gear shifter lever (order 3106909R92)
1шт.
12
263923R1
PIN, sltd., spring, 3/16" x 1-1/4"
1шт.
13
17054R1
LOCK PIN,3/16" x 7/8", Slotted
Pin, 3/16" x 7/8", Slotted
1шт.
14
3044047R3
COVER
trans, case front
1шт.
NLS
NO LONGER SERVICED
8шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
8шт.
15
3106664R1
SHAFT
swivel, gear shifter lever, small
1шт.
16
172529
PLUG
expansion, gear shifter lever swivel, small
2шт.
17
703969R1
GASKET
trans. case cover, front
1шт.
18
217-442
PLUG,3/4" - 14
pipe, 3/4" (opt.)
1шт.
18
NLS
NO LONGER SERVICED
pipe, 3/4" (opt.)
1шт.
19
751090R2
CAM
high low range shifter
1шт.
188943
DOWEL
PIN, groove, type 5, 3/16" x 1-1/8"
1шт.
20
751851R3
CAM
low speed gear shifter
1шт.
142508
DRIVE BUSHING
groove, type 5, 3/16" x 1-1/4"
1шт.
21
751085R1
BRACKET
gear shifter fork and guide
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
22
59473DA
LOCK
bolt, gear shifter rail guide
4шт.
23
3040867R31
SHIFTER FORK
FORK, low speed shifter, cpte.
1шт.
24
704039R2
GUIDE
gear shifter, R.H.
1шт.
25
751101R21
SHIFTER FORK
FORK, 1st and reverse speed gear shifter, cpte.
1шт.
26
3044010R1
GUIDE
BRACKET, gear shifter fork and guide
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
2шт.
27
751104R91
SHIFTER FORK
FORK, 2nd and 3rd speed gear shifter, cpte.
1шт.
28
704038R1
GUIDE
gear shifter rail, inner
2шт.
29
16013R1
BALL
steel, (13/16" dia. chrome grade 2)
6шт.
30
711283R1
SPRING
gear shifter poppet
6шт.
31
751100R11
SHIFTER FORK
FORK, 4th speed gear shifter, cpte.
1шт.
32
705926R1
GUIDE
gear shifter, rail, L.H.
1шт.
33
751094R41
SHIFTER FORK
FORK, high speed shifter, cpte.
1шт.
34
3106662R1
SHAFT
swivel, gear shifter lever, large
1шт.
35
751086R91
SEAL ASSY.
OIL SEAL, high low range shifter shaft (opt.)
1шт.
35
751087R91
SEAL
OIL SEAL, high low range shifter shaft (opt.)
1шт.
36
751088R2
SHAFT
shifter, high low range
1шт.
37
751089R2
HANDLE
shifter, high low range
1шт.
435-1820
GROOVED PIN,1/4" x 1 1/4", Type A
Pin, Grooved, 1/4" x 1 1/4", Type A
1шт.
3106909R92
LEVER
assy., gear shifter, comprising
1шт.
NSS
NOT SOLD SEPARAT
END
1шт.
NSS
NOT SOLD SEPARAT
LEVER
1шт.
17054R1
LOCK PIN,3/16" x 7/8", Slotted
Pin, 3/16" x 7/8", Slotted
1шт.
Выбрано товаров: 51
