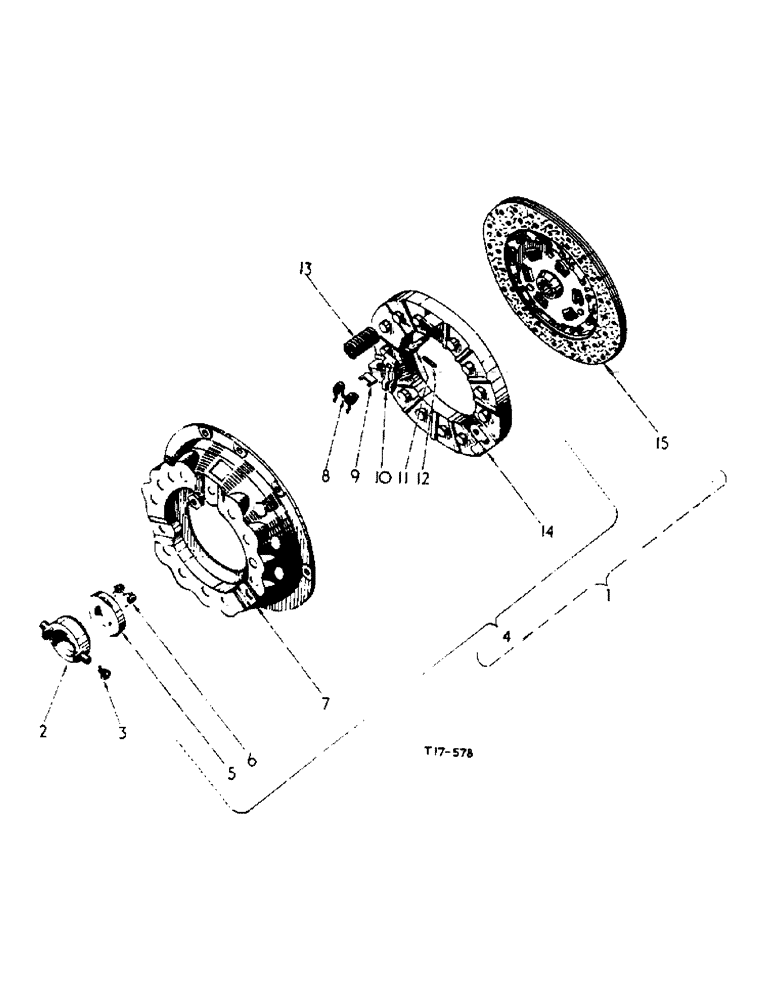

Запчасти Case IH 276 (4-22) - 10 INCH SPRING CENTER CLUTCH (06) - POWER TRAIN

1

751726R91

CLUTCH

10" spring centre, comprising

1шт.

705542R91

STOP

BEARING

1шт.

3040411R91

CLUTCH ASSEMBLY

COVER

1шт.

3040412R91

CLUTCH DISC

PLATE

1шт.

705543R1

RETAINER

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

2

705542R91

STOP

BEARING, and cup, assy.

1шт.

3

705543R1

RETAINER

spring

2шт.

4

3040411R91

CLUTCH ASSEMBLY

COVER, clutch, assy., comprising

1шт.

5

705538R1

PLATE

release lever

1шт.

6

705530R1

SPRING

RETAINER, release lever plate

3шт.

7

705537R1

COVER

1шт.

8

705531R1

SPRING

anti-rattle

3шт.

9

700915R1

STRUT

3шт.

10

705536R1

LEVER

release

3шт.

11

705533R1

BOLT

EYEBLOT

3шт.

705532R1

NUT

eyebolt

3шт.

12

700913R1

PIN

release lever

3шт.

13

700910R1

SPRING

thrust

12шт.

14

3040415R91

PLATE, pressure

1шт.

15

3040412R91

CLUTCH DISC

PLATE, clutch driven, assy.

1шт.

3040413R91

FACING

PACKAGE, clutch driven plate facing

1шт.

3068929R1

RIVET

1шт.
