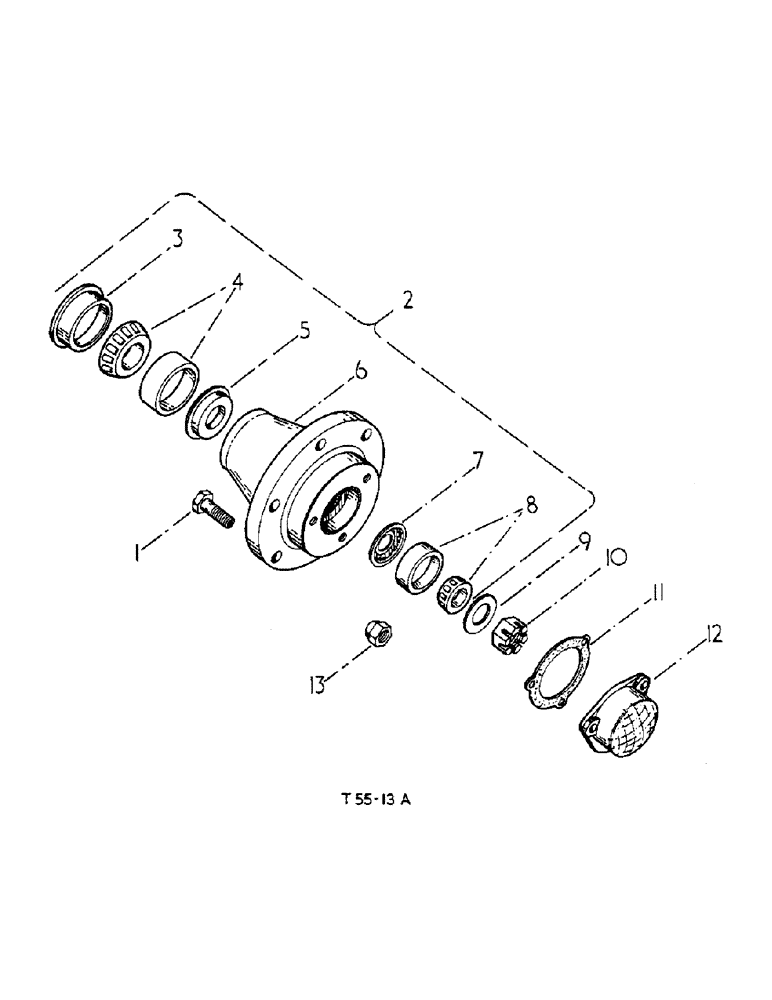

Запчасти Case IH 276 (4-18) - FRONT WHEEL HUB (06) - POWER TRAIN

1

3047573R1

WHEEL BOLT

BOLT, front wheel hub

12шт.

2

3043868R11

HUB

cpte., front wheel, comprising

2шт.

3043871R91

TAPERED BEARING

BEARING

1шт.

3043872R91

BEARING

1шт.

NSS

NOT SOLD SEPARAT

HUB

1шт.

48548D

WASHER

1шт.

3043869R1

RETAINER

1шт.

3043870R1

RETAINER

1шт.

3

48548D

WASHER

front felt washer

2шт.

4

3043871R91

TAPERED BEARING

BEARING, cpte., inner, front wheel

2шт.

5

3043869R91

RETAINER

inner, grease, front wheel bearing

2шт.

6

NSS

NOT SOLD SEPARAT

HUB, front wheel

2шт.

7

3043870R1

RETAINER

outer, grease, front wheel bearing

2шт.

8

3043872R91

BEARING

cpte., outer, front wheel

2шт.

9

700572R1

WASHER

front wheel outer bearing retainer

2шт.

10

427646

SLOTTED NUT,7/8"-14, G5

NUT, hex., sltd., 7/8" UNF

2шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

2шт.

11

703921R1

GASKET

front wheel hub cap

2шт.

12

703922R1

NO LONGER SERVICED

CAP, front wheel hub (opt.)

2шт.

12

704021R1

CAP

front wheel hub (opt.)

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

3047574R1

NUT

front wheel hub, bolt

12шт.
