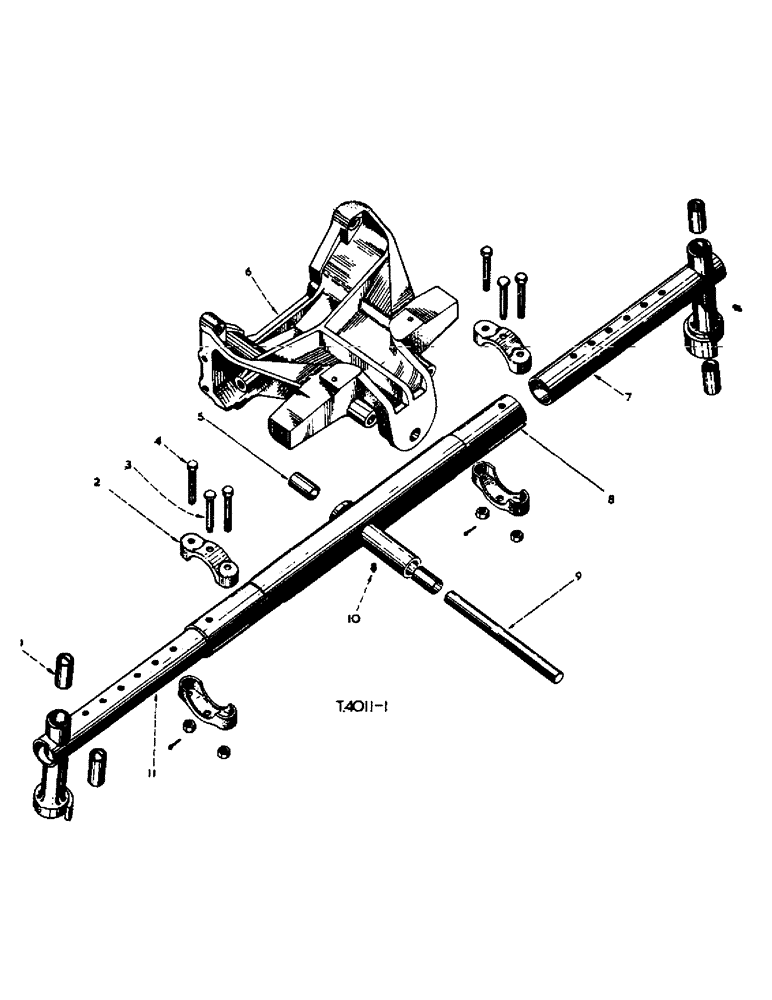

Запчасти Case IH 276 (4-15) - FRONT AXLE (06) - POWER TRAIN

1

40090D

BUSHING

BUSH, steering knuckle pivot pin

4шт.

2

704076R1

CLAMP

front axle

4шт.

3

704077R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

4

17723R1

BOLT,Hex, 5/8" - 11 x 4"

hex-hd., 5/8" x 4"

4шт.

102639

NUT,5/8"-11, G5

4шт.

5

3043856R1

BUSHING

BUSH, front axle pivot pin sleeve

2шт.

6

3043873R3

SUPPORT, front axle

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex-hd., 5/8" x 2-3/4"

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

hex-hd., 5/8" x 3"

1шт.

271569

SOCKET,Hex, 5/8" - 11 x 3 3/4", Gr 5

hex-hd., 5/8" x 3-3/4"

1шт.

7

704069R21

AXLE

EXTENSION, front axle L.H. cpte. w/LUBRICATOR 109461 and two BUSH 40090D

1шт.

8

3106749R11

AXLE, front, cpte., w/two BUSH 3043856R1 and LUBRICATOR 109461

1шт.

9

3043857R1

PIN

front axle pivot

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

hex-hd., 3/8" x 6-1/2"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

1шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

LUBRICATOR (opt.)

1шт.

11

704070R21

EXTENSION, front axle R.H. cpte., w/LUBRICATOR 109461 and two BUSH 40090D

1шт.

706151R2

SHIM

front axle pivot pin sleeve (.036)

1шт.

3044674R1

SHIM

front axle pivot pin sleeve (.028)

1шт.

706152R1

SHIM

front axle pivot pin sleeve (33 SWG)

1шт.
