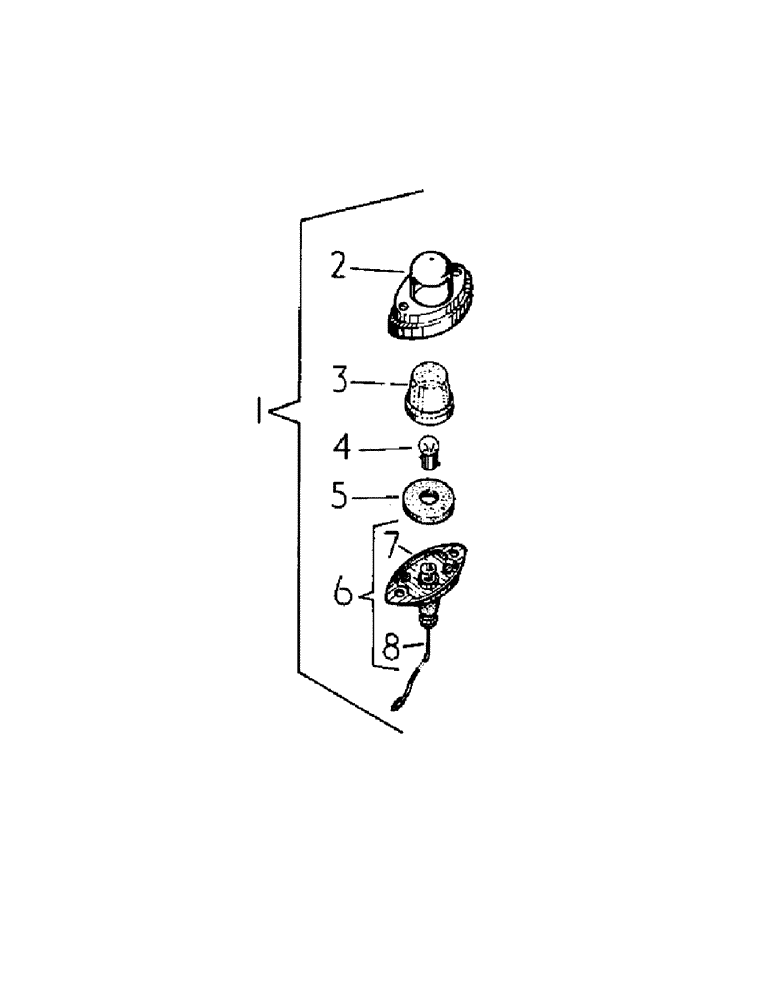

Запчасти Case IH 276 (8-02[1]) - PANEL LAMP (04) - ELECTRICAL SYSTEMS

ref

Part No.

English

1шт.

1

894623H1

INTERIOR LIGHT

LAMP,panel, cpte., (Federal Yellow), comprising

1шт.

3046394R91

BODY

1шт.

751467R1

BULB

1шт.

751466R1

LENS

1шт.

895567H1

SHIELD

1шт.

751468R1

WASHER

1шт.

2

895567H1

SHIELD, assy.

1шт.

3

751466R1

LENS

glass

1шт.

4

751467R1

BULB

(12 V - 6 W Single Pole)

1шт.

5

751468R1

WASHER, sealing

1шт.

6

3046394R91

BODY

& CONTACT, assy., w/BODY 751463R91 and CABLE 3046395R91

1шт.

7

751463R91

BODY, assy., w/Nuts and Washers

1шт.

8

3046395R91

CABLE & TERMINAL, assy.

1шт.
