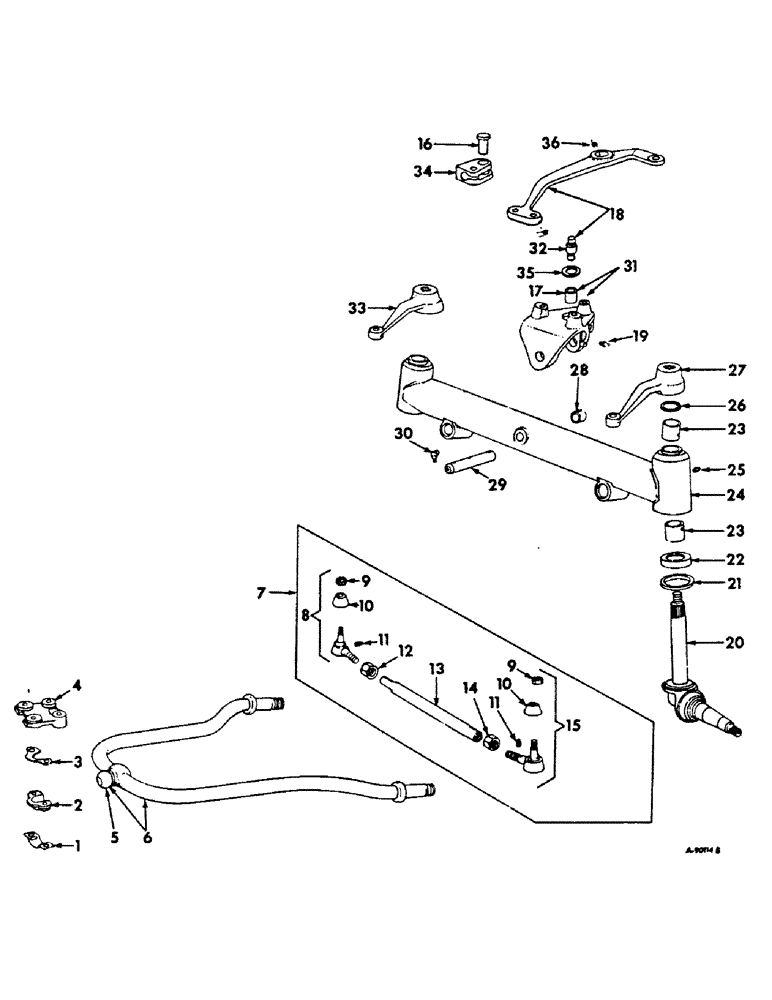

Запчасти Case IH 2756 (J-21) - STEERING MECHANISM, FRONT AXLE AND CONNECTIONS, INTERNATIONAL TRACTORS Steering Mechanism

1

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

2

379953R1

CAP

stay rod ball socket

1шт.

3

379954R1

SHIM

stay rod ball socket cap

1шт.

4

379952R1

SOCKET

stay rod ball

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

5/8-11 x 1-3/4 hex-hd cap

2шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 hex-hd cap

2шт.

5

10546D

BALL

stay rod

1шт.

6

379951R11

STAY ROD ASSY

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

7

384435R92

ROD

ASSY, tie

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.

8

384005R92

JOINT

END ASSY, tie rod, LH thread

2шт.

9

358901R1

SLOTTED NUT

tie rod end

4шт.

10

387280R2

COVER

dust

4шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

12

374062R1

JAM NUT

NUT, jam, RH thd

2шт.

13

384436R1

TUBE,0.948" ID, 1.187" OD, 14.562" Length

tie rod

2шт.

14

374061R1

JAM NUT

jam, LH thd

2шт.

15

384006R92

END

ASSY, tie rod, RH thread

2шт.

16

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

PIN, 3/4 x 2-1/2 clevis

1шт.

NLS

NO LONGER SERVICED

1/4 x 1-1/8 cotter

1шт.

17

399972R1

BUSHING,25.44mm ID x 28.59mm OD x 28.83mm L

pivot pin

1шт.

18

399973R92

ARM

ASSY, center steering

1шт.

19

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub, Serial Range: -8423

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPTF 1/8"-27 x .66 lg, Start Serial: 8424

1шт.

20

401768R92

STEERING KNUCKLE

KNUCKLE W/OIL SEAL, 370254R91 and shield, 48701D, steering

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

2шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex. jam

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

2шт.

21

55412D

WASHER

WASHER, steering knuckle pivot felt

2шт.

22

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

ASSY, steering knuckle pivot thrust

2шт.

23

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

24

384001R12

AXLE, w/four bushings, 358958R2 and two bushings, 379943R1, front

1шт.

25

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub, steering knuckle pivot pin

2шт.

26

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle retaining

2шт.

27

384017R3

ARM

RH steering knuckle

1шт.

28

379943R1

BUSHING,38.11mm ID x 41.41mm OD x 38.1mm L

front axle pivot pin

2шт.

29

379941R1

AXLE PIN,38.1mm OD x 219.2mm L

PIN, front axle pivot

1шт.

30

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 65 deg angle drive type lub

1шт.

31

399976R92

BRACKET

BOLSTER ASSY, lower

1шт.

U5360

AXLE PIN

PIN, 3/8 x 6-1/8 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

20295R1

HEX SOC SCREW,5/8"-11 x 3"

SCREW, 5/8-11 x 3 hex-soc-hd cap

1шт.

20296R1

HEX SOC SCREW,5/8"-11 x 2"

5/8-11 x 2 hex-soc-hd cap

2шт.

32

399974R1

SHAFT

center arm pivot

1шт.

16006R1

BALL

3/16 cr-stl

1шт.

33

384016R3

ARM

LH steering knuckle

1шт.

34

389052R1

CLEVIS COUPLING

CLEVIS, cylinder end

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

1шт.

35

392991R1

SHIM

center arm pivot pin, .020

1шт.

35

392990R1

SHIM

center arm pivot pin, .010

1шт.

36

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub, Serial Range: -8423

1шт.

36

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPTF 1/8"-27 x .66 lg, Start Serial: 8424

1шт.
