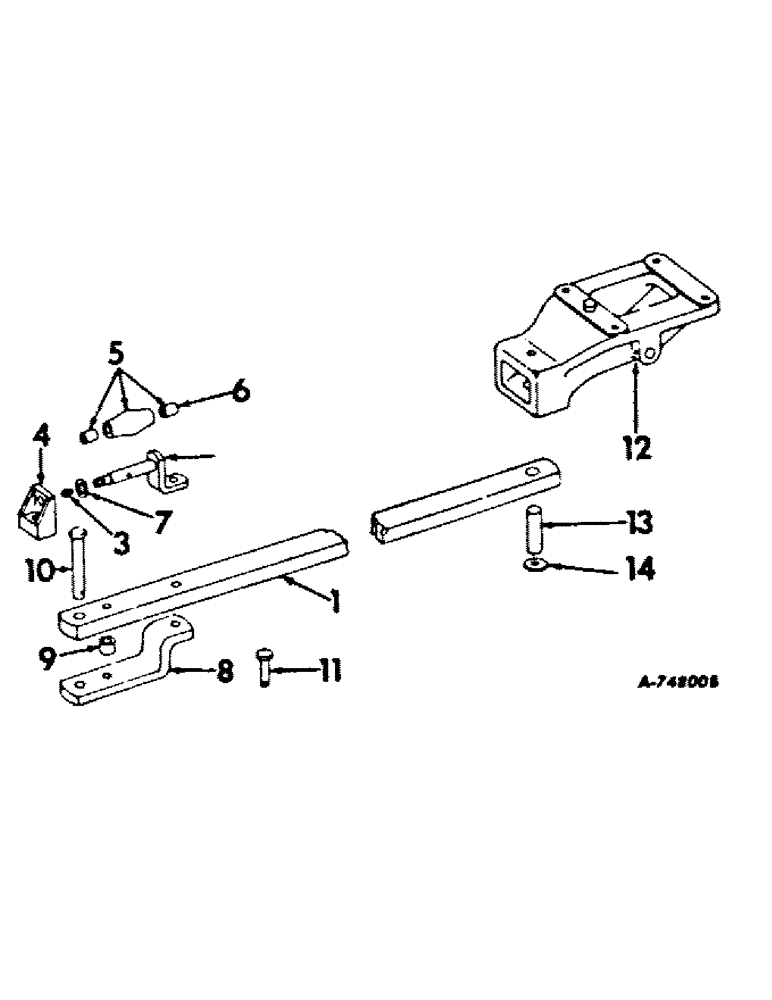

Запчасти Case IH 2756 (K-03) - DRAWBARS AND HITCHES, SWINGING DRAWBAR, TRACTORS WITH VERTICALLY ADJUSTABLE DRAWBARS Drawbars & Hitches

*

ATTACHMENT, swinging drawbar, 383055R92, consists of all parts marked unit A

1шт.

*

ATTACHMENT, heavy duty swinging drawbar w/non adjustable fixed drawbar, 400279R93, composed of all parts marked unit B and ref nos 1 through 8 with attaching hardware listed under vertically adjustable drawbar

1шт.

1

383056R1

DRAWBAR, swinging, unit A

1шт.

Ref #1 (P/N 383056R1) - 1.25" thick

1шт.

1

404485R1

DRAWBAR, swinging, unit B

1шт.

Ref #1 (P/N 404485R1) - 1.50" thick

1шт.

2

365688R92

SHAFT

ASSY, swinging drawbar roller, unit A

1шт.

2

391873R11

SHAFT

ASSY, swinging drawbar roller, unit B

1шт.

*

220081

NUT

3/4-10 hex.

2шт.

*

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

SCREW, 3/4-10 x 3-3/4 hex-hd cap

1шт.

*

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

*

584253R1

WASHER

25/32 x 1-3/4 x 3/16

1шт.

3

NLS

NO LONGER SERVICED

FITTING, 1/8-27 str lub, units A & B

1шт.

4

365691R1

SUPPORT

swinging drawbar shaft rear, unit A

1шт.

*

271623

BOLT,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 hex-hd cap

1шт.

*

584253R1

WASHER

25/32 x 1-3/4 x 3/16

1шт.

4

391889R1

SUPPORT ASSY.

SUPPORT, swinging drawbar shaft rear, unit B

1шт.

*

17269R1

SCREW,Hex, 3/4" - 10 x 6 1/4", Gr 5

3/4-10 x 6-1/4 hex-hd cap

1шт.

5

365692R31

ROLLER

ASSY, swinging drawbar, unit A

1шт.

5

400299R11

ROLLER

ASSY, swinging drawbar, unit B

1шт.

6

356564R1

BUSHING

swinging drawbar roller, 2 for unit A

1шт.

6

391869R1

BUSHING

swinging drawbar roller, 2 for unit B

1шт.

7

358002R1

WASHER

swinging drawbar roller shaft, 2 for unit A

1шт.

7

391870R1

WASHER

swinging drawbar roller shaft, 2 for unit B

1шт.

8

58744DA

STRAP, swinging drawbar guide, unit A

1шт.

8

400296R1

STRAP, swinging drawbar guide, unit B

1шт.

9

58745D

SPACER

swinging drawbar guide strap, unit A

1шт.

9

368514R1

SPACER

swinging drawbar guide strap, unit B

1шт.

10

383140R1

PIN

swinging drawbar clevis, unit A

1шт.

10

400300R1

CLEVIS PIN

PIN, swinging drawbar clevis, unit B

1шт.

*

520175R11

AXLE PIN

PIN ASSY, quick attachable cot.

1шт.

11

523996R1

PIN, 3/4 x 2-3/4 headed, 2 for unit A, drawbar support

1шт.

11

P14608

AXLE PIN

PIN, 3/4 x 2-3/4 headed, 2 for unit B, drawbar support

1шт.

*

520175R1

CLIP

PIN, quick attachable cot.

2шт.

12

381707R21

SUPPORT

ASSY, swinging drawbar pivot

1шт.

12

400288R2

SUPPORT ASSY.

SUPPORT ASSY, swinging drawbar pivot, tractors w/heavy duty swinging drawbar

1шт.

*

20324R1

DOWEL,1" x 2"

PIN, 1 x 2 dowel

1шт.

*

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

13

57654D

PIVOT PIN

PIN, drawbar pivot, unit A 1-1/8 in. dia x 3/7/16 in. long

1шт.

13

527487R1

PIN

ASSY, drawbar pivot, unit B, 1-3/8 in. dia x 3.55 in. long, used w/support, 400288R1

1шт.

13

536527R1

PIVOT PIN

PIN ASSY, drawbar pivot, unit B, 1-3/8 in. dia x 4 in. long, used w/support, 400288R2

1шт.

*

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

*

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

*

Q3486

WASHER

1-13/32 x 2-1/4 x .0598, swinging drawbar shim, unit B

1шт.

14

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, drawbar pivot pin lock, unit A

1шт.

*

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

*

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
