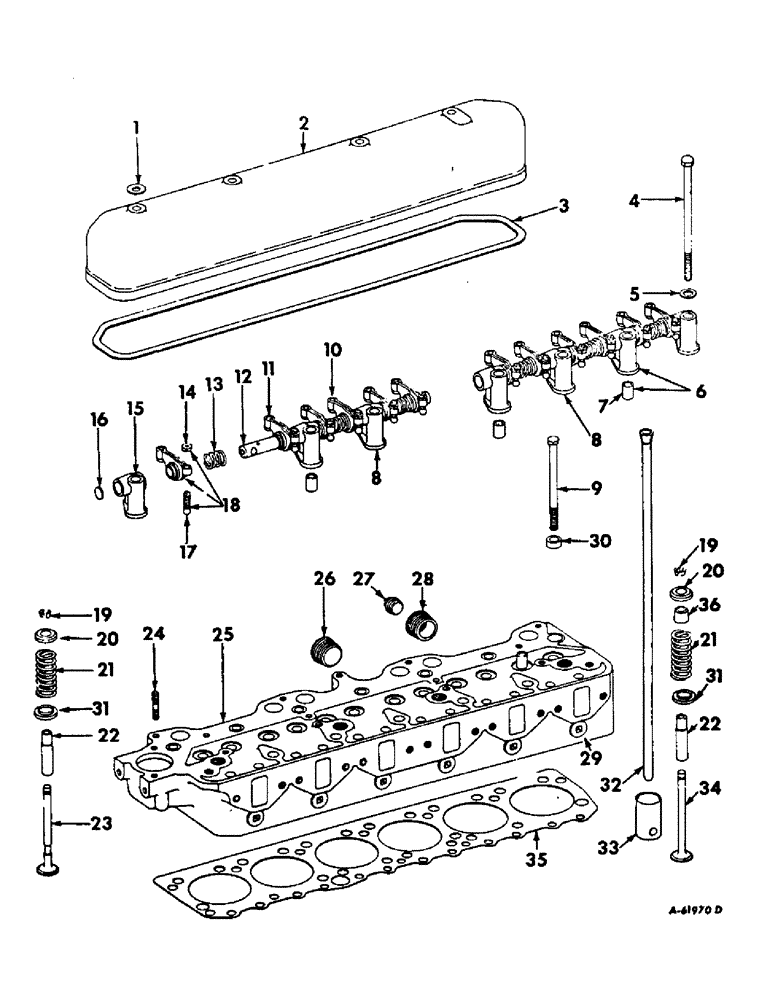

Запчасти Case IH 2706 (D-11) - DIESEL ENGINE, CYLINDER HEAD AND RELATED PARTS (01) - ENGINE

1

116103

COPPER WASHER,10.31mm ID x 20.63mm OD x 1.65mm Thk

WASHER, valve cover bolt

4шт.

2

278307R1

COVER

valve

1шт.

17790R1

BOLT, 3/8-16 x 4-3/4 hex-hd.

4шт.

3

278308R1

GASKET

valve cover

1шт.

4

320097R1

BOLT (SPREADER),1/2" - 13 x 8"

BOLT, cylinder head

9шт.

315701R1

GUIDE

SPACER, cylinder head bolt

2шт.

5

345409R1

WASHER,13.84mm ID x 25.4mm OD x 2.34mm Thk

cylinder head bolt

7шт.

6

76860R11

BRACKET ASSY, valve lever shaft, nos. 2, 4 and 6

3шт.

7

69500R1

SLEEVE

DOWEL, valve lever shaft

3шт.

8

76858R1

BRACKET

valve lever shaft, nos. 3 and 5

2шт.

9

278305R1

BOLT,Hex, 1/2" - 13 x 6.03"

cylinder head-short

5шт.

10

278304R21

ARM

LEVER ASSY, exhaust valve RH

3шт.

11

323727R91

ROCKER

LEVER ASSY, intake valve

6шт.

12

318020R11

SHAFT

W/PLUG, 169071R1, valve lever

2шт.

13

35619H

SPRING

valve lever

6шт.

14

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

12шт.

15

76859R1

BRACKET

valve lever shaft, nos. 1 and 7

2шт.

16

169071R1

PLUG

valve lever shaft

2шт.

17

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

12шт.

18

278303R21

ARM

LEVER ASSY, exhaust valve LH

3шт.

19

41339D

KEY

valve spring retainer

24шт.

20

151167R3

SEAT

RETAINER, valve spring

12шт.

21

315744R1

SPRING

intake and exhaust valve

12шт.

22

278300R1

PILOT VALVE

GUIDE, valve

12шт.

23

349381R1

STD EXHAUST VALVE

VALVE, exhaust

6шт.

24

303473R1

NUT

STUD, exhaust manifold

10шт.

25

323771R31

HEAD (CYLINDER)

HEAD ASSY, cylinder, composed of (1) bushing 142765, (12) guide 278300R1, (1) head 323771R3 (NSS), (3) plug 318300R1, (1) plug 444588, (5) plug 264057R1, (11) plug 9409949, (6) sleeve 278369R1 (NSS), (10) stud 303473R1

1шт.

26

264057R1

PLUG

1-1/4 ctsk-hdls pipe

5шт.

27

444588

PLUG,Sq Hd, 1/2"-14 NPTF

1/2-14 auto sq-hd. pipe

1шт.

28

NLS

NO LONGER SERVICED

BUSHING, 1-1/4 x 1/2 reducing pipe

1шт.

29

9409949

DRAIN PLUG

3/4 sq-soc pipe

11шт.

30

278306R1

WASHER

cylinder head bolt

5шт.

31

317935R91

SEAT

ROTOCOIL, intake and exhaust valve

12шт.

32

164436R91

PUSH ROD

ROD, valve push

12шт.

33

75524R3

TAPPET

valve

12шт.

34

323774R1

VALVE

intake

6шт.

35

601509C1

GASKET

cylinder head

1шт.

36

612107C1

BAFFLE

DEFLECTOR, intake and exhaust valve, stem oil

12шт.
