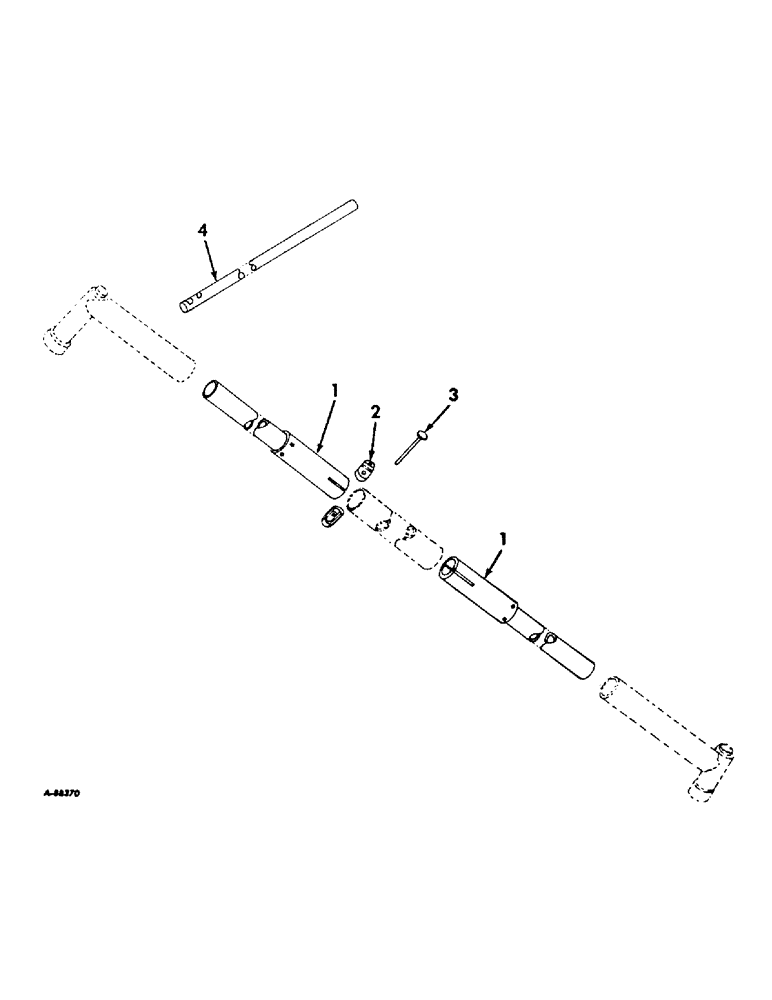

Запчасти Case IH 2706 (J-18) - STEERING MECHANISM, ADJUSTABLE WIDE TREAD FRONT AXLE EXTENSION, FARMALL TRACTORS Steering Mechanism

395284R91

PARTS ACCESSORY, adjustable wide front axle, 114 in. to 120 in., for tractors equipped with 56 in. to 80 in. adjustable wide front axle

1шт.

1

395281R1

EXTENSION ASSY, front axle inner

1шт.

2

350556R1

CLAMP

front axle

4шт.

20673R1

BOLT,Hex, 3/4" - 16 x 4 1/4", Gr 8

3/4-16 x 4-1/4 hex-hd.

4шт.

218197

NUT,3/4"-16, G5

3/4-16 hex

4шт.

3

350557R1

PIN

front axle clamp

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

4

395285R1

TUBE,0.948" ID, 1.19" OD

tie rod extension

2шт.
