Запчасти Case IH 2706 (J-16) - STEERING MECHANISM, ADJUSTABLE WIDE TREAD FRONT AXLE AND CONNECTIONS, INTERNATIONAL TRACTORS Steering Mechanism

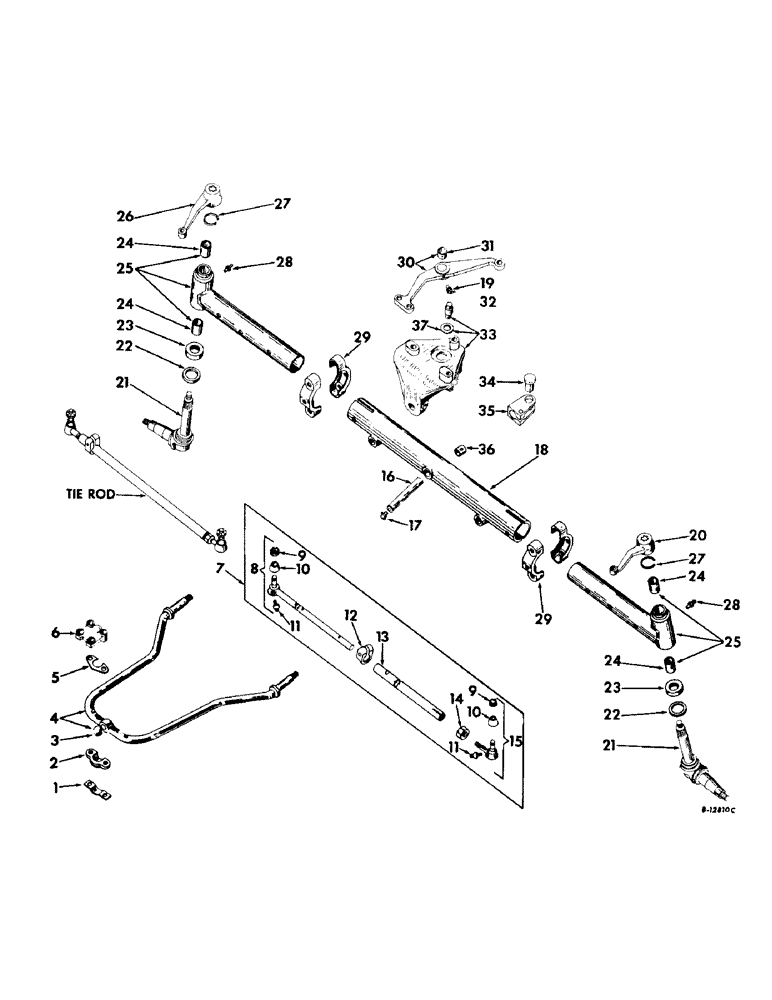

Схема запчастей Case IH 2706 - (J-16) - STEERING MECHANISM, ADJUSTABLE WIDE TREAD FRONT AXLE AND CONNECTIONS, INTERNATIONAL TRACTORS Steering Mechanism
11
21
33
15
9
24
10
31
27
25
6
34
28
3
17
8
12
1
10
35
29
36
21
29
13
30
22
11
25
22
19
4
16
14
28
20
5
9
32
23
24
2
37
26
24
23
27
7
18
24

Артикул

Название

Примечание

Количество

1

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock

1шт.

2

379953R1

CAP

stay rod ball socket

1шт.

3

10546D

BALL

stay rod

1шт.

4

380005R11

STAY ROD ASSY, tractors w/serial no. 5273 and below

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex, jam

2шт.

4

379951R11

STAY ROD ASSY, tractors w/serial no. 5274 and above

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex, jam

2шт.

5

379954R1

SHIM

stay rod ball socket cap

1шт.

6

380007R1

SOCKET

stay rod ball

1шт.

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 1-7/8 hex-hd. cap

2шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 hex-hd. cap, tractors w/serial no. 5273 and below, Course Threads

2шт.

6

379952R1

SOCKET

stay rod ball, tractors w/serial no. 5274 and above

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 hex-hd. cap

2шт.

7

384432R91

ROD ASSY, tie

2шт.

8

384434R91

END

ROD ASSY, tie, LH

1шт.

9

374701R1

NUT

tie rod end, optional with 374548R1

2шт.

9

374548R1

SLOTTED NUT

tie rod end, optional with 374701R1

2шт.

10

387280R1

SEAL

COVER, dust

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

12

359986R1

CLAMP

tie rod

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

1шт.

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

SCREW, 1/2-20 x 2 hex-hd. cap

1шт.

13

384433R1

TUBE,0.957" ID, 1.187" OD, 17.125" Length

tie rod

1шт.

14

374062R1

JAM NUT

NUT, jam

1шт.

15

384006R91

END

ASSY, tie rod, RH thread

1шт.

16

379941R1

AXLE PIN,38.1mm OD x 219.2mm L

PIN, front axle pivot

1шт.

17

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, 1/4 65 deg. angle drive type lub.

1шт.

18

380004R21

AXLE ASSY, front

1шт.

19

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg. angle drive type lub.

1шт.

20

384017R1

ARM

RH steering knuckle

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex, jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga.

1шт.

21

401768R91

KNUCKLE

ASSY, steering, also order ring 146008R1, will work for 371343R92

1шт.

22

374387R1

WASHER

steering knuckle pivot felt

2шт.

23

357349R91

THRUST BEARING,42.53mm ID x 81.74mm OD x 19.18mm W

ASSY, steering knuckle pivot thrust

2шт.

24

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

steering knuckle pivot pin

4шт.

25

383995R11

EXTENSION ASSY, front axle

2шт.

26

384016R1

STEERING ARM

ARM, LH steering knuckle

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex, jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga.

1шт.

27

361850R1

RING

steering knuckle retaining, used w/knuckle 371343R92

2шт.

27

146008R1

SNAP RING,M41.15 x 2.46mm Thk, Ext

RING, steering knuckle 401765R91

2шт.

28

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str. lub.

2шт.

29

383994R1

CLAMP, front axle

4шт.

102639

NUT,5/8"-11, G5

4шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

2шт.

631191R1

BOLT,Hex, 5/8" - 11 x 5", Gr 8

SCREW, 5/8-11 x 5 hex-hd. cap

4шт.

37419R1

SCREW, 3/4-10 x 6-3/4 hex-hd. cap

2шт.

30

379946R21

ARM ASSY, center steering, serial no. 5871 and below, furnish steering arm service package

1шт.

30

399973R91

STEERING ARM

ARM ASSY, center steering, serial no. 5872 and above

1шт.

16006R1

BALL

3/16 cr-stl

1шт.

31

379947R1

BUSHING,38.14mm ID x 41.27mm OD x 50.42mm L

center arm pivot, serial no. 5871 and below

1шт.

31

399972R1

BUSHING,25.44mm ID x 28.59mm OD x 28.83mm L

center arm pivot, serial no. 5872 and above

1шт.

32

379948R2

PIN, center arm pivot, serial no. 5871 and below, furnish steering arm service package

1шт.

32

399974R1

SHAFT

PIN, center arm pivot, serial no. 5872 and above

1шт.

33

379940R41

BOLSTER ASSY, lower, serial no. 5871 and below, furnish lower bolster service package

1шт.

33

399976R91

NO LONGER SERVICED

BOLSTER ASSY, lower, serial no. 5872 and above

1шт.

20296R1

HEX SOC SCREW,5/8"-11 x 2"

5/8-11 x 2 hex-soc-hd. cap

2шт.

20295R1

HEX SOC SCREW,5/8"-11 x 3"

SCREW, 5/8-11 x 3 hex-soc-hd. cap

1шт.

U5360

AXLE PIN

PIN, 3/8 x 6-1/2 headed

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub, lower bolster

1шт.

34

522246R1

HEADED PIN,19.05mm OD x 63.5mm L

PIN, 3/4 x 2-1/2 clevis

1шт.

NLS

NO LONGER SERVICED

1/4 x 1-1/8 cotter

1шт.

35

379949R1

CLEVIS, cylinder end, Serial Range: 501-2999

1шт.

35

389052R1

CLEVIS COUPLING

CLEVIS, cylinder end, 3000 up

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd. cap

1шт.

36

379943R1

BUSHING,38.11mm ID x 41.41mm OD x 38.1mm L

front axle pivot pin

2шт.

37

392991R1

SHIM

center arm pivot pin, .020

1шт.

37

392990R1

SHIM

center arm pivot pin, .010

1шт.

399985R91

PACKAGE, lower bolster service, consists of (1) bolster 399976R91, (2) bushing 399972R1, (1) arm 399973R91, (1) fitting 273359, (1) fitting 443566, (1) shaft 399974R1, (1) ball 16006R1, (3) stop 383908R1, (2) stop 401505R1

1шт.

399704R91

PACKAGE

steering arm service, consists of (2) bushing 399972R1, (1) arm 399973R91, (1) shaft 399974R1, (1) ball 16066R1, (1) fitting 273359, (2) stop 383908R1, (2) stop 401505R1

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

Выбрано товаров: 74
