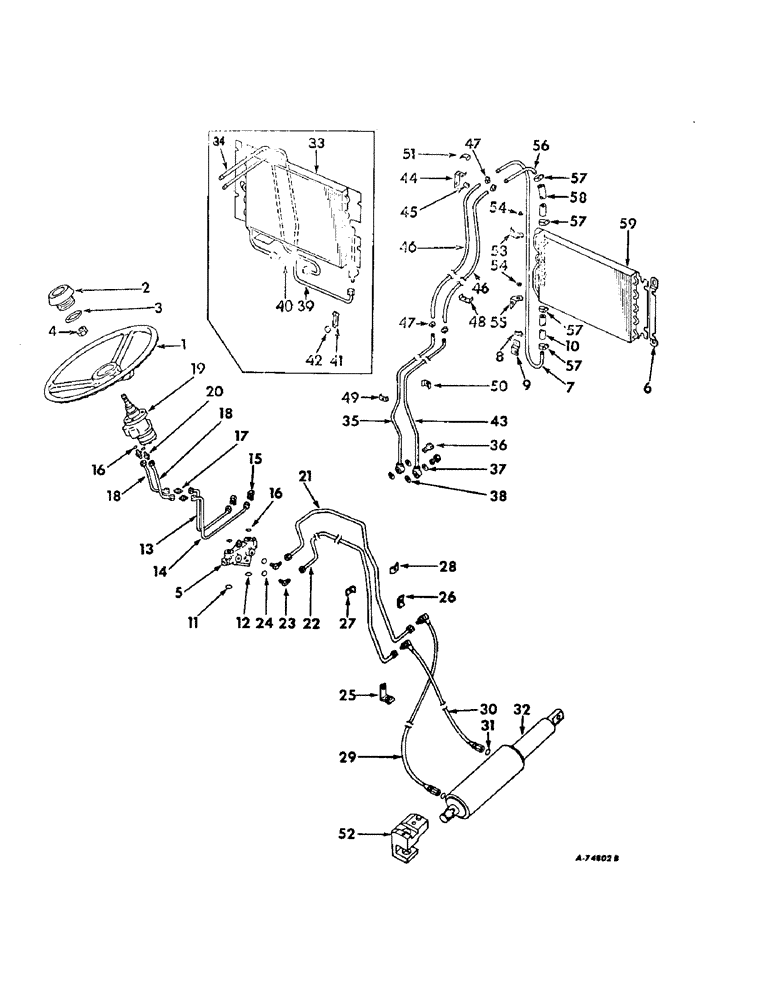

Запчасти Case IH 2706 (J-05) - STEERING MECHANISM, POWER STEERING, INTERNATIONAL TRACTORS Steering Mechanism

1

385156R1

WHEEL (STEERING)

WHEEL, 16 in. dia. steering

1шт.

1

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

2

378395R1

CAP

steering wheel

1шт.

3

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-3/16 x 3 x 3/32, steering wheel cap

1шт.

4

F19646

LOCK NUT,13/16"-20, Thin

NUT, steering wheel

1шт.

5

396726R91

LOCK VALVE

VALVE ASSY, power steering pilot, will work for valve, 385131R92, for components see list of parts under details of power steering pilot valve

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

6

387326R1

SUPPORT, oil cooler, 2350 up

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

2шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 twelve-pt cap

2шт.

Q397

WASHER

11/32 x 3/4 x .06

1шт.

7

387334R1

PIPE, oil cooler outlet front, 2350 up

1шт.

8

341670R1

CLAMP, oil cooler outlet pipe, 2350 up

1шт.

109084

NUT,1/4"-20, G5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

SCREW, 3/8-16 x 3/4 hex-hd. cap

1шт.

9

387338R1

SUPPORT, oil cooler outlet pipe clamp, 2350 up

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

10

387329R1

HOSE, oil cooler pipe

1шт.

11

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32, pressure port

1шт.

12

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, return port

1шт.

13

382576R11

TUBE

ASSY, valve to hand pump left port lower section

1шт.

14

382577R11

TUBE

ASSY, valve to hand pump right port, lower section

1шт.

15

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg. hyd. flared tube, valve to hand pump tube

2шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

4шт.

17

9403216

HYD CONNECTOR,3/4"-16, 37 Degree

UNION, 3/4-16 37 deg C-Z, valve to hand pump tube

2шт.

18

382576R11

TUBE

ASSY, valve to hand pump-upper section

2шт.

19

378578R93

HYDRAULIC STEERING

PUMP ASSY, power steering hand, for components see list of parts under details of hydrastatic power steering hand pump

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

4шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

20

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg. hyd. flared, upper tube to hand pump

2шт.

21

384567R11

TUBE ASSY, valve to front cylinder port, carbureted engine tractors, diesel engine tractors w/serial no. 5273 & below

1шт.

21

396394R1

TUBE ASSY, valve to front cylinder port, diesel engine tractors w/serial no. 5274 & above

1шт.

22

384568R11

TUBE ASSY, valve to rear cylinder port, carbureted engine tractors, diesel engine tractors w/serial no. 5273 & below

1шт.

22

396396R1

TUBE ASSY, valve to rear cylinder port, diesel engine tractors w/serial no. 5274 & above

1шт.

23

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg. hyd. flared tube adj. str. thd. 90 deg.

2шт.

24

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk.

2шт.

25

384585R11

SUPPORT ASSY, pressure tube, carbureted engine tractors, diesel engine tractors w/serial no. 5273 & below

1шт.

25

396676R1

SUPPORT ASSY, pressure tube, diesel engine tractors w/serial no. 5274 & above

1шт.

26

381394R1

CLAMP

pressure tube

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd. cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

384891R11

CLAMP

STRIP ASSY, hyd tube clamp, carbureted engine tractors

1шт.

179794

BOLT,Hex, 1/4" - 20 x 11/16"

SCREW, 1/4-20 x 11/6 hex-hd. cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

28

384891R1

CLAMP

STRIP, hyd tubes clamp, carbureted engine tractors

1шт.

29

384483R91

HOSE

ASSY, hydraulic cylinder, left turn, diesel engine tractors w/serial no. 5274 and above

1шт.

29

384481R91

HOSE ASSY.

HOSE ASSY, hydraulic cylinder, left turn, carbureted engine tractors

1шт.

29

397704R1

FLEXIBLE HOSE

HOSE ASSY, hydraulic cylinder left turn, diesel engine tractors w/serial no. 5274 and above

1шт.

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg. hyd. flared tube adj str-thd 90 deg.

1шт.

30

379054R91

HOSE

ASSY, hydraulic cylinder, right turn, diesel engine tractors w/serial no. 5273 and below

1шт.

30

384482R91

HOSE ASSY.

HOSE ASSY, hydraulic cylinder, right turn, carbureted engine tractors, diesel engine tractors w/serial no. 5274 and above

1шт.

31

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hydraulic cylinder hose

2шт.

32

395068R91

CYLINDER BLOCK

CYLINDER ASSY, power steering, for components see list of parts under details of power steering cylinder

1шт.

33

382640R91

COOLER ASSY, oil, Serial Range: 501-2349

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 twelve point counter bore

4шт.

20285H

WASHER

13/32 x 3/4 x 11 ga.

4шт.

34

384575R11

PIPE ASSY, oil cooler outlet front, Serial Range: 501-2349

1шт.

35

385060R11

PIPE ASSY, oil cooler inlet rear, carbureted engine tractors 0.5" OD, 21.05, 8.75" Length

1шт.

35

384854R11

PIPE ASSY, oil cooler inlet rear, diesel engine tractors

1шт.

36

384577R1

NIPPLE, LUBE

PLUG, inlet union

2шт.

37

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32, inlet union

2шт.

38

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 x 1/16, inlet union plug

2шт.

39

384573R11

PIPE ASSY, oil cooler inlet front, Serial Range: 501-2349

1шт.

40

384587R1

UNION, hyd. 37 deg flared tube long, Serial Range: 501-2349

1шт.

41

385022R1

CLAMP, oil cooler inlet front pipe support, Serial Range: 501-2349

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

42

SA2172

SPACER,3/8" Pipe x 1/2"

inlet front pipe support, 501 to 2349

1шт.

43

385061R11

PIPE ASSY, oil cooler outlet rear, carbureted engine tractors

1шт.

43

384853R11

PIPE ASSY, oil cooler outlet rear, diesel engine tractors

1шт.

44

384581R1

BRACKET, oil cooler pipes

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

45

351549R1

WASHER

SPACER, oil cooler tube support

1шт.

46

385053R1

HOSE, oil cooler, diesel engine tractors w/serial no. 5273 & below

1шт.

46

384582R1

HOSE, oil cooler, carbureted engine tractors, diesel engine tractors w/serial no. 5274 & above

1шт.

47

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler hose

4шт.

48

384586R1

GUIDE

oil cooler hose

1шт.

179811

SHAFT

SCREW, 5/16-18 x 7/16 hex-hd. cap

1шт.

49

384855R11

CLAMP

ASSY, oil cooler rear pipes

1шт.

50

384855R1

CLAMP

oil cooler rear pipes

1шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd. cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

51

384855R1

CLAMP

oil cooler pipes

1шт.

109084

NUT,1/4"-20, G5

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

52

380027R21

CLEVIS COUPLING

CLEVIS ASSY, cyl mounting

1шт.

215722

SPARE PART

1/2-13 x 5-3/4 hex-hd. cap

2шт.

PO22079

PIN

3/4 x 3-3/8 clevis

1шт.

NLS

NO LONGER SERVICED

1/4 x 1-1/8 cotter

1шт.

53

387324R2

BRACKET, oil cooler mounting upper 2350 up

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 twelve-pt cap

1шт.

54

387327R1

BUSHING

oil cooler pivot, 2350 up

2шт.

55

387325R2

BRACKET, oil cooler mounting upper, 2350 up

1шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 twelve-pt cap

1шт.

56

387328R1

PIPE, oil cooler inlet front, 2350 up

1шт.

57

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, oil cooler hose

4шт.

58

387329R1

HOSE, oil cooler pipe, 2350 up

1шт.

59

387322R92

COOLER ASSY.

COOLER ASSY, oil, hinged type, 2350 up

1шт.
