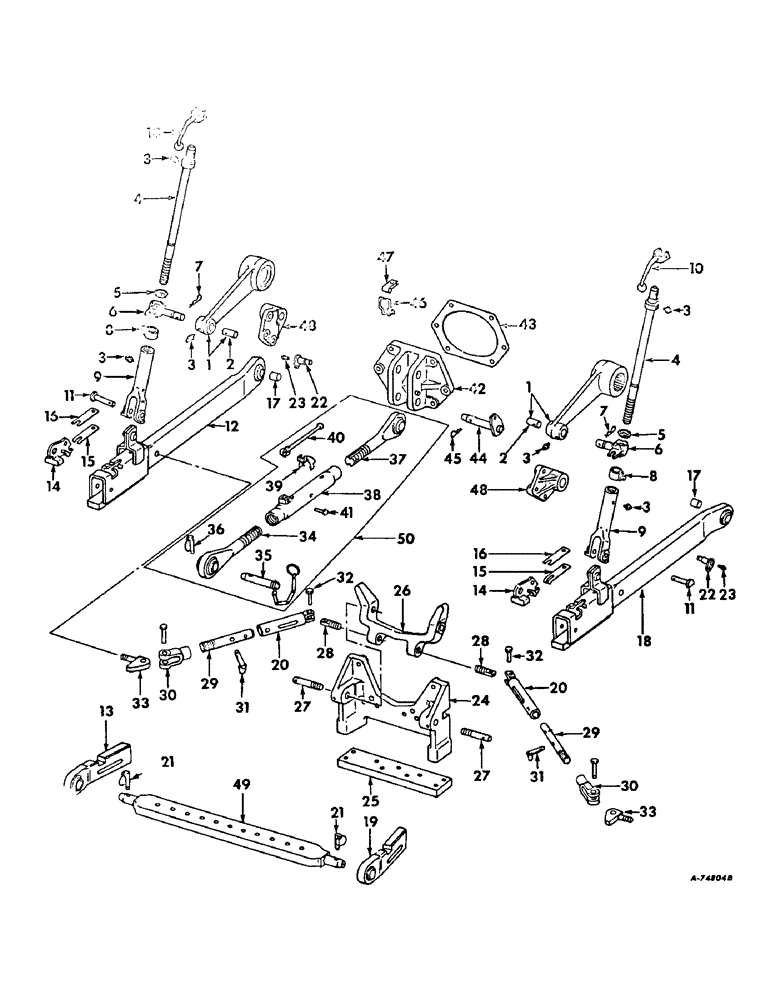

Запчасти Case IH 2706 (K-09) - DRAWBARS AND HITCHES, THREE POINT HITCH Drawbars & Hitches
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
ATTACHMENT, three point hitch, tractors with draft control and draft sensing, 382155R92, Farmall tractors
1шт.
NSS
NOT SOLD SEPARAT
ATTACHMENT, three point hitch, tractors with draft control and draft sensing, 383981R92, International tractors
1шт.
1
382156R11
ARM
ASSY, rockshaft
2шт.
2
383357R1
BUSHING,28.56mm ID x 33.38mm OD x 63.5mm L
rockshaft arm
2шт.
3
86504104
LUBE NIPPLE,1/4" x .56" lg, Drive
FITTING, 1/4 drive type str. lub.
6шт.
4
382165R11
ADJUSTMENT SCREW,1" - 5 x 24.69"
SCREW ASSY, leveling, Farmall tractors
2шт.
4
383985R11
SCREW ASSY, leveling, International tractors
2шт.
617057R1
PIN,1/4" x 1", Coiled
2шт.
5
382168R1
WASHER
pivot
2шт.
6
383990R2
PIVOT ASSY.
PIVOT, leveling screw
2шт.
Q3482
WASHER
1-5/32 x 1-3/4 x 11 ga.
2шт.
7
520175R1
CLIP
PIN, quick attachable cotter
2шт.
8
383982R1
COLLAR
COLLAR, vertical float lock
2шт.
113020
SET SCREW,Sq Hd, 5/8"-11 x 1"
SCREW, 5/8 x 1 cont-pt. sq-hd. set
2шт.
9
395142R1
YOKE
leveling screw, will work for 383988R2
2шт.
10
523861R2
HANDLE
HANDLE, levleing screw
2шт.
617939R1
PIN,5/16" x 1 1/2", Coiled
5/16" x 1-1/2", coiled
2шт.
11
383991R1
PIN,Headed, 7/8" x 3 3/8", Drilled
leveling screw yoke
2шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
2шт.
12
382180R91
LINK ASSY, front section lower LH
1шт.
13
382189R11
LINK ASSY, LH rear section lower
1шт.
20126R1
PIN,1/2" x 2", Coiled
1шт.
14
382191R2
LOCK ASSY
LATCH, lower link
2шт.
15
382192R1
SPRING
lower link latch
2шт.
16
382193R1
SPRING
stiffener
2шт.
181331
BOLT,Hex, 5/16" - 24 x 1/2", Gr 5
SCREW, 5/16-24 x 1/2 hex-hd. cap
2шт.
17
383361R1
BUSHING
front lower link ball
2шт.
18
382181R91
LINK ASSY, front section lower RH
1шт.
19
382188R11
LINK ASSY, RH rear section lower
1шт.
20126R1
PIN,1/2" x 2", Coiled
1шт.
20
383358R11
TUBE
HOUSING ASSY, lateral limiter
2шт.
21
385159R91
PIN
ASSY, drawbar
2шт.
22
382194R2
PIN
lower link
2шт.
179882
PIN
SCREW, 1/2-13 x 1-1/8 hex-hd. cap
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
395-11053
WASHER,0.53" ID x 1.06" OD x 0.1" Thk
17/32 x 1-1/16 x .095
1шт.
23
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg
2шт.
24
383385R2
SUPPORT, drawbar
1шт.
PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5
Farmall tractors up to Serial no. 27009, International tractors up to Serial no. 4346 Hex, 5/8"-11 x 1 3/4", G5
6шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 hex-hd. cap, Farmall tractors with serial no. 27010 & above, International tractors with serial no. 4347 & above
8шт.
524443R1
WASHER,0.66" ID x 1.25" OD x 0.19" Thk
21/32 x 1-1/4 x 7 ga., used only when 110 mover is mounted on tractor
2шт.
25
382198R1
BAR
PLATE, drawbar support
1шт.
271612
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
SCREW, 3/4-10 x 2-1/4 hex-hd. cap
4шт.
26
382386R2
ARM
stabilizer control
1шт.
27
383362R2
AXLE PIN,25.4mm OD x 106.68mm L
SHAFT, stabilizer control arm
2шт.
427651
SLOTTED NUT,1"-14, G5
NUT, 1-14 slt hex
2шт.
119179
PIN, 3/16 x 1-7/8 cotter
2шт.
616252R1
LOCK PIN,3/8" x 2 1/8", Slotted
PIN, 3/8" x 2-1/8", slotted
2шт.
28
382390R1
BOLT (SPREADER),1 1/4" - 7 x 2.38"
EYEBOLT, stabilizer front
2шт.
29
386198R1
STUD
lateral limiter, Farmall tractors
2шт.
29
386199R1
STUD
lateral limiter, International tractors
2шт.
19903R1
PIN,1/2" x 1 3/4", Coiled
2шт.
30
386200R91
YOKE
ASSY, lateral limiter
2шт.
31
383363R11
AXLE PIN
PIN ASSY, lockout
2шт.
520175R1
CLIP
PIN, Q.A. cotter
2шт.
32
384852R1
AXLE PIN
PIN, stabilizer
4шт.
108638
COTTER PIN,3/16" x 1 1/8"
Pin, Split (Cotter), 3/16" x 1 1/8"
4шт.
33
382397R1
BOLT,3/4" - 16 x 2", Drilled
EYEBOLT, stabilizer rear
2шт.
427639
SLOTTED NUT,3/4"-16, G5
NUT, 3/4-16 slt. hex
2шт.
32-822
COTTER PIN,1/8" x 1 3/8"
PIN, split (Cotter), 1/8" x 1-3/8"
2шт.
34
384848R11
LINK
SCREW ASSY, LH thread, optinal with 386048R91
1шт.
34
386048R91
LINK
SCREW ASSY, LH thread, optional with 384848R91
1шт.
35
380563R91
PIN
ASSEMBLY, upper link implement
1шт.
36
517758R91
SPLIT PIN/SAFETY PIN
PIN, implement pin retaining
1шт.
37
384849R11
LINK
SCREW ASSY, RH thread, optional with 386049R91
1шт.
37
386049R91
LINK
SCREW ASSY, RH thread, optional with 384849R91
1шт.
19791R1
PIN,1/4" x 1 1/8", Coiled
1/4" x 1-1/8", coiled
2шт.
38
384850R11
TURNBUCKLE
ASSY, upper link
1шт.
39
395108R1
CLIP
turnbuckle handle spring, also order handle, 392204R1, for tractors w/serial no. & below
1шт.
40
392204R1
HANDLE
upper link turnbuckle, also order clip, 395108R1 for tractors w/serial no. & below
1шт.
41
W4435
PIN
3/8 x 1-3/8 headed
1шт.
107763
COTTER PIN,1/8" x 5/8"
PIN, SPLIT (COTTER), 1/8" x 5/8"
1шт.
42
382212R11
BRACKET
ASSEMBLY, upper link
1шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 hex-hd. cap
6шт.
43
383330R1
GASKET
draft control adj opening cover
1шт.
44
382210R11
PIN
ASSY, upper link bracket
1шт.
45
520175R1
CLIP
PIN, quick attachable cotter
1шт.
46
378403R1
ELECTRICAL WIRE
BRACKET, upper link storage
1шт.
47
378404R1
FASTENER
CLIP, upper link storage bracket
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
48
384025R1
BRACKET
lockout, not included in three-point hitch attachment
2шт.
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 hex-hd. cap
6шт.
49
374150R1
DRAWBAR
cross, not included in three-point hitch attachment
1шт.
50
384851R92
LINK
ASSY, upper
1шт.
381039R91
PARTS ACCESSORY, three point hitch cross drawbar, consists of (2) bracket 384025R1, (1) drawbar 374150R1, (6) screw 271562
1шт.
380579R91
BUSHING
PARTS ACCESSORY, bushing & pin adapter, for use w/category I implements when mounting on category II hitch, consists of:
1шт.
380581R1
BUSHING
upper link category #1 short
1шт.
380582R1
BUSHING
upper link category #1 long
1шт.
380583R1
BUSHING
lower link category #1 short
2шт.
380584R1
BUSHING
lower link category #1 long
2шт.
380580R91
PIN
ASSY, upper link implement
1шт.
11484R
BUSHING
SPACER, lower long bushing
2шт.
Выбрано товаров: 92
