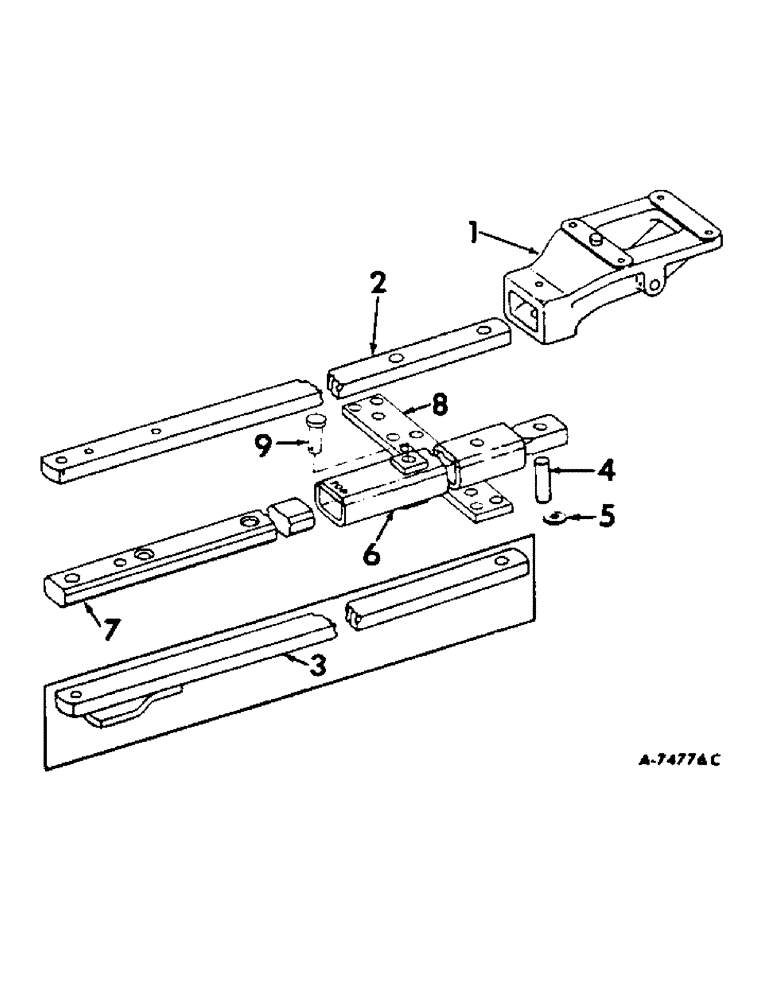

Запчасти Case IH 2706 (K-04) - DRAWBARS AND HITCHES, SWINGING DRAWBAR, TRACTORS WITH TWO OR THREE POINT HITCH Drawbars & Hitches

NSS

NOT SOLD SEPARAT

ATTACHMENT, swinging drawbar, tractors with two point hitch, 383496R91, Farmall tractors 501 to 19249, International tractors 501 to 2999, consists of all parts marked unit A

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, swinging drawbar, tractors with three point hitch, 381713R91, consists of all parts marked unit B

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, independent swinging drawbar, tractors with two-point hitch, 389257R91, Farmall tractors 19250 up, International tractors 300 up, consists of all parts marked unit C

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, independent swinging drawbar, tractors w/three point hitch, 400865R91, consists of all parts marked unit D

1шт.

1

381707R21

SUPPORT

ASSY, swinging drawbar pivot, not included in the swinging drawbar attachment

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd. cap

4шт.

2

381706R2

BAR

DRAWBAR, swinging, unit B

1шт.

220081

NUT

3/4-10 hex

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd. cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

383494R21

DRAWBAR, swinging, unit A

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd. cap, drawbar stop

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

2шт.

4

57654D

PIVOT PIN

PIN, drawbar pivot, units A thru D

1шт.

5

49139D

WASHER,10.32mm ID x 38.1mm OD x 5mm Thk

PLATE, pivot pin lock, units A thru D

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

389421R11

BAR

DRAWBAR ASSY, front section, units C and D

1шт.

7

397065R1

BAR

DRAWBAR, rear section, units C and D, replaces 389429R1, also order pin, 397067R1

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 hex-hd. cap, drawbar stop

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

220081

NUT

3/4-10 hex

2шт.

8

389065R1

BAR, drawbar support, unit C

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd. cap

4шт.

9

397067R1

PIN

7/.8 x 3-1/16 headed, units C and D, replaces 389428R1

1шт.

520175R1

CLIP

PIN, quick attachable cot.

1шт.

389428R1 Headed Pin

1шт.
