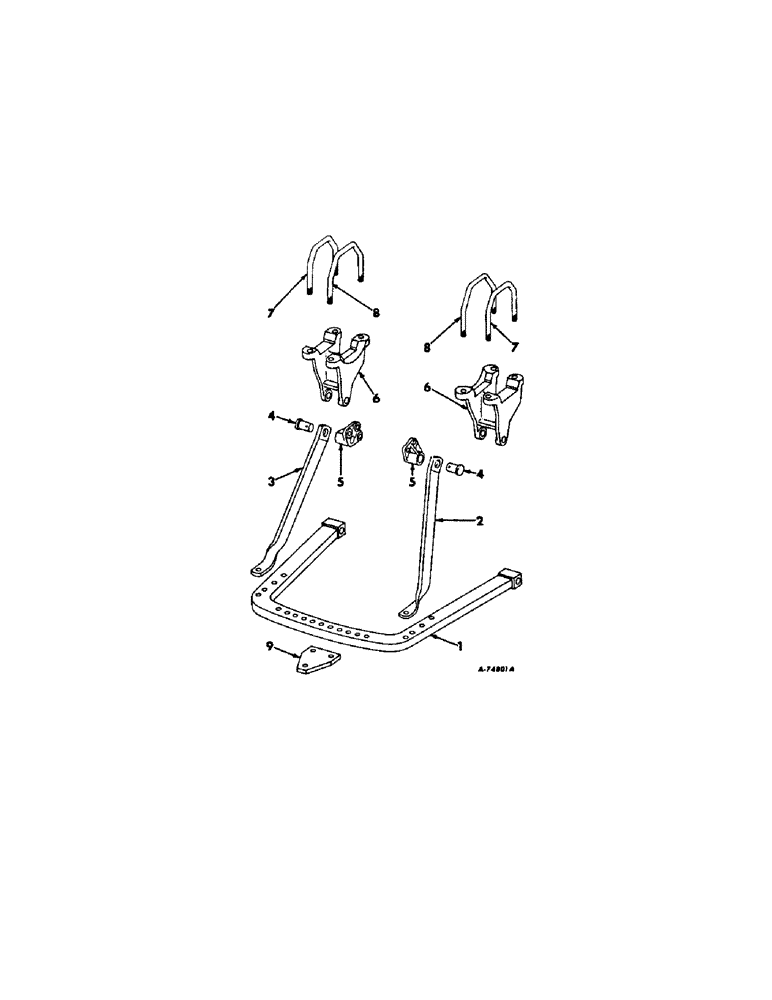

Запчасти Case IH 2706 (K-02) - DRAWBARS AND HITCHES, VERTICALLY ADJUSTABLE DRAWBARS Drawbars & Hitches

1

383058R11

DRAWBAR ASSEMBLY

1шт.

1

391867R11

DRAWBAR ASSEMBLY, heavy duty

1шт.

103348

WASHER,1" x 2" x .134"

1-1/16 x 2 x .134 thick

4шт.

2

383062R2

BRACE, drawbar LH

1шт.

220081

NUT

3/4-10 hex

1шт.

20072R1

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 8

SCREW, 3/4-10 x 3-1/4 hex-hd. cap, heavy duty drawbar

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

383063R2

BRACE, drawbar RH

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

1шт.

20072R1

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 8

SCREW, 3/4-10 x 3-1/4 hex-hd. cap, heavy duty drawbar

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

4

383064R1

PIN

drawbar brace

2шт.

13121R1

PIN, split (Cotter), 1/4" x 1-1/2", self opening 1/4" x 1 1/2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

384025R1

BRACKET

lockout

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd. cap

6шт.

6

383059R1

BRACKET, drawbar mounting

2шт.

220083

NUT,1"-8, G5

1-8 hex

2шт.

18757R1

SCREW, 1-8 x 5-3/4 hex-hd. cap

2шт.

7

383061R2

U-BOLT, drawbar bracket outer

2шт.

8

383060R2

U-BOLT, drawbar bracket inner

2шт.

220081

NUT

3/4-10 hex

8шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

9

387048R1

PLATE, drawbar extension, tractors with independent PTO

1шт.

425-1012

NUT,3/4"-10, G5

3/4-10 hex

2шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 hex-hd. cap

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.
