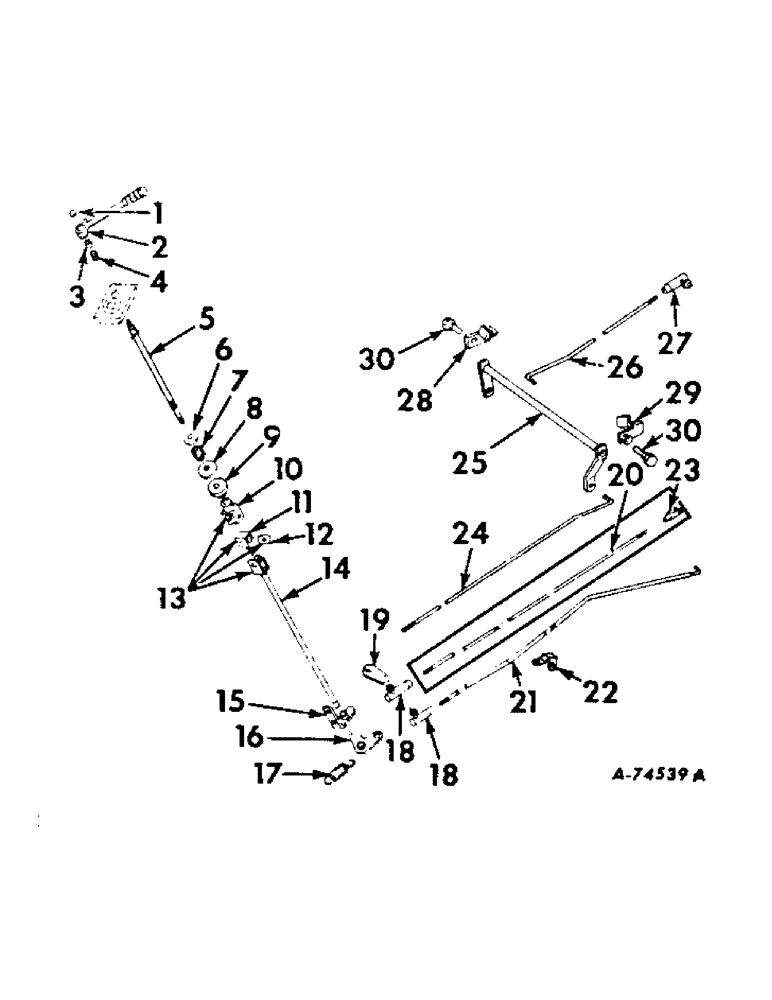

Запчасти Case IH 2706 (H-04) - CONTROLS, ENGINE SPEED CONTROLS Controls

1

432268

PLUG, 7/8 in. C-Z button, used with handle, 382682R1

1шт.

1

192105

HOLE PLUG BUTTON,1"

PLUG, 1 in. C-Z button, used with handle, 391666R1

1шт.

2

382682R1

HANDLE

governor control, has 7/8 in. hole in hub end, order handle, 391666R1 and plug, 192105

1шт.

2

391666R1

HANDLE

governor control

1шт.

230-4115

LOCK NUT,5/16"-18, GA

5/16-18 stover hex, lock

1шт.

615029R1

WASHER

3/8 x 3/4 x .065

1шт.

106265

WASHER,1/2"

9/16 x 1-3/8 x .109

1шт.

3

P24082

BRACE

SPACER, governor control handle, for all carbureted engine tractors, Farmall diesel engine tractors w/serial no. 37237 & above & International tractors w/serial no. 5274 & above

1шт.

4

30A

SPRING

governor control handle, Farmall diesel engine tractors w/serial no. 37236 & below, International diesel engine tractors w/serial no. 5273 & below

1шт.

5

382683R11

SHAFT

ASSY, governor control upper, furnish shaft 404238R11, yoke 404240 and screw 338800R1

1шт.

5

404238R11

SHAFT

ASSY, governor control upper, tractors w/o tilt steering

1шт.

5

404246R1

SHAFT

ASSY, governor control upper, tractors w/tilt steering

1шт.

443149

GROOVED PIN,3/16" x 1 1/4", Type E

PIN, grooved, 3/16" x 1-1/4", Type E

1шт.

6

369461R1

RETAINER

RETAINER, governor control spring

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

2шт.

7

369462R1

SPRING

governor control

1шт.

8

382684R1

GASKET

DISC, governor control friction

1шт.

9

382685R11

RETAINER

RETAINER ASSY, governor control friction

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

10

382689R11

YOKE ASSY, upper, for tractors w/o tilt steering furnish yoke 404240R1, shaft 404238R11 and screw 338800R1, for tractors w/tilt steering furnish yoke 404240R1, shaft 404246R1 and screw 338800R1

1шт.

10

404240R1

YOKE

ASSY, upper

1шт.

11

382691R1

CROSS

BLOCK, universal joint center

1шт.

12

382692R1

PIN

center block

1шт.

338800R1

SCREW, 1/4-20 x 1/4 hex-soc-hdls cup-pt-set

1шт.

13

382687R91

JOINT & SHAFT ASSY, governor control universal, for tractors w/o tilt steering furnish joint assy 404239R91, shaft 404238R11 and screw 338800R1, for tractors w/tilt steering furnish joint assy 404239R91, shaft 404246R1 and screw 338800R1

1шт.

13

404239R91

JOINT

& SHAFT ASSY, governor control upper

1шт.

14

382693R11

SHAFT ASSY, governor control lower

1шт.

385681R1

PIN

1/4 x 1-1/4 str

1шт.

15

382695R11

BRACKET

SUPPORT ASSY, governor control shaft

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

16

382696R11

LEVER

ASSY, governor control rod operating, carbureted engine tractors

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

17

369470R1

VALVE SPRING

SPRING, governor control balancing, carbureted engine tractors

1шт.

18

393353R91

JOINT TURNING

JOINT, 5/16-24 C-Z type sp ball

1шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex

1шт.

19

383183R11

ARM

LEVER ASSY, governor control rod, Farmall diesel engine tractors w/serial no. 37236 & below, International diesel engine tractors w/serial no. 5273 & below

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

19

392955R11

LEVER

ASSY, governor control rod operating, Farmall diesel engine tractors w/serial no. 37237 & above, International diesel engine tractors w/serial no. 5274 & above

1шт.

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

20

384617R1

ROD, governor control to injection pump, Farmall diesel engine tractors w/serial no. 37236 & below, International diesel engine tractors w/serial no. 5273 & below

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

21

382697R1

ROD, governor control to governor, carbureted engine tractors

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

22

384013R1

GUIDE, governor control rod, carbureted engine tractors

1шт.

23

104037

CLEVIS

5/16-24 adj rod end, diesel engine tractors

1шт.

114784

PIN

5/16 x 31/32 rod end

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

24

396343R1

ROD, governor control rear, Farmall diesel engine tractors w/serial no. 37237 & above, International diesel engine tractors w/serial no. 5274 & above

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

95-11034

WASHER,1/4"

11/32 x 111/6 x .065

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

25

396344R11

SHAFT ASSY, governor control cross, Farmall diesel engine tractors w/serial no. 37237 & above, International diesel engine tractors w/serial no. 5274 & above

1шт.

26

396350R1

ROD, governor control front, Farmall diesel engine tractors w/serial no. 37237 & above, International diesel engine tractors w/serial no 5274 & above

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

27

366795R91

BALL JOINT

JOINT, spring loaded ball, Farmall diesel engine tractors w/serial no. 37237 & above, International diesel engine tractors w/serial no. 5274 & above

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex

1шт.

28

396347R11

BRACKET ASSY, cross shaft support LH, Farmall diesel engine tractors w/serial no. 37237 & above, International diesel engine tractors w/serial no. 5274 & above

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

29

396348R11

BRACKET ASSY, cross shaft support RH, Farmall diesel engine tractors w/serial no. 37237 & above, International diesel engine tractors w/serial no. 5274 & above

1шт.

181356

BOLT,Hex, 3/8" - 24 x 5/8", Gr 5

1шт.

30

396349R1

BOLT (SPREADER),Hex, 3/8" - 24 x 0.72"

PIN, cross shaft support, Farmall diesel engine tractors w/serial no. 37237 & above, International diesel engine tractors w/serial no. 5274 & above

1шт.
