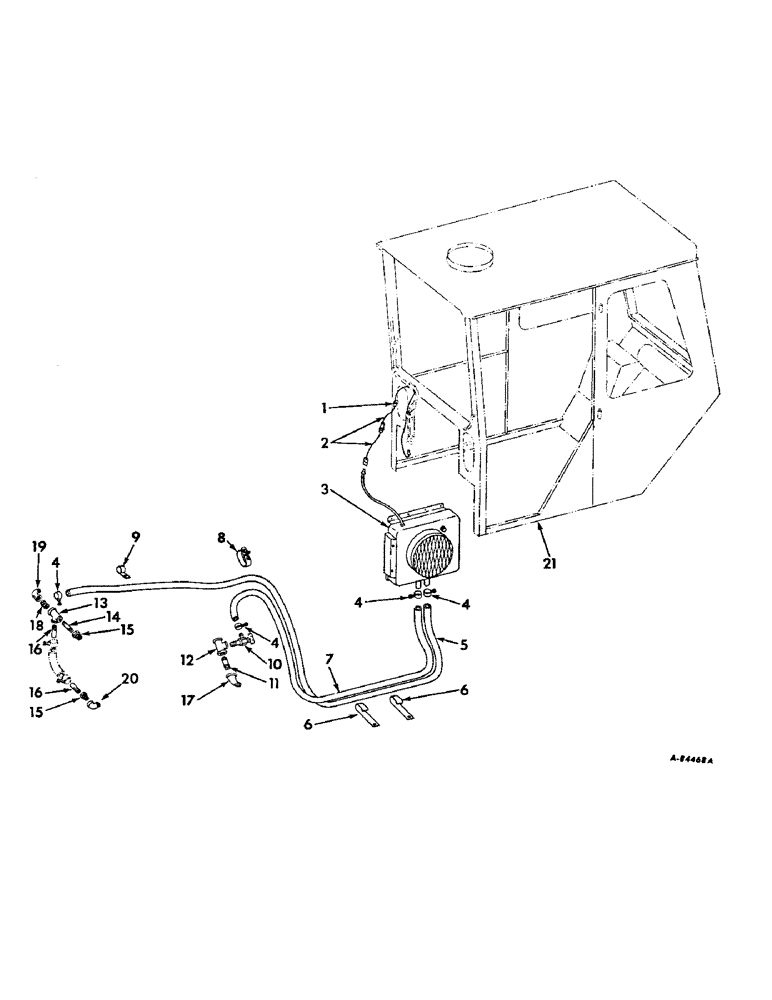

Запчасти Case IH 2706 (N-12) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB HEATER, DIESEL ENGINE TRACTORS Accessories & Attachments

391167R91

PARTS ACCESSORY, tractor cab heater, Farmall tractors w/serial no. 37236 and below, International tractors w/serial no. 5273 and below, consists of all unmarked parts and those marked unit A

1шт.

397337R91

PARTS ACCESSORY, tractor cab heater, Farmall tractors w/serial no. 37237 and above, International tractors w/serial no. 5274 and above, consists of all unmarked parts and those marked unit B

1шт.

1

263515R91

CLIP,ELECTRICAL

CLIP, heater power supply cable

1шт.

221154

SCREW, 14-10 x 1/2 slt-truss-hd. mach

1шт.

2

391173R91

CABLE ASSY, heater power supply

1шт.

117142

FUSE,10 Amp, Type 3AG

cartidge type AGC 10

1шт.

3

391172R91

HEATER ASSY, tractor cab, for components, see list of parts under details of tractor cab heater

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

272519

SCREW

1/4-20 x 1 C-Z slt-truss-hd.

1шт.

4

39093H

HOSE CLAMP

CLAMP, heater hose end

4шт.

5

NSS

NOT SOLD SEPARAT

HOSE, heater inlet, use 60 in. of 5/8 ID heater hose from a 50 ft.. roll marked, 995108R2, unit A

1шт.

6

391179R2

CLIP, heater outlet hose, unit A (2), unit B (3)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE, heater outlet, use 94 in. of 5/8 ID heater hose from a 50 ft. roll marked, 995108R2, unit A

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE, heater outlet, use 100 in. 5/8 ID heater hose from 50 ft. roll marked, 995108R2, unit B

1шт.

8

652382R91

CLAMP, heater hose

1шт.

9

391180R1

CLIP

heater hose, unit A

1шт.

9

204412R1

CLIP,ELECTRICAL

CLIP, heater hose

2шт.

108018

SCREW, 1/4-20 x 5/8 C-Z hex-hd. cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .051 C-Z, unit B

1шт.

10

301803R91

VALVE

ASSY, shut-off

1шт.

11

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2 x 1-1/8 pipe, unit A

1шт.

12

143166

DECAL KIT

TEE, 1/2 x 1/2 x 3/8 reducing pipe, unit A

1шт.

13

218243

TEE, 3/8 x 3/8 x 1/2 reducing pipe, unit A

1шт.

14

121207

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE, 3/8 x 1 pipe, unit A

1шт.

15

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing pipe, unit A (2), unit B (1)

1шт.

16

391178R1

FITTING, heater outlet hose, unit A

2шт.

17

137894

ELBOW,45 Degree, 1/2" NPT Street

1/2 45 deg. street, unit A

1шт.

18

396381R1

BUSHING, 1 x 1/2 reducing pipe, unit B

1шт.

19

278089R1

FITTING

ELBOW, heater outlet hose 45 deg., unit B

1шт.

20

444044

ELBOW,90 Degree, 1/2"-14 NPTF, Fem x 1/2"-14 NPTF Male

1/2 90 deg. street, unit B

1шт.

21

NSS

NOT SOLD SEPARAT

CAB ASSY, tractor, refer to tractor cab and connections listing, this section

1шт.
