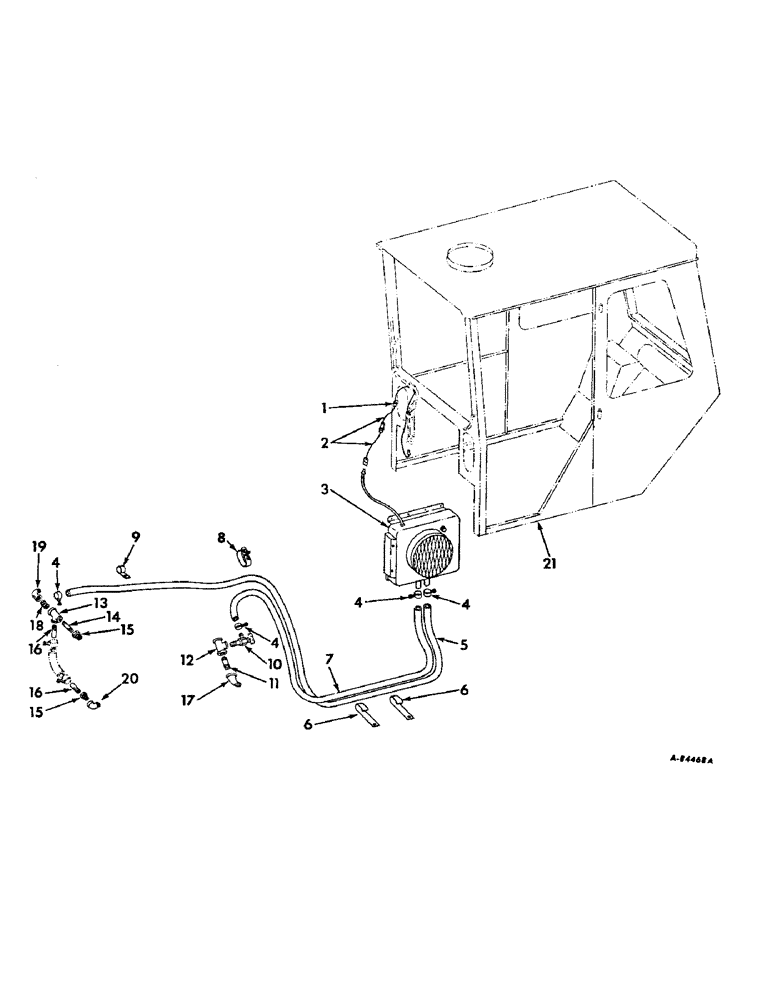

Запчасти Case IH 2706 (N-12[A]) - PARTS ACCESSORIES AND ATTACHMENTS, TRACTOR CAB HEATER Accessories & Attachments

391167R91

PARTS ACCESSORY, tractor cab heater, Farmall tractors w/serial no. 37236 and below, International tractors w/serial no. 5273 and below, consists of all unmarked parts and those marked unit A

1шт.

397337R91

PARTS ACCESSORY, tractor cab heater, Farmall tractors w/serial no. 37237 and above, International tractors w/serial no. 5274 and above, consists of all unmarked parts and those marked unit B

1шт.

1

263515R91

CLIP,ELECTRICAL

CLIP, heater power supply cable

1шт.

221154

SCREW, 14-10 x 1/2 slt-truss-hd. mach

1шт.

2

391173R91

CABLE ASSY, heater power supply

1шт.

117142

FUSE,10 Amp, Type 3AG

cartidge type AGC 10

1шт.

3

391172R91

HEATER ASSY, tractor cab, for components, see list of parts under details of tractor cab heater

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

272519

SCREW

1/4-20 x 1 C-Z slt-truss-hd.

1шт.

4

39093H

HOSE CLAMP

CLAMP, heater hose end

4шт.

5

NSS

NOT SOLD SEPARAT

HOSE, heater inlet, use 60 in. of 5/8 ID heater hose from a 50 ft. roll marked, 995108R2, unit A

1шт.

6

391179R2

CLIP, heater outlet hose, unit A (2), unit B (3)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE, heater outlet, use 94 in. of 5/8 ID heater hose from a 50 ft. roll marked, 995108R2, unit A

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE, heater outlet, use 100 in. 5/8 ID heater hose from 50 ft. roll marked, 995108R2, unit B

1шт.

391172R91

HEATER ASSY

1шт.

1

NSS

NOT SOLD SEPARAT

CASE ASSY, not serviced separately, order 391172R91

1шт.

2

400405R1

CORE

heater

2шт.

3

400406R1

MOTOR

heater fan

1шт.

4

400407R1

FAN

heater

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE, core junction heater, use 7 in. of 3/4 ID heater hose from a 50 ft. roll marked, 996720R2

1шт.

6

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, core heater hose

2шт.

7

400408R1

SWITCH, heater, 3 speed

1шт.
