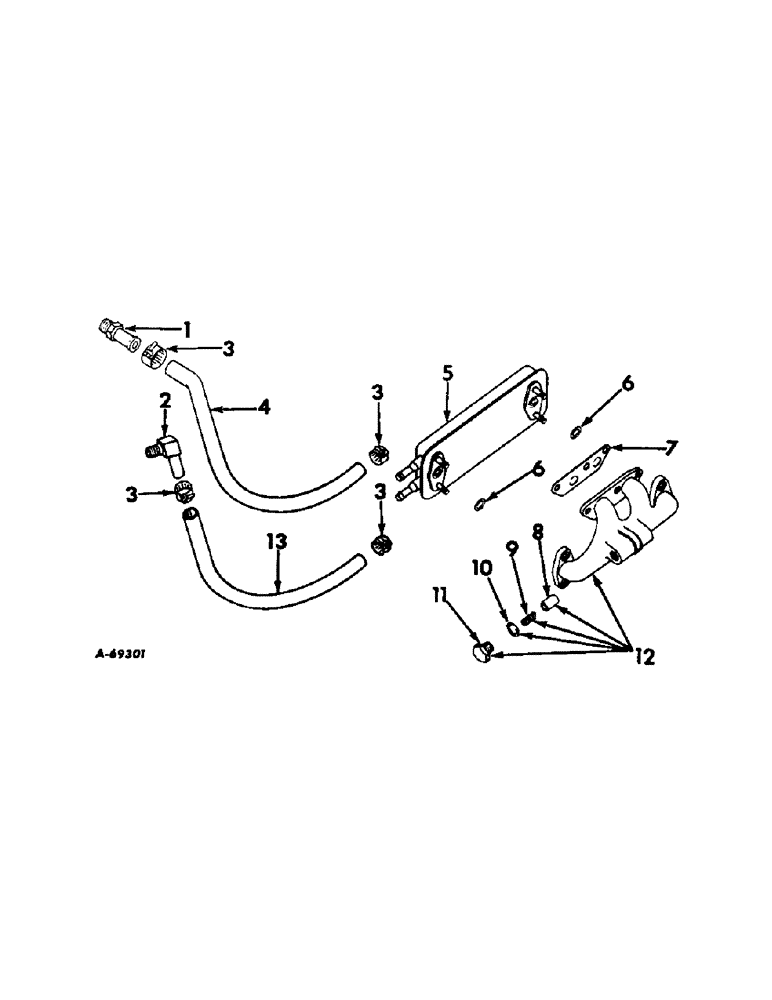

Запчасти Case IH 2706 (D-15) - DIESEL ENGINE, DIESEL ENGINE OIL COOLER, D-282 DIESEL ENGINE TACTORS (01) - ENGINE

1

320182R1

CONNECTOR, water inlet hose

1шт.

2

320275R1

ELBOW UNION

ELBOW, water outlet hose

1шт.

3

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, water hose

4шт.

4

321878R1

HOSE

engine oil cooler water inlet

1шт.

5

279212R91

COOLER ASSY.

COOLER, engine oil, optional with 279212R91

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

3/4 x 15/16 x 3/32, oil cooler to manifold

2шт.

7

304945R1

SPACER

oil cooler manifold

1шт.

7

304091R1

GASKET

oil cooler manifold

1шт.

8

251400R1

VALVE

oil cooler relief

1шт.

9

279163R1

SPRING

oil cooler relief valve

1шт.

10

251403R1

GASKET

relief valve plug

1шт.

11

251402R1

PLUG

relief valve

1шт.

12

279160R11

MANIFOLD ASSY, engine oil cooler

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4-18 auto sq-hd. pipe

2шт.

13

305206R1

HOSE

engine oil cooler water outlet

1шт.
