Запчасти Case IH 268 (07-040) - RANGE TRANSMISSION, IN-REAR FRAME, HYDROSTATIC DRIVE TRACTORS (04) - Drive Train

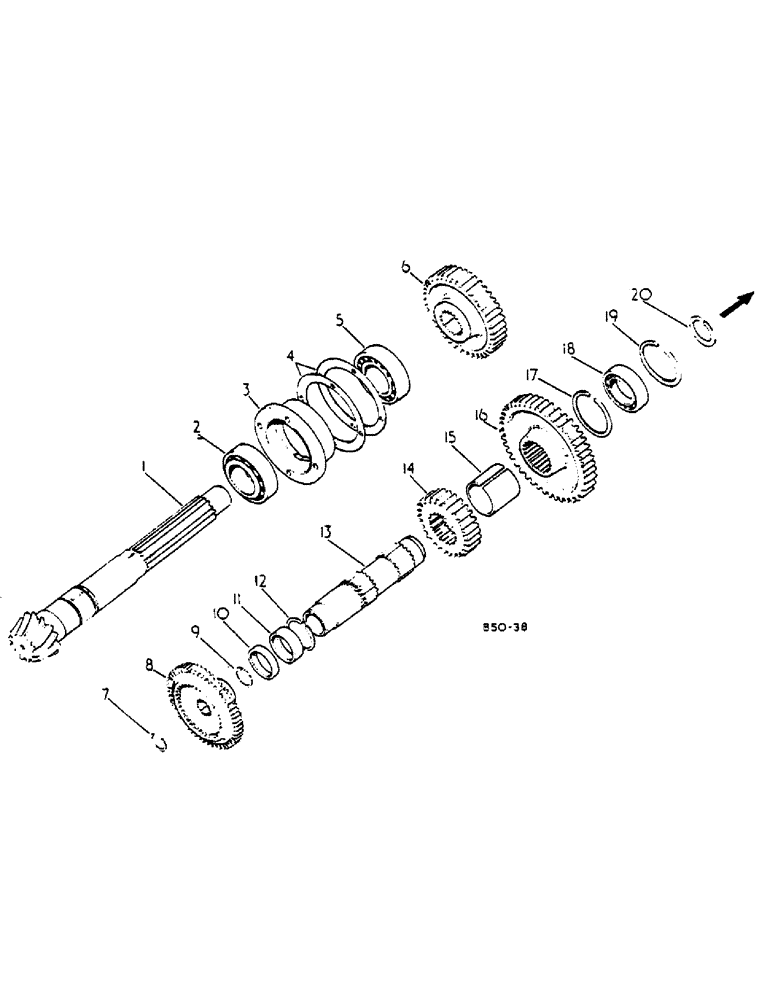

Схема запчастей Case IH 268 - (07-040) - RANGE TRANSMISSION, IN-REAR FRAME, HYDROSTATIC DRIVE TRACTORS (04) - Drive Train
15
17
13
11
3
4
5
12
19
18
20
10
8
2
14
16
6
9
7
1

Артикул

Название

Примечание

Количество

1

65254C1

SHAFT

SET. BEVEL GEAR MATCHED -12/53T, CONSISTS OF 1 SHAFT, 1 GEAR

1шт.

2

399823R91

BEARING ASSY,2.187" ID x 3.8437" OD x 0.9745, 0.7656"

ASSY, MAIN SHAFT REAR

1шт.

2

399824R91

ROLLER BEARING

ASSY, MAIN SHAFT REAR, OPTIONAL

1шт.

3

399825R1

BEARING CUP

CAGE, MAIN SHAFT BRG, INCLUDES SCREWS

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

4

65423C1

SHIM KIT

PACKAGE, MAIN SHAFT BRG CAGE, SERVICE, CONSISTS OF 2 SHIMS, 5 SHIMS

1шт.

5

399821R91

BEARING ASSY,2.125" ID x 3.8125" OD x 0.8328"

ASSY, MAIN SHAFT FRONT

1шт.

5

399822R91

ROLLER BEARING

ASSY, MAIN SHAFT FRONT, OPTIONAL

1шт.

6

536911R5

GEAR

HI-LO SLIDING -44T

1шт.

7

533266R1

RING, SNAP

RING SNAP IPTO FRONT DRIVEN SHAFT REAR

1шт.

8

404218R1

GEAR

PUMP DRIVE -55T, TRACTORS W/DUAL SPEED IPTO

1шт.

9

399837R1

SNAP RING,#118, 1.121", Ext

PUMP DRIVE GEAR RETAINER

1шт.

10

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

PUMP DRIVE GEAR

1шт.

10

527747R91

BEARING, NEEDLE

PUMP DRIVE GEAR, OPTIONAL

1шт.

11

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

COUNTERSHAFT

1шт.

11

527746R91

BEARING, NEEDLE

COUNTERSHAFT, OPTIONAL

1шт.

12

398264R1

SNAP RING,#215, 2.026", Ext

LO RANGE DRIVING GEAR RET

1шт.

13

404096R1

SHAFT

RANGE TRANSMISSION

1шт.

14

536910R1

PINION

GEAR LO-RANGE DRIVING -24T

1шт.

15

399835R1

BUSHING

COUNTERSHAFT GEARS

1шт.

16

404098R1

GEAR

SPARE PART CONSTANT MESH -40T

1шт.

17

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

1шт.

18

ST572

BEARING, BALL,50 mm ID x 80 mm OD x 16 mm

COUNTERSHAFT FRONT

1шт.

18

360635R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

18

528101R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

18

528102R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

18

3047867R91

BEARING, BALL

COUNTERSHAFT FRONT

1шт.

18

3069304R91

BALL BEARING

COUNTERSHAFT FRONT

1шт.

18

69843C91

BALL BEARING,49.994 mm ID x 79.994 mm OD x 15.94 mm

COUNTERSHAFT FRONT, OPTIONAL

1шт.

19

399832R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG INT

1шт.

20

327068R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG EXT EXT

1шт.

Выбрано товаров: 31
