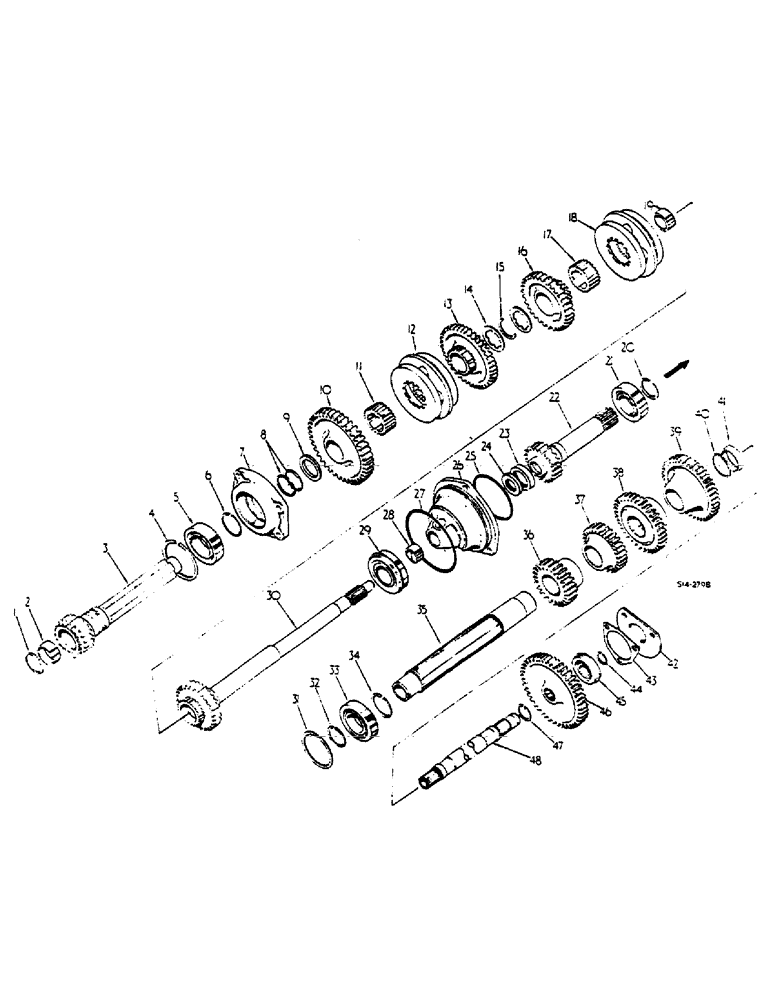

Запчасти Case IH 268 (07-035) - SPEED TRANSMISSION, IN-CLUTCH HOUSING (04) - Drive Train

1

66014C1

SNAP RING

FRONT NEEDLE BRG INT

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

MAIN SHAFT NEEDLE

1шт.

3

65258C1

SHAFT

MAIN, SYNCHROMESH DRIVE

1шт.

3

3118323R1

SHAFT

MAIN, TORQUE AMPLIFIER

1шт.

4

398334R1

SNAP RING

MAIN SHAFT BRG RETAINER INNER

1шт.

5

67322C91

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

MAIN SHAFT

1шт.

5

10690V

BEARING, BALL

MAIN SHAFT

1шт.

5

140639R91

BEARING, BALL

MAIN SHAFT

1шт.

5

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

MAIN SHAFT

1шт.

5

67651C91

BEARING, BALL

MAIN SHAFT

1шт.

5

67652C91

BEARING, BALL

MAIN SHAFT

1шт.

5

67656C91

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

MAIN SHAFT

1шт.

5

272566R91

BEARING, BALL

MAIN SHAFT

1шт.

5

302175R91

BEARING, BALL

MAIN SHAF, OPTIONAL

1шт.

6

327068R1

RING, SNAP

RING SNAP MAIN SHAFT BRG RETAINER OUTER

1шт.

7

534411R1

BEARING ASSY

CAGE ASSY, MAIN SHAFT BRG, INCLUDES SCREWS

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

8

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

MAINSHAFT LUB LINE SEAL

2шт.

9

398332R1

WASHER

RING

1шт.

10

66153C2

PINION

GEAR, 1ST SPEED DRIVEN -45T, SLOW SPEED TRAIN TYPE D

1шт.

10

398331R2

PINION

GEAR, 1ST SPEED DRIVEN -41T, FAST SPEED TRAIN TYPE B

1шт.

10

398269R2

GEAR

GEAR, 1ST SPEED DRIVEN -44T, SPEED TRAIN TYPE A

1шт.

11

398325R1

HUB

1ST AND 2ND SPEED SHIFT

1шт.

12

65793C2

SYNCHRONIZER

PACKAGE, SERVICE

1шт.

13

66155C3

GEAR

2ND SPEED DRIVEN -41T, FAST SPEED TRAIN TYPE B

1шт.

13

398330R3

PINION

GEAR, 2ND SPEED DRIVEN -33T

1шт.

13

298270R3

SPARE PART 2ND SPEED DRIVEN -39T, SPEED TRAIN TYPE A

1шт.

14

398328R2

THRUST WASHER

MAIN SHAFT

2шт.

15

398329R1

CIRCLIP

SYNCHRONIZER

1шт.

16

398330R3

PINION

GEAR, 3RD SPEED DRIVEN -33T, SLOW SPEED TRAIN TYPE D

1шт.

16

398327R3

PINION

GEAR, 4TH SPEED DRIVEN -24T, FAST SPEED TRAIN TYPE B

1шт.

16

398330R3

PINION

GEAR, 3RD SPEED DRIVEN -33T, SPEED TRAIN TYPE A

1шт.

17

398325R1

HUB

3RD AND 4TH SPEED SHIFT

1шт.

18

65793C2

SYNCHRONIZER

PACKAGE, SERVICE

1шт.

19

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

CLUTCH SHAFT

1шт.

20

379511R1

SNAP RING,#177, 1.657", Ext

IPTO DRIVE SHAFT BRG RETAINER

1шт.

21

ST42

BEARING

SPARE PART IPTO DRIVE SHAFT BALL

1шт.

21

65354C91

BALL BEARING

IPTO DRIVE SHAFT

1шт.

21

67653

BALL BEARING

IPTO DRIVE SHAFT, OPTIONAL

1шт.

22

71230C2

SHAFT

IPTO DRIVE

1шт.

23

376930R91

OIL SEAL,39.24mm ID x 57.35mm OD x 8mm Thk

IPTO DRIVE SHAFT OIL

1шт.

24

3125797R1

OIL SEAL

CLUTCH SHAFT

1шт.

25

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3-3/4 X 4 X 1/8

1шт.

26

398319R31

CAGE ASSY. IPTO AND CLUTCH SHAFT BRG

1шт.

27

26969R1

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

5-1/4 X 5-5/8 X 1/8 BRG CAGE

1шт.

28

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

CLUTCH SHAFT

1шт.

29

398323R91

BALL BEARING

CLUTCH SHAFT

1шт.

29

70126C91

BALL BEARING

CLUTCH SHAFT

1шт.

29

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

CLUTCH SHAFT

1шт.

29

42347D

BALL BEARING

CLUTCH SHAFT

1шт.

29

3066862R91

BALL BEARING

CLUTCH SHAFT

1шт.

29

3066860R91

BALL BEARING

CLUTCH SHAFT

1шт.

29

3067617R91

BEARING, BALL

CLUTCH SHAFT, OPTIONAL

1шт.

30

1502168C1

SHAFT

CLUTCH

1шт.

31

574964R1

RING, SNAP

RING SNAP COUNTERSHAFT BRG

1шт.

32

379511R1

SNAP RING,#177, 1.657", Ext

COUNTERSHAFT BRG

1шт.

33

452883R91

BALL BEARING

COUNTERSHAFT

1шт.

33

13176D

BALL BEARING,2.257" ID x 3.3465" OD x 0.748"

COUNTERSHAFT

1шт.

33

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

COUNTERSHAFT

1шт.

33

67646C91

BALL BEARING

COUNTERSHAFT

1шт.

33

114577C91

BEARING, BALL,44.994 mm ID x 84.9925 mm OD x 18.94 mm

COUNTERSHAFT, OPTIONAL

1шт.

34

398268R1

BUSHING

RING SPACER, UP TO S/N 685/11024, 268/813 AND H85/3024

1шт.

34

398264R1

SNAP RING,#215, 2.026", Ext

RETAINING, 1ST SPEED DRIVE GEAR, FAST AND/OR SLOW, S/N 685/11025, 268/814 AND H85/3025 UP

1шт.

35

404089R2

SHAFT

SPEED TRASMISSION

1шт.

36

66152C1

PINION

GEAR, 1ST SPEED DRIVE -22T, SLOW SPEED TRAIN TYPE D

1шт.

36

404093R1

GEAR

GEAR, 1ST SPEED DRIVE -26T, FAST SPEED TRAIN TYPE B

1шт.

36

404095R1

GEAR

1ST SPEED DRIVE -23T, SPEED TRAIN TYPE A

1шт.

37

404093R1

GEAR

GEAR, 2ND SPEED DRIVE -26T, SLOW SPEED TRAIN TYPE D

1шт.

37

404092R1

PINION

GEAR, 2ND SPEED DRIVE -34T, FAST SPEED TRAIN TYPE B

1шт.

37

404094R1

PINION

GEAR, 2ND SPEED DRIVE -28T, SPEED TRAIN TYPE A

1шт.

38

404092R1

PINION

GEAR, 3RD SPEED DRIVE -34T, SLOW SPEED TRAIN TYPE D

1шт.

38

404091R1

PINION

GEAR, 3RD SPEED DRIVE -43T, FAST SPEED TRAIN TYPE B

1шт.

38

404092R1

PINION

GEAR, 3RD SPEED DRIVE -34T, SPEED TRAIN TYPE A

1шт.

39

404090R1

PINION

GEAR, CONSTANT MESH DRIVEN -39T

1шт.

40

398264R1

SNAP RING,#215, 2.026", Ext

CONSTANT MESH DRIVEN GEAR RETAINING

1шт.

41

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

COUNTERSHAFT FRONT

1шт.

41

527746R91

BEARING, NEEDLE

COUNTERSHAFT FRONT, OPTIONAL

1шт.

42

398259R1

LARGE PLATE

PLATE, LARGE RETAINER, IPTO DRIVEN SHAFT FRONT BRG CAP, INCLUDES SCREWS

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

43

398260R2

GASKET

IPTO DRIVEN SHAFT FRONT BRG RETAINER

1шт.

44

555601R1

RING, SNAP

RING SNAP IPTO DRIVEN SHAFT FRONT BRG RETAINER

1шт.

45

69384C91

BALL BEARING

IPTO DRIVEN SHAFT FRONT

1шт.

45

65353C91

BALL BEARING

IPTO DRIVEN SHAFT FRONT

1шт.

45

ST367

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

IPTO DRIVEN SHAFT FRONT

1шт.

45

67654

BEARING, IPTO DRIVEN SHAFT FRONT BALL, OPTIONAL

1шт.

46

404214R1

GEAR

IPTO DRIVEN -46T, TRACTORS W/DUAL SPEED IPTO, UP TO 4242, 6597 UP

1шт.

46

527770R1

GEAR

IPTO DRIVEN 46T AND TA DRIVE 33T, TRACTOR W/TORQUE AMPLIFIER FITTED W/DE-LUXE CAB, 4243 UP, UP TO 6596

1шт.

47

399837R1

SNAP RING,#118, 1.121", Ext

IPTO DRIVEN GEAR RETAINER

1шт.

48

536748R1

SHAFT ASSY.

IPTO DRIVEN

1шт.

1502169C91

FIP KIT

PACKAGE, FIELD IMPROVEMENT, AS REQUIRED, NOT ILLUSTRATED, CONSISTS OF

1шт.

398318R31

CAGE

ASSY, NOT ILLUSTRATED

1шт.

1502168C1

SHAFT

CLUTCH, NOT ILLUSTRATED

1шт.

71230C2

SHAFT

CLUTCH, NOT ILLUSTRATED

1шт.
