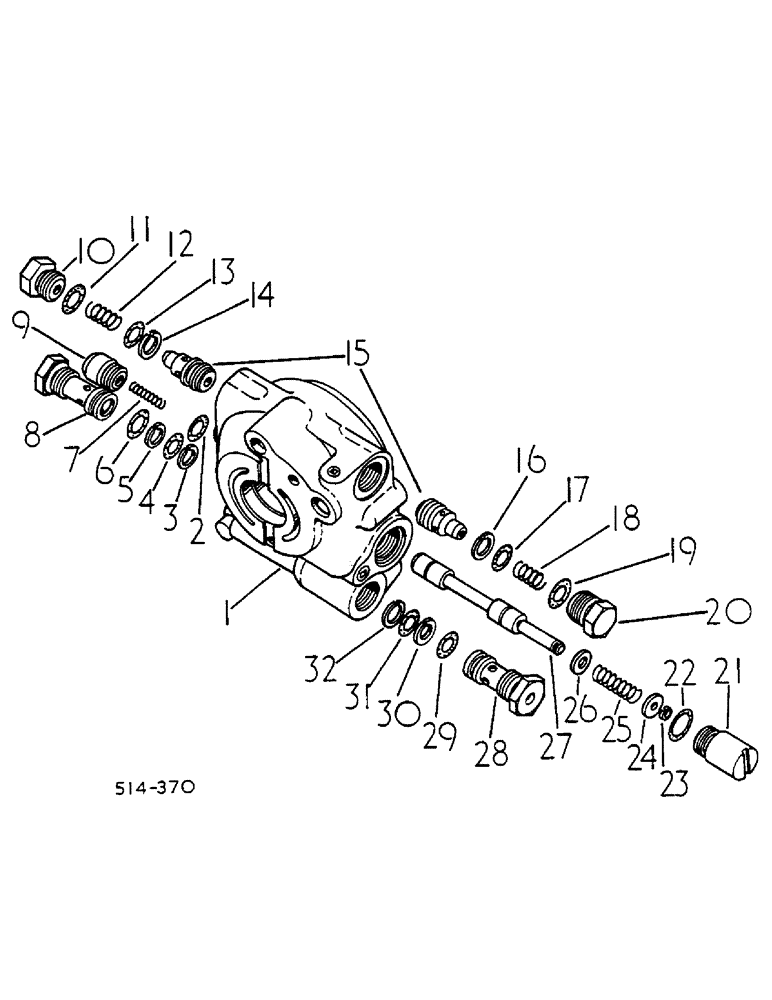

Запчасти Case IH 268 (07-026) - CENTRE SECTION VALVE (04) - Drive Train

BODY, W/VALVES CENTRE SECTION

1шт.

1

400987R92

BODY

ASSY, CENTRE SECTION

1шт.

CONSISTS OF 1 BODY, 2 O-RINGS 364885R1, 2 PLUGS, 1 PLUG, 1 PLUG 533356R11, 1 PLUG 396067R1, 1 RING 396066R1, 1 SPRING 531079R1, 1 SPRING 533357R1, 1 VALVE, 1 WASHER 396063R2, 1 WASHER 396064R2

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

393887R1

BACK-UP RING

CHECK VALVE

1шт.

4

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 X 1 X 3/32, CHECK VALVE

1шт.

5

393887R1

BACK-UP RING

CHECK VALVE

1шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE, CHECK VALVE

1шт.

7

533357R1

SPRING

SHUTTLE VALVE CENTERING

1шт.

8

531770R2

VALVE, PRESSURE RELI

EF ASSY

1шт.

9

533356R11

PLUG

ASSY, SHUTTLE VALVE SPRING

1шт.

10

400988R1

PLUG

1-3/16-12 STR THD O-RING BOSS

1шт.

11

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE -CHECK VALVE-

1шт.

12

70960R1

SPRING, CHECK VALVE RETENTION

1шт.

13

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 X 1 X 3/32, CHECK VALVE

1шт.

14

393887R1

BACK-UP RING

CHECK VALVE

1шт.

15

528778R1

CHECK VALVE

ASSY

2шт.

15

528345R1

CHECK VALVE

ASSY, OPTIONAL

2шт.

16

393887R1

BACK-UP RING

CHECK VALVE

1шт.

17

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 X 1 X 3/32

1шт.

18

70960C1

SPRING

CHECK VALVE RETENTION

1шт.

19

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE, CHECK VALVE

1шт.

20

400988R1

PLUG

1-3/16-12 STR THD O-RING BOSS

1шт.

21

396067R1

PLUG

SHUTTLE VALVE SPRING RETAINER

1шт.

22

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23

396066R1

SNAP RING,#46, .433", Ext

RING, SHUTTLE VALVE SNAP

1шт.

24

396064R2

WASHER

SHUTTLE VALVE OUTER

1шт.

25

531079R1

SPRING

SHUTTLE VALVE CENTERING

1шт.

26

396063R2

WASHER

SHUTTLE VALVE INNER

1шт.

27

406379R1

VALVE

CENTRE SECTION SHUTTLE -CODE A

1шт.

27

406380R1

VALVE

CENTRE SECTION SHUTTLE -CODE B

1шт.

27

406381R1

VALVE

CENTRE SECTION SHUTTLE -CODE C

1шт.

27

406382R1

VALVE

CENTRE SECTION SHUTTLE -CODE D

1шт.

27

406383R1

VALVE

SPARE PART CENTRE SECTION SHUTTLE -CODE E

1шт.

27

406384R1

VALVE

CENTRE SECTION SHUTTLE -CODE F

1шт.

28

531770R1

VALVE

ASSY, RELIEF

1шт.

29

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE, CHECK VALVE

1шт.

30

393887R1

BACK-UP RING

CHECK VALVE

1шт.

31

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3/16 X 1 X 3/32, CHECK VALVE

1шт.

32

393887R1

BACK-UP RING

1шт.

393885R91

GASKET KIT

PACKAGE, RELIEF VALVE SEAL, NOT ILLUSTRATED, CONSISTS OF 4 O-RINGS 20947R1, 6 RINGS 393887R1, 4 O-RINGS 297459R1

1шт.
