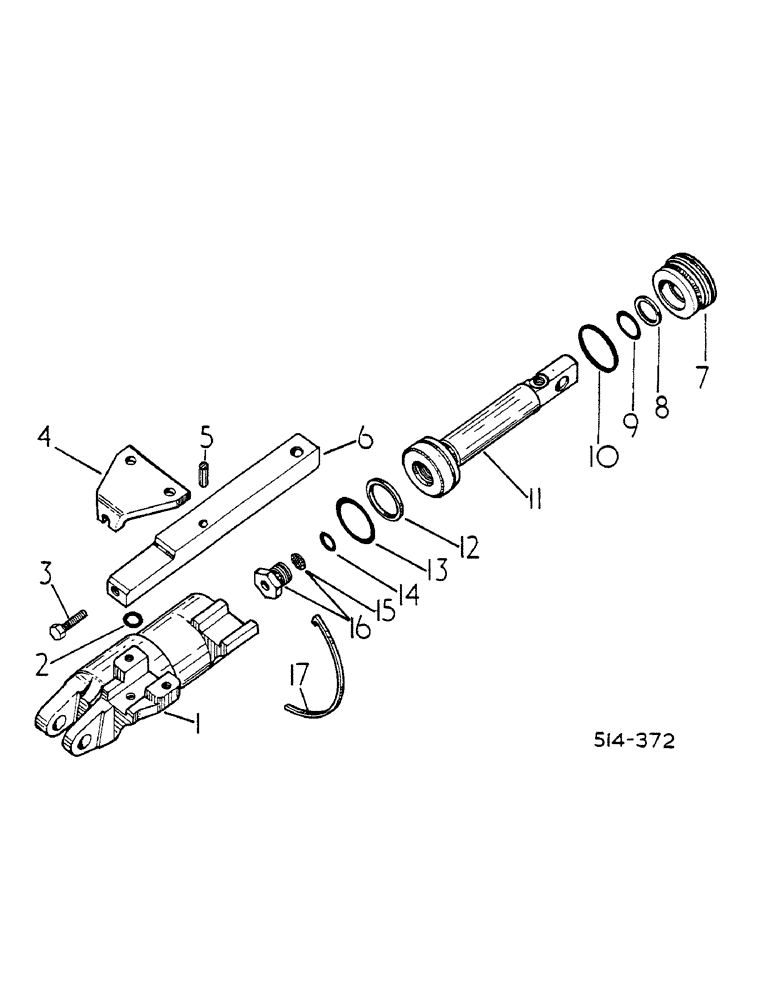

Запчасти Case IH 268 (07-022) - PUMP SERVO CYLINDER (04) - Drive Train

1

401079R1

BODY

1шт.

2

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

396108R2

BOLT,Hex, 5/16" - 24 x 1.125"

ADJ BLOCK

1шт.

4

401067R1

SPACER

BRACKET, ADJ BLOCK, INCLUDES SCREWS

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

2шт.

5

69786C1

PIN

DOWEL 5/16 X 7/8

1шт.

6

401086R1

BLOCK

AGRICULTURAL MODELS

1шт.

6

401086R12

BLOCK ASSY.

VARIABLE ORIFICE ADJ, INDUSTRIAL MODELS

1шт.

7

401084R1

GUIDE

1шт.

8

405310R1

RING

GUIDE SEALING INNER

1шт.

9

347070R1

O-RING,1.301" ID x 0.07" Width

1-5/16 X 1-7/16 X 1/16

1шт.

10

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1-5/8 X 1-13/16 X 3/32

1шт.

11

401080R1

PISTON

1шт.

12

405311R1

RING

PISTON SEALING

1шт.

13

379141R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

1-3/8 X 1-9/16 X 3/32

1шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

15

529960R1

STRAINER ELEMENT

1шт.

16

401082R11

PLUG

ASSY, FIXED ORIFICE, AGRICULTURAL MODELS

1шт.

16

535851R11

PLUG

ASSY, FIXED ORIFICE, INDUSTRIAL MODELS

1шт.

17

388968R1

ELECTRICAL WIRE

WIRE RETAINING

1шт.

401088R91

STRIPPER PACKAGE

PUMP SERVO CYL. O-RING AND SEAL, NOT ILLUSTRATED, CONSISTS OF

1шт.

379141R1

O-RING,0.103" Thk x 1.362" ID, -126, Cl 5, 75 Duro

NOT ILLUSTRATED

1шт.

405311R1

RING

NOT ILLUSTRATED

1шт.

470828R1

SPARE PART O-RING, NOT ILLUSTRATED

1шт.

405310R1

RING

NOT ILLUSTRATED

1шт.

328138R1

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

NOT ILLUSTRATED

1шт.

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Not Illustrated

1шт.

396109R1

RING

NOT ILLUSTRATED

1шт.

396751R1

O-RING, NOT ILLUSTRATED

1шт.

134751R1

SLEEVE, NOT ILLUSTRATED

1шт.

347070R1

O-RING,1.301" ID x 0.07" Width

NOT ILLUSTRATED

1шт.
