Запчасти Case IH 268 (07-015) - MOTOR AND PUMP SERVO CYL WITH CONNECTIONS (04) - Drive Train

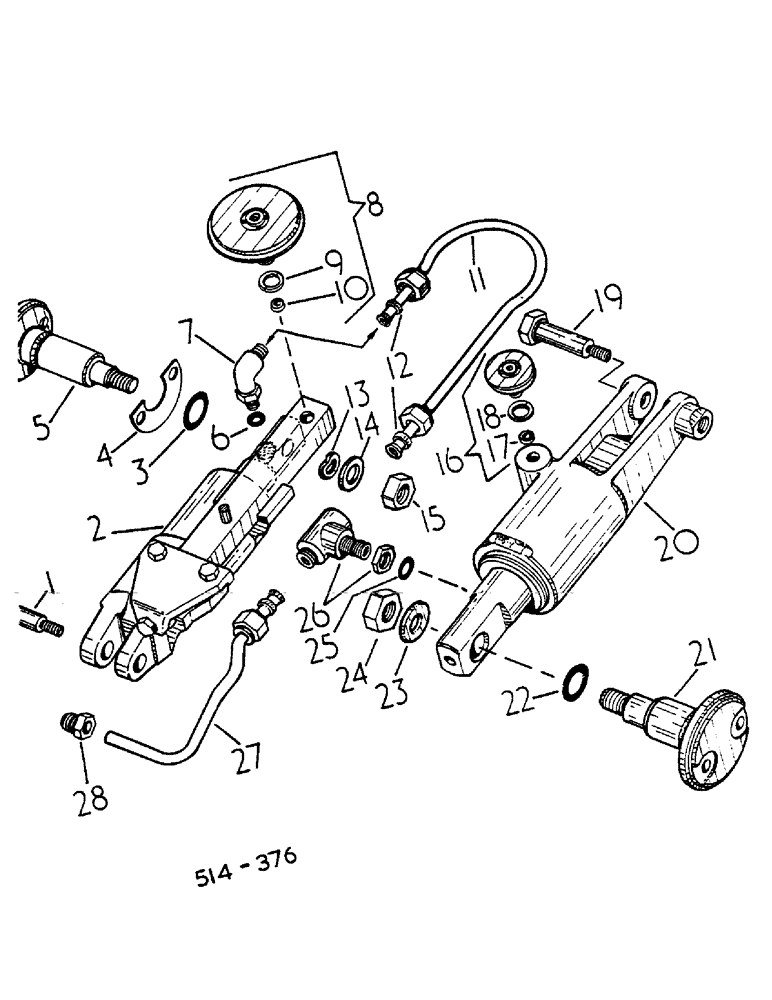

Схема запчастей Case IH 268 - (07-015) - MOTOR AND PUMP SERVO CYL WITH CONNECTIONS (04) - Drive Train
16
28
17
23
21
3
11
6
12
15
8
4
13
26
25
20
7
22
14
19
1
10
9
2
5
27
18
24

Артикул

Название

Примечание

Количество

1

396119R1

BOLT,Shldr, Hex, 1/2" - 13 x 2.38"

HEX HD SHOULDER

1шт.

2

CYLINDER ASSY, PUMP SERVO, FOR DETAILS SEE LIST OF PARTS UNDER DETAIL PUMP SERVO CYLINDER

1шт.

3

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 X 1 X 3/32

1шт.

4

401036R91

SHIM KIT

PACKAGE, PUMP SERVO TRUNNION SHIM, CONSISTS OF 1 SHIM .005, 1 SHIM .007, 1 SHIM .020

1шт.

5

401035R1

TRUNNION

PUMP SERVO, INCLUDES SCREWS

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1/4 OD tube, Pump servo

1шт.

7

401048R1

ELBOW

ADJ FLEX 5/16 TUBE, PUMP SERVO

1шт.

8

401049R92

PLUG

PUMP CYL CONTROL W/RING, AGRICULTURAL

1шт.

8

530027R92

PLUG

PUMP CYL CONTROL W/RING, INDUSTRIAL 2, AGRICULTURAL 1

1шт.

9

403989R1

SPRING WASHER

SPRING

1шт.

10

396109R1

RING

1шт.

11

401047R11

TUBE ASSY.

PUMP SERVO

1шт.

12

134630H1

SLEEVE

RUBBER FOR 5/16 OD TUBE

1шт.

13

401040R1

SPRING WASHER

SPRING

1шт.

14

401041R1

WASHER

PUMP SERVO TRUNNION

1шт.

15

25-118

NUT,1/2"-20, G5

1/2-20 HEX

1шт.

16

530027R92

PLUG

MOTOR CYLINDER CONTROL W/RING

2шт.

17

396109R1

RING

1шт.

18

403989R1

SPRING WASHER

SPRING

1шт.

19

396119R1

BOLT,Shldr, Hex, 1/2" - 13 x 2.38"

HEX HD SHOULDER

1шт.

20

CYLINDER ASSY, MOTOR SERVO, FOR DETAILE SEE LIST OF PARTS UNDER DETAIL MOTOR SERVO CYLINDER

1шт.

21

401043R1

TRUNNION

MOTOR SERVO, INCLUDES SCREWS

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

22

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 X 1-1/4 X 3/32

1шт.

23

401044R1

WASHER

1шт.

24

425-1110

NUT,5/8"-18, G5

1шт.

25

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5/16 OD tube, Motor servo tee

1шт.

26

401046R1

TEE

MOTOR SERVO

1шт.

27

401045R11

TUBE ASSY.

MOTOR SERVO SUPPLY

1шт.

28

222-503

TUBE NUT,1/2"-20

1/2-20 HI-DUTY FITTING

1шт.

Выбрано товаров: 31
