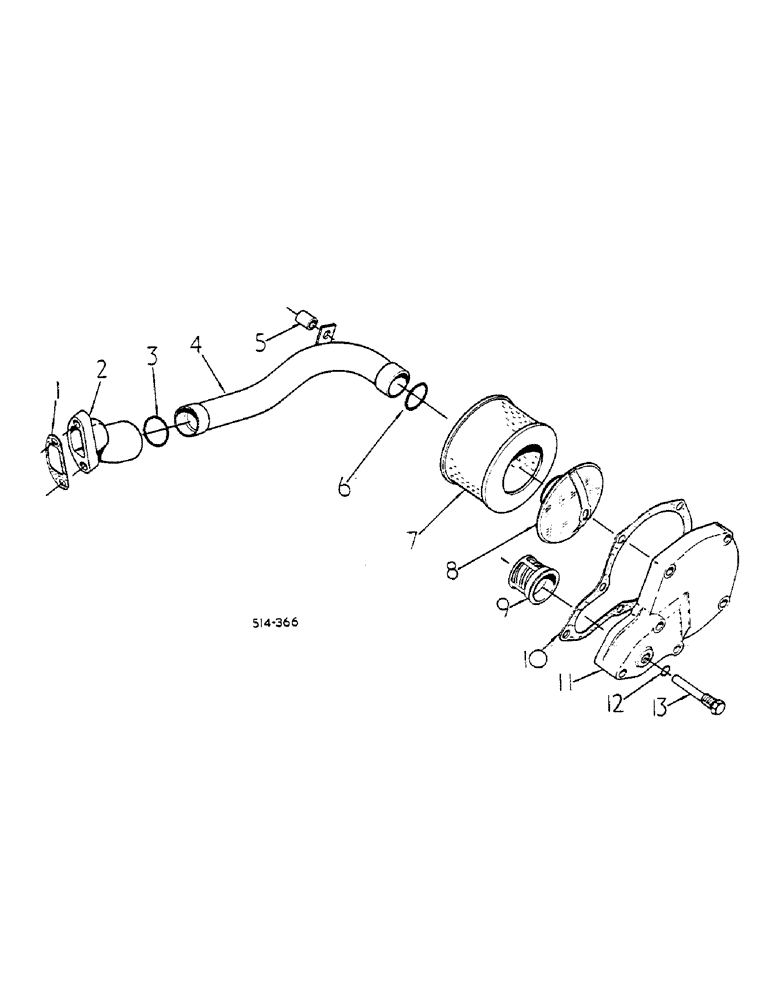

Запчасти Case IH 268 (07-013) - HYDRO. SUCTION TUBE, FILTER AND COVER (04) - Drive Train

1

401033R1

GASKET

SUCTION PIPE ELBOW

1шт.

2

401032R1

ELBOW

SUCTION PIPE

1шт.

3

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 X 1-7/8 X 1/8

1шт.

4

401074R1

TUBE ASSY.

SPARE PART SUCTION, INCLUDES SCREW AND WASHER

1шт.

277677R1

LOCK SCREW

W/NYLON PELLET INSERT 3/8-16 X 1-5/8 HEX HD CAP

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051)

1шт.

5

401077R1

BUSHING

SUCTION PIPE SUPPORT

1шт.

6

360610R1

O-RING,1.609" ID x 0.139" Width

1-5/8 X 1-7/8 X 1/8

1шт.

7

65126C92

ELEMENT

PACKAGE, FILTER, SERVICE

1шт.

8

386121R92

VALVE

FILTER BY-PASS

1шт.

9

401072R1

VALVE

ASSY, FILTER SHUT OFF

1шт.

10

401070R1

GASKET

FILTER COVER

1шт.

11

401069R1

COVER

FILTER

1шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Incl. Screws

3шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

BOLT

1шт.

13

401071R1

BOLT,Hex, 1/2" - 20 x 2 3/4"

VALVE SHUTOFF

1шт.

12

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

Valve shut-off, Includes bolt

1шт.
