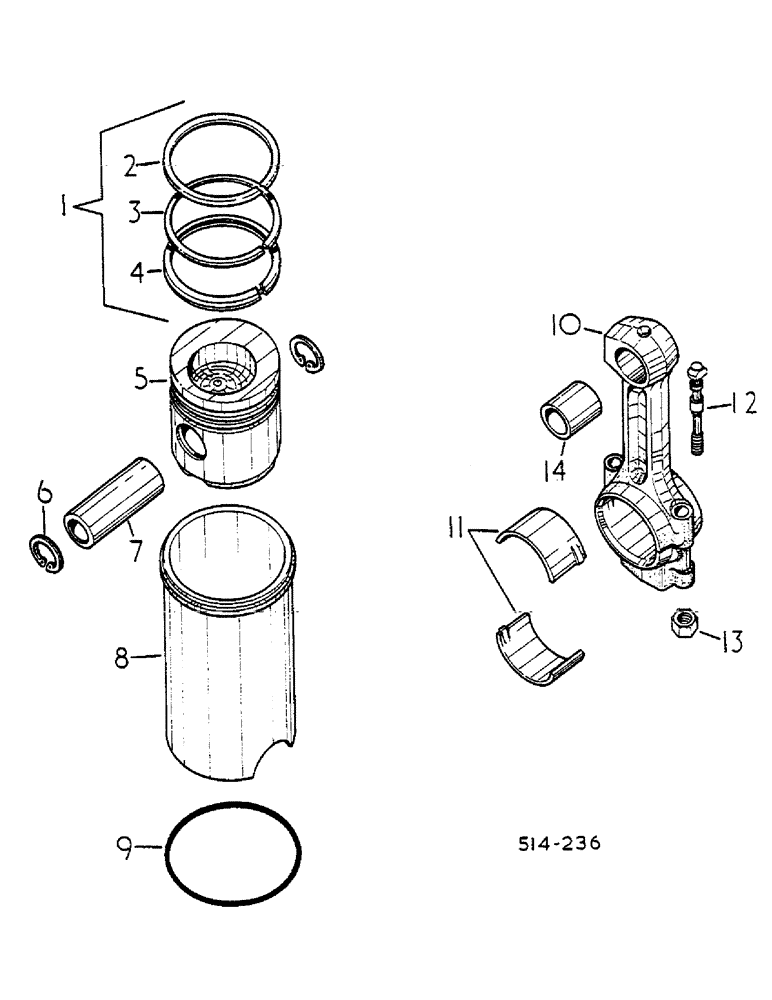

Запчасти Case IH 268 (12-055) - CONNECTING ROD, PISTON AND SLEEVE, D-239 ENGINE Power

1

3218416R91

PISTON RING SET

UP TO 668610

1шт.

1

3139594R91

PISTON RING

668611 UP, USED W/3 RING PISTONS

1шт.

2

RING, COMPRESSION FIRST, USED W/3 RING PISTONS, ORDER SET 3139594R91

4шт.

3

RING, COMPRESSION, SECOND, USED W/3 RING PISTONS, ORDER SET 3139594R91

4шт.

4

RING, COMPRESSION, THIRD, USED W/3 RING PISTONS, ORDER SET 3139594R91

4шт.

5

3218759R93

ELEC CONNECTOR

PISTON ASSY, W/SLEEVE, UP TO 668610

4шт.

5

3139591R95

PISTON ASSY.

W/SLEEVE, 668611 UP, 3 PISTON RING

1шт.

6

933327R1

SNAP RING,M36, Int

PISTON PIN RETAINER

8шт.

7

3055217R2

PISTON PIN

PISTON

4шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE, CYL.

4шт.

9

3228344R1

SEALING RING,5mm Thk x 110mm ID

CYLINDER SLEEVE, BLACK W/FOUR RED STRIPES, UP TO ENG SERIAL NO. 123041 UP

4шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

CYLINDER SLEEVE, BLACK W/FOUR GOLD STRIPES, ENG SERIAL NO. 123041 UP

4шт.

10

3055030R24

ROD, CONNECTING

ASSY, W/TWO BOLTS AND BUSHING

4шт.

11

3055351R91

BEARING ASSY

ASSY, CONNECTING ROD

4шт.

12

3055033R11

BOLT

Connecting rod w/nut

8шт.

13

NSS

NOT SOLD SEPARAT

NUT, CONNECTING ROD BOLT

8шт.

14

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

BUSHING, PISTON PIN

4шт.
