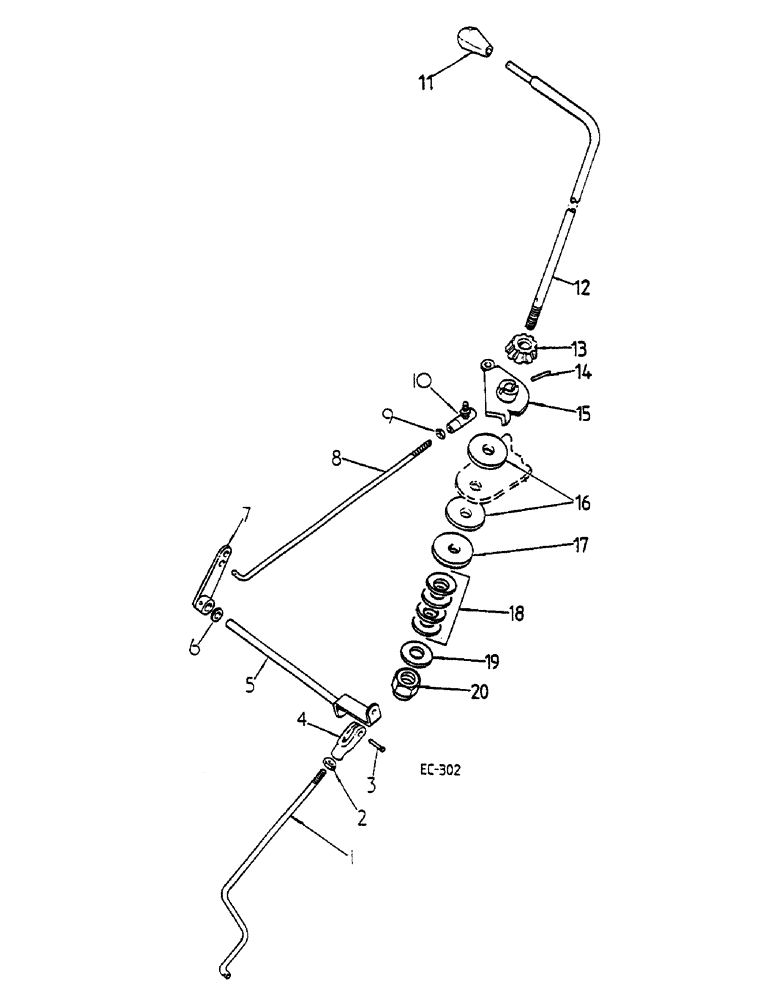

Запчасти Case IH 268 (12-038) - GOVERNOR CONTROLS, BOSCH, 685/10581 UP, 268/801 UP, H84/3008 UP Power

1

528334R3

ROD

FRONT, INCLUDES PIN

1шт.

432-48

COTTER PIN,1/16" x 1/2"

1/16 X 1/2

1шт.

2

114492

JAM NUT,Jam, 1/4"-28, G5

1/4 X .766

1шт.

3

114783

PIN

1шт.

4

116543

SHAFT

SPARE PART CLEVIS

1шт.

5

528325R2

ARM

ASSY

1шт.

6

Q1597

WASHER

PLAIN

1шт.

6

20285R2

WASHER, PLAIN, OPTIONAL

1шт.

7

539572R2

LEVER

ASSY, BOSCH CR PUMPS, INCLUDES PIN

1шт.

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

8

528336R2

ROD

GEAR, INCLUDES PIN

1шт.

432-48

COTTER PIN,1/16" x 1/2"

ROLL 5/32 X 7/8

1шт.

9

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

10

191474

BALL JOINT

1шт.

10

192227

BALL JOINT

1шт.

10

27258R1

BALL JOINT

OPTIONAL, INCLUDES NUTS AND WASHER

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

25-114

NUT,1/4"-28, G5

1/4-28

1шт.

103319

LOCK WASHER,1/4"

1шт.

11

402584R1

BUTTON

KNOB

1шт.

12

3121391R2

ROD

GOVERNOR CONTROL HANDLE

1шт.

13

528290R1

GUIDE RING

COLLAR, INCLUDES SCREW

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

1шт.

14

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

15

528291R3

ARM ASSY.

1шт.

16

3123275R1

FRICTION WASHER

DISC

2шт.

17

22042R1

WASHER

1шт.

18

1500778C1

DISC

SPRING

4шт.

19

22187R1

WASHER

1шт.

20

894980H1

LOCK NUT

1/2 UNF

1шт.
