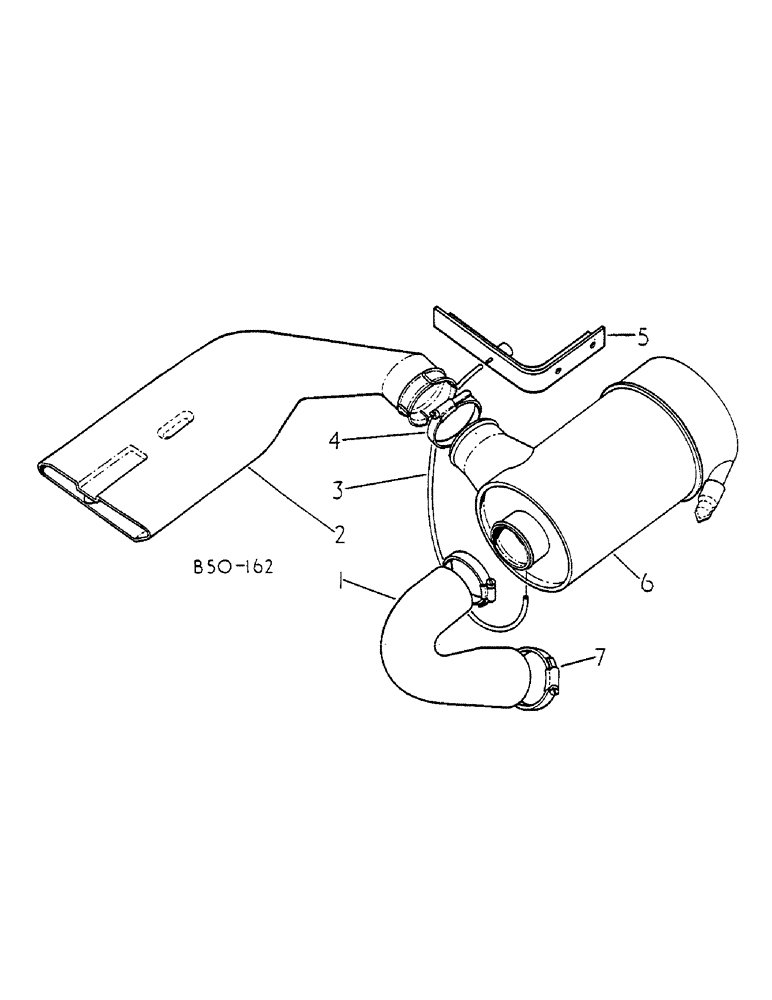

Запчасти Case IH 268 (12-004) - AIR CLEANER AND CONNECTIONS, 684/3709 UP, 268/504 UP, H84/1050 UP Power

1

402622R1

INTAKE AIR HOSE,69.80 mm ID x 194.30 mm

Air Cleaner Outlet

1шт.

2

529864R1

DUCT

AIR INLET

1шт.

3

3123825R2

TUBE

NYLON

1шт.

4

21423R1

CLAMP

3-5/16 HOSE

1шт.

5

3121420R1

SUPPORT

BRACKET, AIR CLEANER MOUNTING, INCLUDES SCREWS, WASHERS AND CLIP

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

3116918R1

CABLE CLIP

1шт.

6

CLEANER ASSY, AIR, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF AIR CLEANER, INCLUDES SCREWS, NUTS AND WASHERS

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

2шт.

7

539994R1

CLAMP

NO. 350S

2шт.
