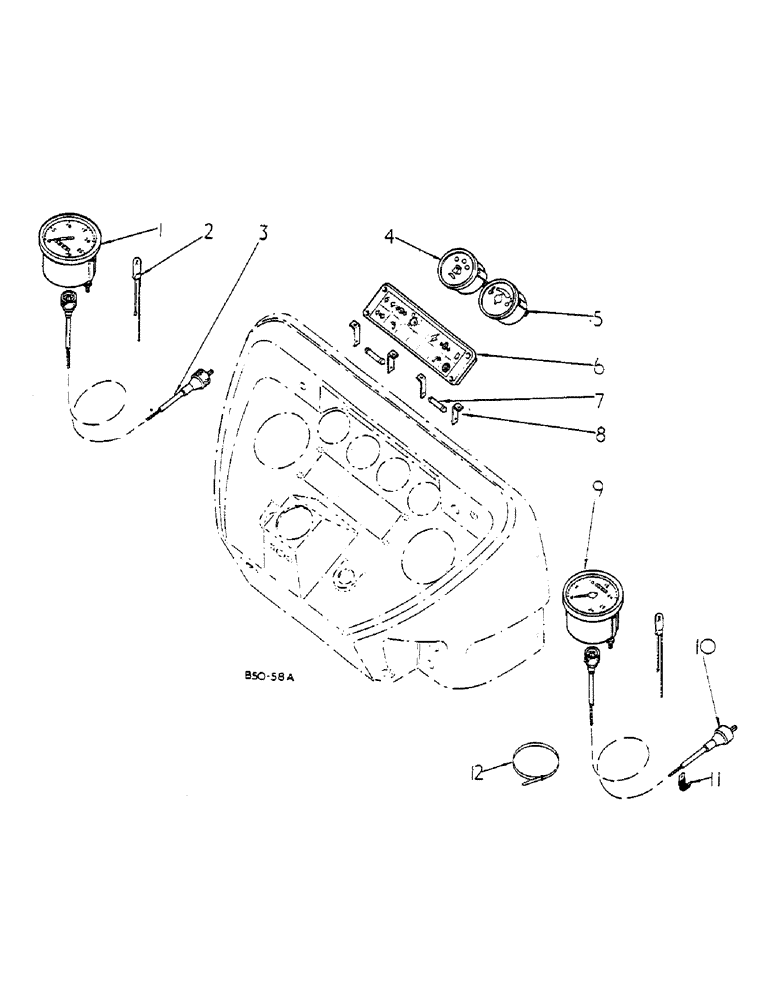

Запчасти Case IH 268 (11-004) - INSTRUMENTS Instruments

1

3121926R91

TACHOMETER

1шт.

1

3121927R91

TACHOMETER

1шт.

1

528364R92

TACHOMETER

OPTIONAL, INCLUDES PRODUCT GRAPHIC AND DECALS

1шт.

1093093R1

DECAL

SPEED CHART MPH, FOR MACHINES W/BT DRIVE TRAIN

1шт.

1093094R1

DECAL

SPEED CHART KPH, FOR MACHINES W/BT DRIVE TRAIN

1шт.

1093109R1

PRODUCT GRAPHIC

SPARE PART SPEED CHART MPH, FOR MACHINES W/DT DRIVE TRAIN

1шт.

1093110R1

PRODUCT GRAPHIC

SPEED CHART KPH, FOR MACHINES W/DT DRIVE TRAIN, FOR MACHINES W/18.4/15-30, 12.4/11-38, 16.9/14-34, 13.6/12-38, 13.6/12-36, 13.6R36, 13.8R38, REAR TYRES

1шт.

1093221R1

DECAL

SPEED CHART MPH, FOR MACHINES W/BT DRIVE TRAIN

1шт.

1093222R1

DECAL

SPEED CHART KPH, FOR MACHINES W/BT DRIVE TRAIN

1шт.

1093223R1

PRODUCT GRAPHIC

SPEED CHART MPH, FOR MACHINES W/DT DRIVE TRAIN

1шт.

1093224R1

DECAL

SPARE PART SPEED CHART KPH, FOR MACHINES W/DT DRIVE TRAIN, FOR MACHINES W/14.9/13-30, 16.9/14-30, REAR TYRES

1шт.

1093219R1

PRODUCT GRAPHIC

SPEED CHART MPH, FOR MACHINES W/AR DRIVE TRAIN

1шт.

1093220R1

PRODUCT GRAPHIC

SPARE PART SPEED CHART KPH, FOR MACHINES W/AR DRIVE TRAIN

1шт.

1

1093213R1

PRODUCT GRAPHIC

SPEED CHART MPH, FOR MACHINES W/BR DRIVE TRAIN

1шт.

1

1093214R1

PRODUCT GRAPHIC

SPEED CHART KPH, FOR MACHINES W/BR DRIVE TRAIN, 4-WHEEL DRIVE, W/12-4/11-36, 13.6/12-36, 13.6/12-38, 16.9R30, 13.6R36, REAR TYRES

1шт.

2

529231R91

LAMP BASE

ASSY, TACHOMETER/SPEEDOMETER, INCLUDES LAMP

2шт.

529233R1

LAMP

12V-3W WEDGE-TYPE CAPLESS

8шт.

3

529234R1

CABLE,1480.32mm L

CABLE ASSY, TACHO. DRIVE, INCLUDES STRAP

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP Tacho

2шт.

3

537494R91

FLEXIBLE DRIVE SHAFT

CABLE ASSY, TACHO DRIVE, SUPER DE-LUXE CAB

1шт.

4

3121239R1

FUEL GAUGE

ASSY, FUEL, A.C. DELCO

1шт.

4

3129840R1

FUEL GAUGE

ASSY, ICKNIELD, OPTIONAL

1шт.

5

3121240R1

ELECTRICAL GAUGE

ASSY, WATER TEMP, A.C. DELCO

1шт.

5

3127959R1

ELECTRICAL GAUGE

ASSY, WATER TEMP, ICKNIELD, OPTIONAL

1шт.

6

1502006C1

HOLDER

WARNING LIGHT BULB, INCLUDES SCREWS, NUTS AND LAMPS

1шт.

3121718R1

SCREW

NO 6-32 X 5/8 CS HD

4шт.

3121717R1

LOCK NUT

LOKUT

4шт.

529233R1

LAMP

12V-3W WEDGE TYPE CAPLESS

6шт.

7

710196R1

BULB,C5W, 12V, 5W

Festoon

2шт.

8

3121705R1

CONTACT HOUSING

LAMP, INCLUDES SCREWS AND TERMINALS

4шт.

3121704R1

SCREW

NO 4-40 X 5/16 SLT FIL HD

4шт.

3121703R1

TERMINAL CONNECTOR

1/4 BLADE

4шт.

9

3121968R91

SPEEDOMETER

ASSY

1шт.

9

3121969R91

SPEEDOMETER

ASSY, OPTIONAL, USED W/12/53 BEVEL SET AND 16.9/14-28 REAR TYRES

1шт.

9

3121966R91

SPEEDOMETER

ASSY

1шт.

9

3121967R91

SPEEDOMETER

ASSY, OPTIONAL, USED W/12/53 BEVEL SET AND 13.6/12-36, 16.9 9/14-34, 16.9/14-30, REAR TYRES

1шт.

9

3123431R1

CABLE

SPEEDO TO HEAT IND EARTH, FLYING LEAD

1шт.

10

529235R2

FLEXIBLE DRIVE SHAFT

CABLE ASSY

1шт.

11

395228R1

CABLE CLIP

DRIVE, INCLUDES WASHER AND NUT

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

12

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP SPEEDO DRIVE CABLE

1шт.
