Запчасти Case IH 268 (08-036) - PLOUGH LIGHT, UP TO 684/8848, H84/2243, 268/596 (06) - ELECTRICAL

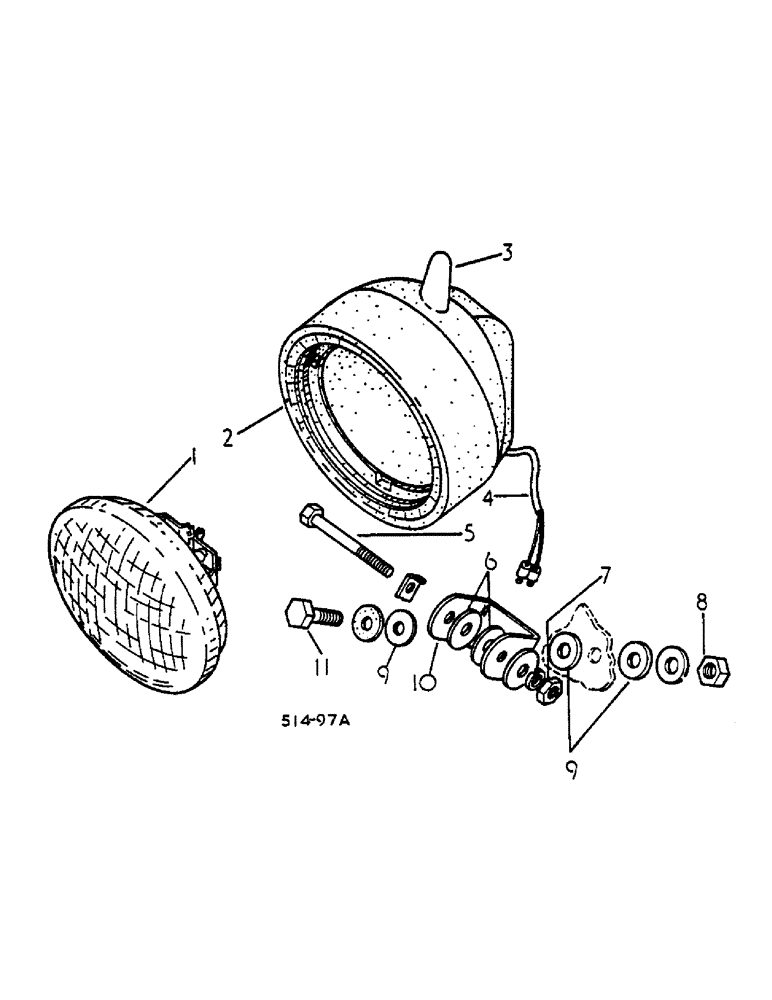

Схема запчастей Case IH 268 - (08-036) - PLOUGH LIGHT, UP TO 684/8848, H84/2243, 268/596 (06) - ELECTRICAL
8
5
2
3
7
11
1
9
6
9
4
10

Артикул

Название

Примечание

Количество

3123176R91

INTERIOR LIGHT

PLOUGH, CONSISTS OF ITEMS 1 - 7 INCL

1шт.

1

535850R1

LAMP

SEAL BEAM

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING, CPTE. RUBBER, INCLUDES SWITCH

1шт.

3112688R1

SWITCH

1шт.

3

3116610R1

COVER

SWITCH

1шт.

4

HARNESS, CABLE

1шт.

5

181579

SCREW,Hex, 1/4" - 28 x 2", Gr 5

BOLT 1/4 UNF X 2 HEX HD, INCLUDES WASHER

1шт.

3072945R1

WASHER

TAB

1шт.

6

3112690R1

WASHER

NYLON

2шт.

7

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4 UNF HEX, INCLUDES WASHERS

1шт.

16559R1

WASHER,1/4"

17/64 X 5/8

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

Includes washer

1шт.

120394

WASHER,3/8", SAE

FLAT STEEL

1шт.

9

3112401R1

WASHER

NYLON

3шт.

10

3108515R1

SUPPORT

BRACKET

1шт.

11

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Includes Washer

1шт.

120394

WASHER,3/8", SAE

FLAT STEEL

1шт.

531625R1

GROMMET

PLOUGH LAMP CABLE, NOT ILLUSTRATED

1шт.

3115463R1

GROMMET

FENDER SIDE SHEET TOP, FLAT TOP FENDERS, NOT ILLUSTRATED

2шт.

Выбрано товаров: 20
