Запчасти Case IH 268 (08-022) - CAB LIGHT SUPPORTS AND 7-PIN SOCKET (06) - ELECTRICAL

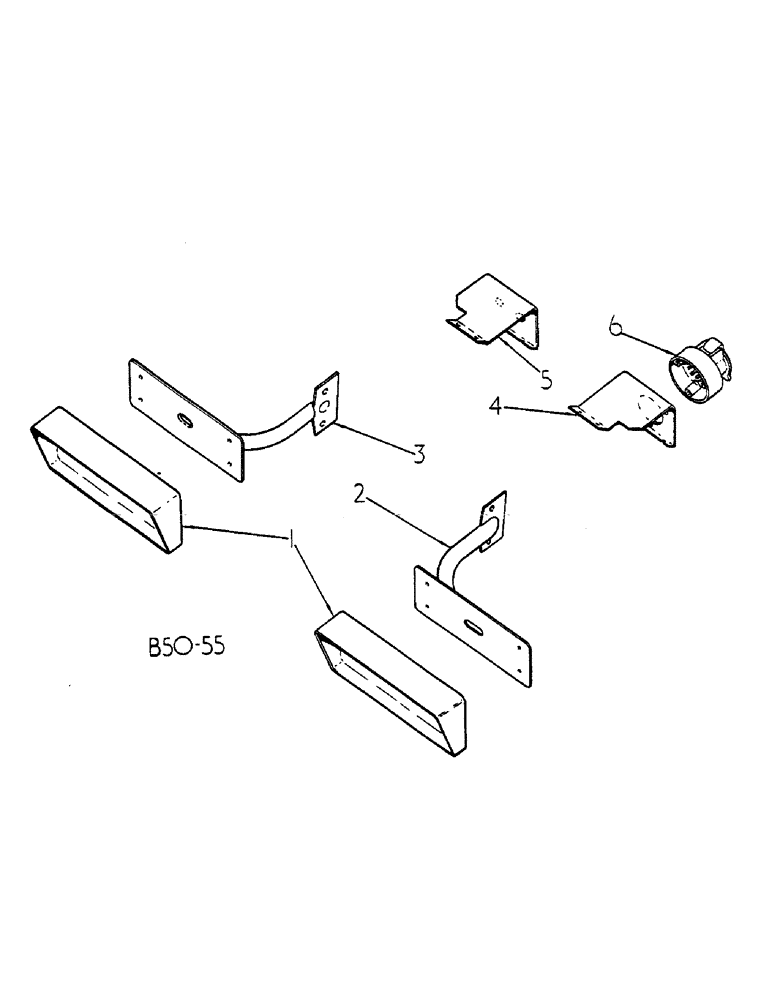

Схема запчастей Case IH 268 - (08-022) - CAB LIGHT SUPPORTS AND 7-PIN SOCKET (06) - ELECTRICAL
5
6
4
1
3
2

Артикул

Название

Примечание

Количество

1

3123140R1

COVER

SIDE AND FLASHER LIGHTS

1шт.

2

3123165R1

TUBE

ASSY, L.H. LIGHT SUPPORT, INCLUDES NUTS AND WASHERS

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

1/4 TOOTH

2шт.

3

3123166R1

SUPPORT ASSY.

TUBE, R.H. LIGHT, INCLUDES NUTS AND WASHERS

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

1/4 TOOTH

2шт.

4

3123184R1

BRACKET

L.H. 7-PIN SOCKET, INCLUDES SCREWS, NUTS AND WASHERS

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

120217

LOCK WASHER,#10

4шт.

5

3123185R1

BRACKET

R.H. PLOUGH LIGHT, INCLUDES SCREWS, NUTS AND WASHERS

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

120217

LOCK WASHER,#10

4шт.

6

3112294R91

SOCKET/RECEPTACLE

7-PIN, INCLUDES SCREWS AND NUTS

1шт.

27683R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/4"

NO. 10-16 X 1-1/4 PAN HD TAP

3шт.

3123171R1

NUT

NO. 10 SPIRE FASTENER

3шт.

Выбрано товаров: 18
