Запчасти Case IH 268 (13-062) - SEAT AND SLIDES, GRAMMER (05) - SUPERSTRUCTURE

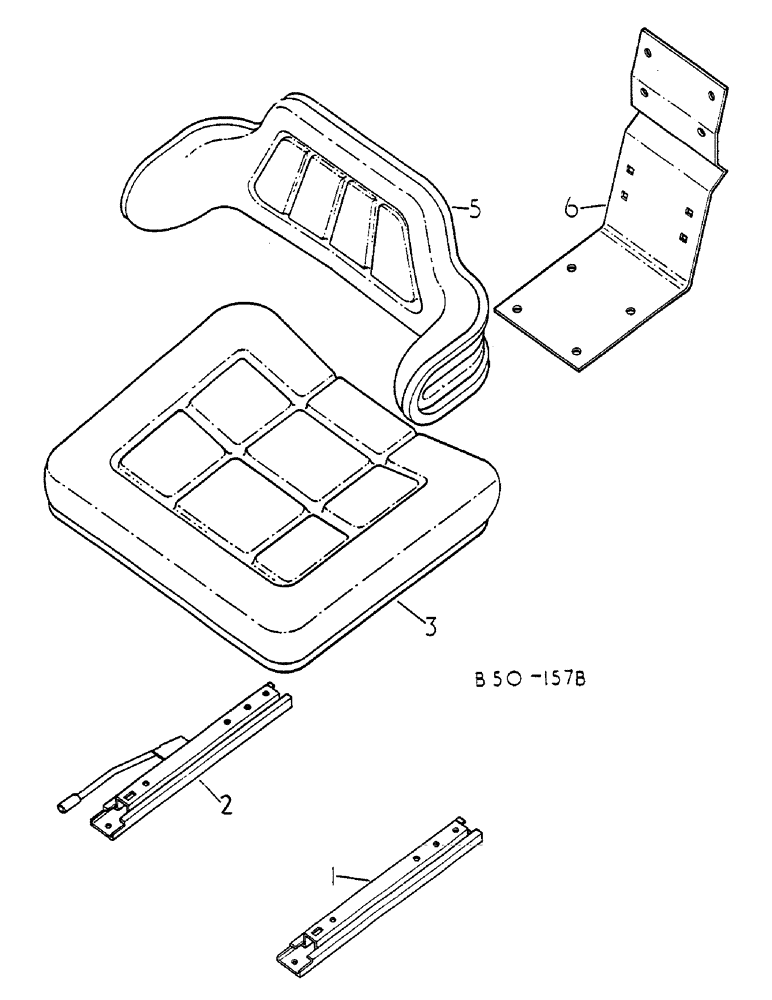

Схема запчастей Case IH 268 - (13-062) - SEAT AND SLIDES, GRAMMER (05) - SUPERSTRUCTURE
1
5
3
6
2

Артикул

Название

Примечание

Количество

121423R91

SEAT ASSY, SUSPENSION, P. V. C.

1шт.

3121424R91

SEAT

ASSY, SUSPENSION, CLOTH, BRAMMER, ORDER 3121423R92 OR 3121424R92

1шт.

3121423R92

SEAT

ASSY, SUSPENSION, P. V. C., BRAMMER REF 113182

1шт.

3121424R92

SEAT ASSY.

SUSPENSION, CLOTH, BRAMMER REF 113183

1шт.

3123562R1

SPACER

SEAT, INCLUDES SCREWS AND WASHERS

4шт.

3123563R1

SCREW

5/16-18 X 1-1/2

4шт.

3123564R1

LOCK WASHER

5/16

4шт.

1

3234898R1

STUD

RAIL, ADJUSTABLE, INCLUDES SCREWS AND WASHERS

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

M8 X 15

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

Front

1шт.

934676R1

LOCK WASHER,M8

REAR, RAIL TO PLATE

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

M8 X 20

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

934674R1

WASHER,M10.5 x 30 x 2.5

2шт.

705424R1

WASHER

SPARE PART RAIL TO SEAT

2шт.

2

3234897R1

RAIL, ADJUSTABLE W/HANDLE, INCLUDES SCREWS AND WASHERS

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

M8 X 15

2шт.

934675R1

WASHER,M8 x 16 x 1.6

FRONT, RAIL TO PLATE

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

2шт.

905424R1

WASHER,M10.5 x 25 x4

REAR

1шт.

934674R1

WASHER,M10.5 x 30 x 2.5

2шт.

3

3125773R1

CUSHION, SEAT

P.V.C.

1шт.

3

3125774R1

CUSHION, SEAT

SPARE PART CLOTH, GRAMMER

1шт.

3

3125997R1

CUSHION, SEAT

P. V. C., FITTED TO SEAT CPTE. 113182

1шт.

3

3125999R1

CUSHION, SEAT

CLOTH, FITTED TO SEAT CPTE. 113183, INCLUDES NUTS

1шт.

3129992R1

WASHER

NUT

4шт.

3125775R1

BACKREST

1шт.

3125776R1

BACKREST

GRAMMER

1шт.

4

NOT USED

1шт.

5

3125996R1

BACKREST

CUSHION, P.V.C., FITTED TO SEAT CPTE. 113182

1шт.

5

3125998R1

BACKREST

CUSHION, CLOTH, FITTED TO SEAT CPTE. 113183

1шт.

3125777R1

FRAME

GRAMMER

1шт.

6

3125995R1

FRAME

SEAT, FITTED TO SEAT CPTE. 113182 AND 113183

1шт.

Выбрано товаров: 34
