Запчасти Case IH 268 (13-052) - INSULATORS, SAFETY CAB (05) - SUPERSTRUCTURE

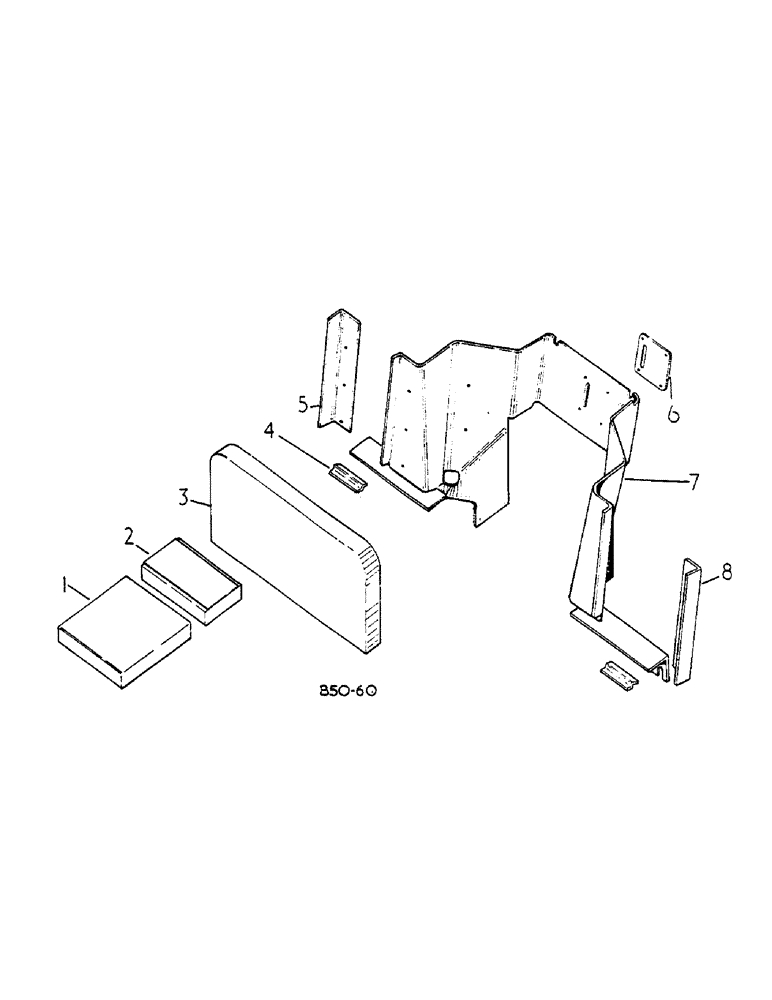

Схема запчастей Case IH 268 - (13-052) - INSULATORS, SAFETY CAB (05) - SUPERSTRUCTURE
8
6
3
2
7
5
4
1

Артикул

Название

Примечание

Количество

1

3123080R1

INSULATOR

REAR HOOD FRONT, HYDROSTATIC MACHINES ONLY

1шт.

2

3123081R1

INSULATOR

REAR HOOD REAR, HYDROSTATIC MACHINES ONLY

1шт.

3

3118459R1

INSULATOR

BATTERY TRAY

1шт.

4

3118842R1

PLATE

SPARE PART RETAINING

2шт.

5

3123074R1

RETAINER

INSULATOR SIDE R.H.

1шт.

6

3116845R1

PLATE

SPARE PART ESCUTCHEON, UP TO 685/10156, INCLUDES SCREWS

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX. HD. TAP

4шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL, UP TO 685/10156

4шт.

7

3123072R4

INSULATOR

STEERING SUPPORT

1шт.

7

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

NO. 10-24 X 1/2 HEX. HD. CAP, INCLUDES SCREW

2шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL

2шт.

7

30481R1

WASHER,M5 x 10 x 1

5.5 ID X 10.0 OD X 1 MM PLAIN

2шт.

7

3123088R3

INSULATOR

STEERING SUPPORT, SEKURA ROOF HEATER, INCLUDES SCREWS

1шт.

167214

CHAIN

SCREW 12-24 X 3/8 ZND TAP

4шт.

269918R1

SCREW 1/4-20 X 3/4 HEX HD TAP

4шт.

8

3123073R1

RETAINER

SPARE PART INSULATOR SIDE L.H.

1шт.

3123774R1

INSULATOR

INSTRUMENT PANEL, HYDROSTATIC MACHINES ONLY, NOT ILLUSTRATED

1шт.

Выбрано товаров: 17
