Запчасти Case IH 268 (13-038) - CAB MOUNTINGS, MACHINES FITTED WITH CAB (05) - SUPERSTRUCTURE

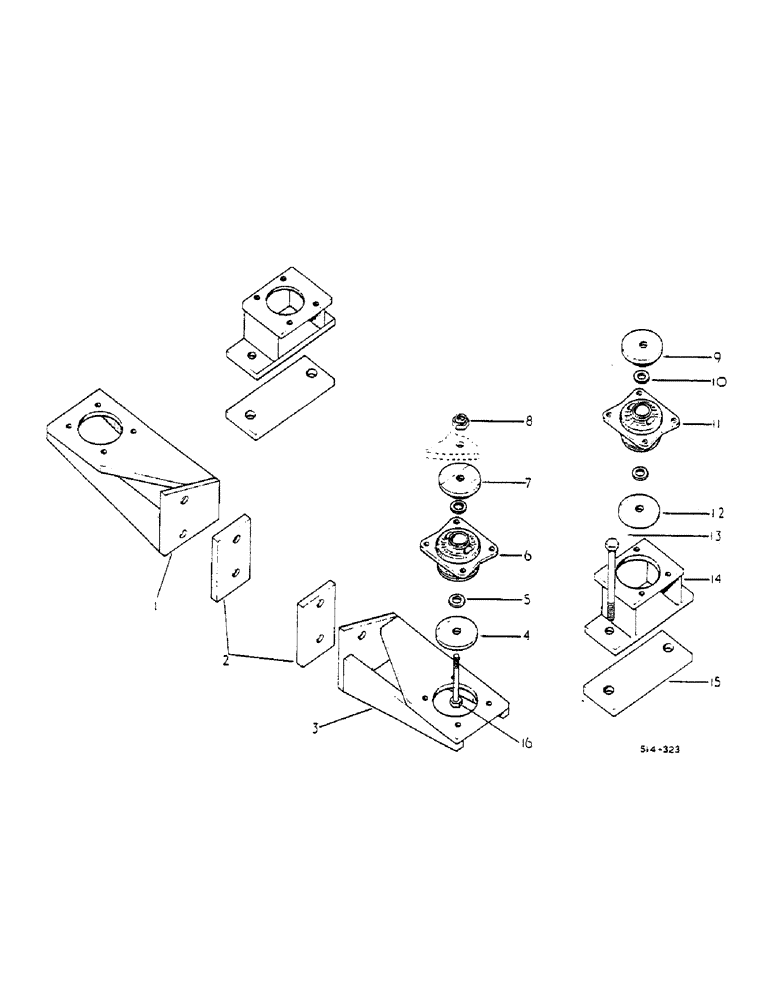

Схема запчастей Case IH 268 - (13-038) - CAB MOUNTINGS, MACHINES FITTED WITH CAB (05) - SUPERSTRUCTURE
16
4
11
7
12
10
6
13
8
2
15
9
3
14
1
5

Артикул

Название

Примечание

Количество

1

3116138R1

SUPPORT ASSY.

FRONT MOUNTING R.H.

1шт.

2

3116145R1

PLATE

FRONT SPACER

2шт.

3

3116137R1

SUPPORT ASSY.

FRONT MOUNTING L.H., INCLUDES SCREWS

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3/4-10 X 2-1/4 HEX HD CAP

2шт.

4

3116148R1

WASHER

REBOUND

2шт.

5

3048473R1

WASHER

CENTRALISING

4шт.

6

3116146R91

RUBBER MOUNTING

BUSHING, MOUNTING FRONT, YELLOW, INCLUDES SCREWS AND NUTS

2шт.

151629R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3/8-16 X 1 HEX HD CAP

8шт.

3063560R1

LOCK NUT

3/8-16 LOCK

8шт.

7

3116801R1

CUP WASHER

2шт.

8

3100765R1

NUT

5/8-11 LOCK

4шт.

9

3116801R1

CUP WASHER

2шт.

10

3048473R1

WASHER

CENTRALISING

4шт.

11

1502231C91

RUBBER MOUNTING

BUSHING, MOUNTING REAR, RED, INCLUDES SCREWS AND NUTS

2шт.

151629R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

3/8-16 X 1 HEX HD CAP

8шт.

3063560R1

LOCK NUT

3/8-16 LOCK

8шт.

12

3116148R1

WASHER

REBOUND

2шт.

13

18755R1

BOLT,Hex, 5/8"-11 x 7 1/2", G5

Includes nuts and washers

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

4шт.

14

3116142R1

SUPPORT ASSY.

REAR MOUNTING

2шт.

15

3116143R1

PLATE

AXLE MOUNTING

1шт.

16

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

4шт.
