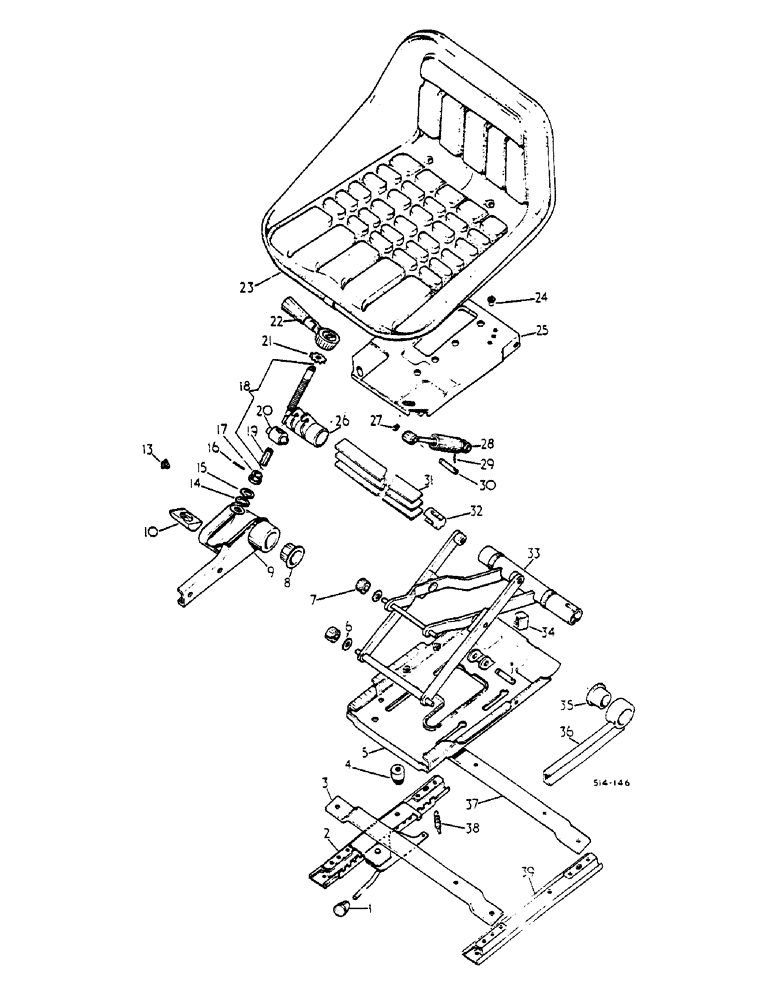

Запчасти Case IH 268 (13-029) - BOSTROM SUSPENSION SEAT, DE-LUXE, LOW BACK (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
528738R91
SEAT ASSY.
DELUXE SUSPENSION, INCLUDES BOLTS, WASHERS, SPACERS AND SCREWS
1шт.
180081
BOLT,Hex, 5/16"-18 x 1 1/4", G5
4шт.
138538
LOCK WASHER
5/16 INT TOOTH
4шт.
3064188R1
SPACER
SEAT, MACHINE FITTED W/ISO MOUNTED CAB
4шт.
160717
SCREW,Cross Pan Hd, 5/16" - 18 x 1"
4шт.
138538
LOCK WASHER
5/16 C-Z INT TOOTH, MACHINES NOT FITTED W/ISO MOUNTED CAB
4шт.
1
538693R1
BUTTON
KNOB
1шт.
2
825199C91
SLIDE
RAIL, R.H., INCLUDES SCREWS AND WASHERS
1шт.
163688
SCREW 5/16-18 X 3/4 CZ CR REC PAN HD MACH
2шт.
80681
LOCK WASHER,5/16"
2шт.
3
538550R1
BRACKET
FRONT, INCLUDES NUTS, SCREWS AND WASHERS
1шт.
120376
NUT,5/16"-18, G5
2шт.
160688
SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"
2шт.
80681
LOCK WASHER,5/16"
2шт.
4
3109739R1
BUMPER
INCLUDES SCREW AND WASHERS
1шт.
132259
GUARD
1/4-20 X 5/8 CR REC FILL HD MACH
1шт.
32590D
WASHER
.265 X .422 X .032 CZ
2шт.
5
538553R1
BASE
PLATE ASSY, INCLUDES SCREWS AND WASHERS
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
2шт.
120393
BEARING WASHER,5/16", SAE
11/32 X 11/16 X .051 CZ
2шт.
6
538565R1
WASHER
6шт.
7
538566R1
ROLLER
4шт.
8
538556
MOUNTING PARTS
BEARING, FLANGED
1шт.
9
538558R91
SHROUD
L.H., INCLUDES SCREWS AND WASHERS
1шт.
88574
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd
2шт.
120393
BEARING WASHER,5/16", SAE
11/32 X 11/16 X .051 CZ
2шт.
10
534574R1
SPACER
1шт.
11
NOT USED
1шт.
12
NOT USED
1шт.
13
538695R1
PLUG
PUSH-IN
1шт.
14
538575R91
BEARING, NEEDLE
1шт.
15
538576R1
THRUST WASHER
2шт.
16
538572R1
PIN, ROLL
1шт.
17
538571R1
COLLAR
1шт.
18
538567R91
STUD
ASSY, ADJUSTER
1шт.
19
538569R1
SLEEVE
1шт.
20
538563R1
TRUNNION
ADJUSTER
1шт.
21
538570R1
GEAR
ADJUSTER
1шт.
22
538573R1
HANDLE
ASSY, RATCHET, INCLUDES SCREW AND WASHERS
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16-18 X 3/4 ZND HEX HD CAP
1шт.
20893R1
WASHER
11/32 X 1 X 11 GA CZ
1шт.
80681
LOCK WASHER,5/16"
1шт.
23
538528R1
SEAT
ASSY, PAN, INCLUDES SCREWS AND WASHERS
1шт.
160688
SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"
4шт.
80681
LOCK WASHER,5/16"
4шт.
120393
BEARING WASHER,5/16", SAE
11/32 X 11/16 X .51 CZ
4шт.
24
538552R1
NUT
4шт.
25
538551R1
SEAT PLATE
ASSY, TOP, INCLUDES SCREWS AND WASHERS
1шт.
180018
CONNECTING LINK
SCREW 1/4-20 X 5/8 ZND HEX HD CAP
2шт.
156241
SCREW,Cross Flat Hd, 1/4" - 20 x 1/2"
2шт.
492-11025
LOCK WASHER,1/4"
2шт.
26
538557R1
ADJUSTER
1шт.
27
110668R1
CIRCLIP,#37, .300" Dia, E-Type
2шт.
28
538577R1
DAMPER
ASSY
1шт.
29
538579R1
PIN, ROLL
COTTER CHECK
2шт.
30
538578R1
PIN
DAMPER
2шт.
31
3074836R1
BAR
TORSION
3шт.
32
538560R1
RETAINER
1шт.
33
538554R1
LEVER ASSY.
1шт.
34
538564R1
STOP
LIMIT
2шт.
35
538556R1
FLANGED BEARING
FLANGED
1шт.
36
538555R91
BRACKET
BEARING ASSY
1шт.
37
538529R1
BRACKET
REAR, INCLUDES NUTS, SCREWS AND WASHERS
1шт.
120376
NUT,5/16"-18, G5
2шт.
160688
SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"
2шт.
80681
LOCK WASHER,5/16"
2шт.
38
538694R1
SPRING
1шт.
39
825198C1
RAIL
SLIDE L.H., INCLUDES SCREWS AND WASHERS
1шт.
160688
SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"
2шт.
80681
LOCK WASHER,5/16"
2шт.
Выбрано товаров: 70
