Запчасти Case IH 268 (13-017) - REAR FENDERS, CROWN TYPE (05) - SUPERSTRUCTURE

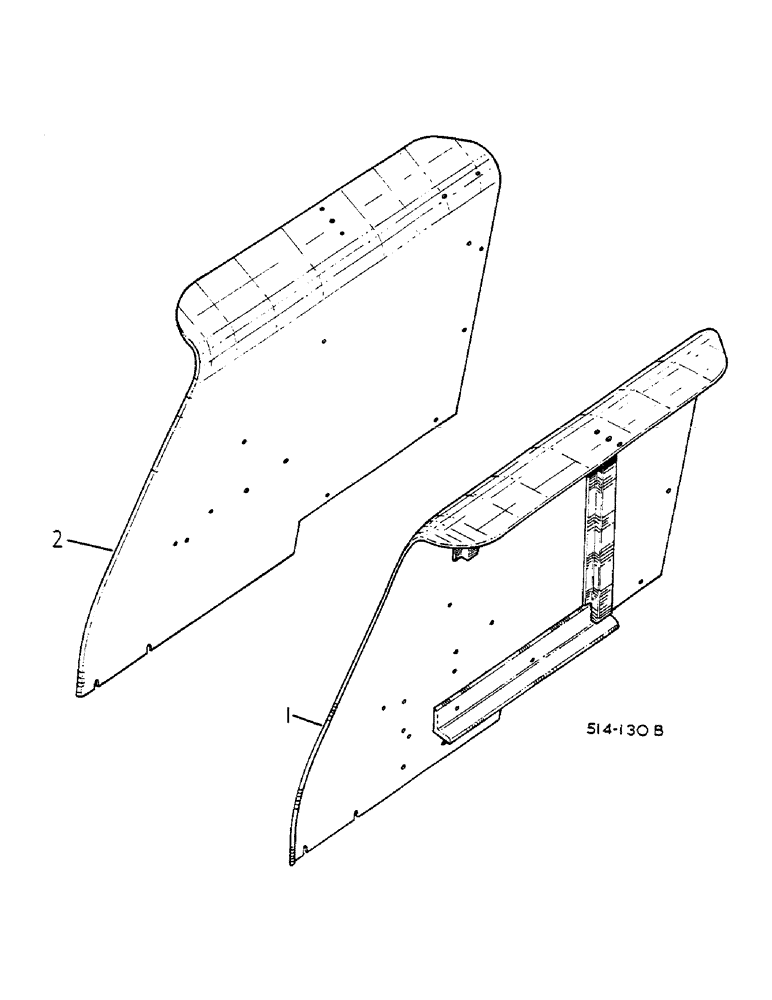

Схема запчастей Case IH 268 - (13-017) - REAR FENDERS, CROWN TYPE (05) - SUPERSTRUCTURE
2
1

Артикул

Название

Примечание

Количество

1

538641R4

FENDER ASSY.

L.H. W/PRODUCT GRAPHIC

1шт.

2

530015R5

FENDER

R.H., INCLUDES SCREWS, WASHERS, NUTS

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

To rear top cover

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

2шт.

120376

NUT,5/16"-18, G5

To transmission shift control housing or draft control housing

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 HEX HD CAP

4шт.

116121

LOCK WASHER,1/2"

To axle carrier

4шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 X 5/8 HEX HD CAP

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

To parking brake bracket

3шт.

3113657R1

PLUG

SIDE AND TAIL LIGHT BLANKING, NOT ILLUSTRATED

4шт.

3113430R1

PLUG

SIDE AND TAIL LIGHT BLANKING, NOT ILLUSTRATED

2шт.

3112888R1

PLUG

BLANKING HOLE 1/2, NOT ILLUSTRATED

1шт.

531625R1

GROMMET

NOT ILLUSTRATED

2шт.

Выбрано товаров: 16
