Запчасти Case IH 268 (13-004) - INSTRUMENT PANEL SIDE HOUSING (05) - SUPERSTRUCTURE

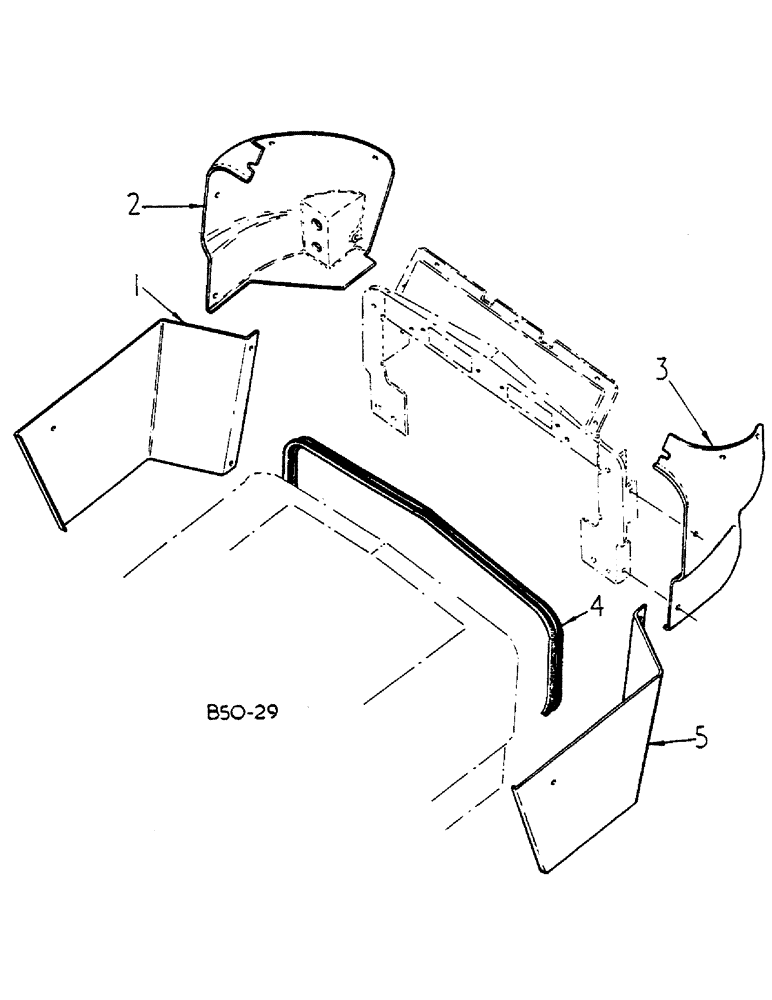

Схема запчастей Case IH 268 - (13-004) - INSTRUMENT PANEL SIDE HOUSING (05) - SUPERSTRUCTURE
1
4
5
2
3

Артикул

Название

Примечание

Количество

1

3121638R1

GUARD

PANEL, LOWER REAR SIDE R.H., INCLUDES SCREWS

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX-WASHER-HD CAP, MACHINES NOT FITTED W/CAB

3шт.

1

3123010R1

PANEL

LOWER REAR SIDE R.H., INCLUDES SCREWS

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX-WASHER-HD CAP

2шт.

3116384R1

SELF-TAP SCREW

NO. 10-16 X 1 HEX SLT HD TAP, MACHINES FITTED W/CAB

2шт.

2

3121710R1

HOUSING

INSTRUMENT PANEL SIDE R.H., MACHINES FITTED W/CAB

1шт.

2

3121712R1

HOUSING

INSTRUMENT PANEL SIDE R.H., MACHINES NOT FITTED W/CAB

1шт.

2

3121714R1

HOUSING

INSTRUMENT PANEL SIDE R.H., MACHINES FITTED W/CAB, HYDRO 268, INCLUDES NUTS AND SCREWS

1шт.

3121715R1

SPRING NUT

REVERSE

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

10 X 5/8 PAN HD CR TYPE AB ZND

3шт.

3

3121709R1

HOUSING

INSTRUMENT PANEL SIDE L.H., MACHINES FITTED W/CAB

1шт.

3

3121711R1

HOUSING

INSTRUMENT PANEL SIDE L.H., MACHINES NOT FITTED W/CAB

1шт.

3

3121713R1

HOUSING

INSTRUMENT PANEL SIDE L.H., MACHINES FITTED W/CAB, HYDRO 268, INCLUDES NUTS AND SCREWS

1шт.

3121715R1

SPRING NUT

REVERSE

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

10 X 5/8 PAN HD CR TYPE AB ZND

3шт.

4

SEAL, HOOD SHEET 1160MM

1шт.

4

3121645R1

SEALING STRIP

RUBBER SEALING STRIP, BULK LENGTH 50 YDS

1шт.

5

3121637R1

GUARD

PANEL, LOWER REAR SIDE L.H., INCLUDES SCREWS

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX-WASHER-HD CAP, MACHINES NOT FITTED W/CAB

3шт.

5

3123009R1

PANEL

SPARE PART LOWER REAR SIDE L.H., INCLUDES SCREWS

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 5/8 HEX-WASHER-HD CAP

2шт.

3116384R1

SELF-TAP SCREW

NO. 10-16 X 1 HEX SLT HD TAP, MACHINES FITTED W/CAB

2шт.

1135251R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING L.H., 685, NOT ILLUSTRATED

1шт.

1135279R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING R.H., 685, NOT ILLUSTRATED

1шт.

1093231R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING L.H., 684, NOT ILLUSTRATED

1шт.

1093232R1

PRODUCT GRAPHIC

INSTRUMENT HOUSING R.H., 684, NOT ILLUSTRATED

1шт.

Выбрано товаров: 26
