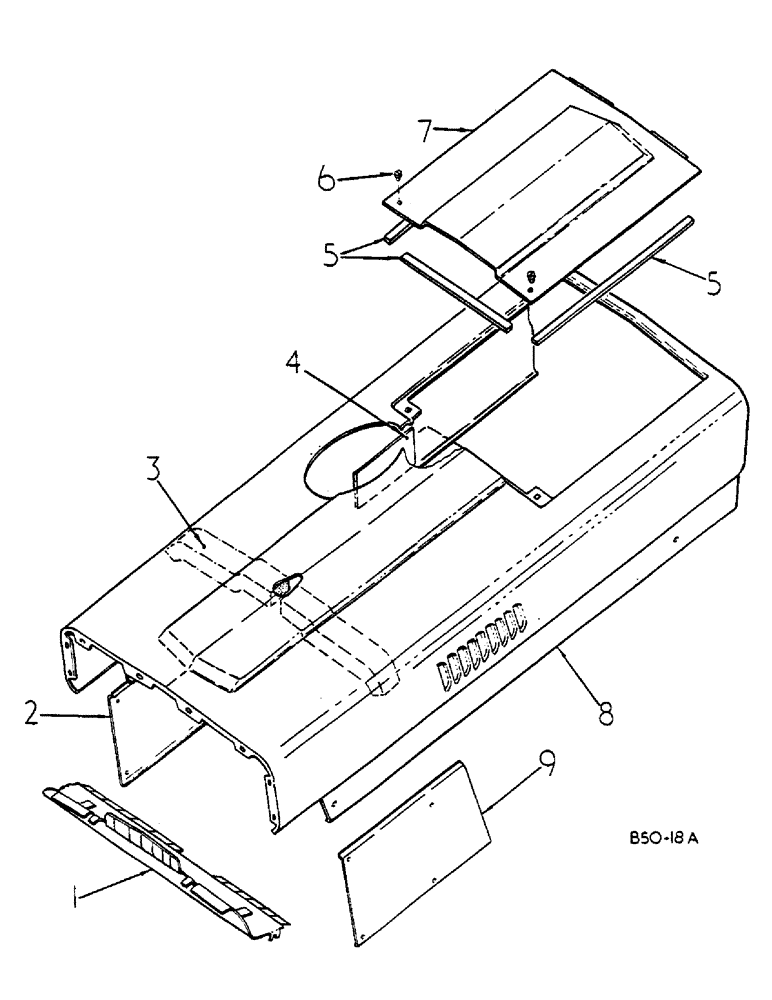

Запчасти Case IH 268 (13-002) - HOOD AND PANEL (05) - SUPERSTRUCTURE

1

3121397R2

BAFFLE

UPPER, INCLUDES WASHERS AND NUTS

1шт.

95-11028

WASHER,1/4"

.281 X .625 X .051

4шт.

103319

LOCK WASHER,1/4"

4шт.

109084

NUT,1/4"-20, G5

4шт.

2

3121399R1

PANEL

SIDE R.H., STANDARD MACHINES

1шт.

2

3121396R1

PANEL

SIDE R.H., 4-WHEEL DRIVE, INCLUDES BOLTS

1шт.

3118624R1

SCREW

5/16"-18 C-Z Hex Washer Hd

4шт.

3

3125487R1

GASKET

FOAM, BULK LENGTH 4FT

1шт.

4

3121377R1

SHIELD

HEAT

2шт.

5

SEAL, REAR HOOD COVER 16FT

1шт.

5

SEAL, REAR HOOD COVER 50FT

2шт.

5

3121163R1

SEAL

REAR HOOD COVER, BULK LENGTH 25 FT

1шт.

6

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

2шт.

6

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

OPTIONAL, INCLUDES WASHERS

2шт.

376787R1

WASHER

2шт.

7

3121393R91

COVER ASSY

REAR HOOD

1шт.

8

3121383R92

HOOD ASSY.

VERTICAL EXHAUST, DE-LUXE CAB

1шт.

8

3123989R91

HOOD

ASSY, SWEDEN

1шт.

8

3121381R92

HOOD ASSY.

4-WHEEL DRIVE

1шт.

8

3121389R91

HOOD ASSY.

TRACTOR W/UNDERSLUNG EXHAUST, INCLUDES NUTS, WASHERS, BOLTS AND SCREWS

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 CAGE

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

2шт.

3118624R1

SCREW

5/16"-18 C-Z Hex Washer Hd

4шт.

3121721R1

SCREW

5/16-18 HEX WASHER HD

4шт.

9

3121398R1

PANEL

SIDE L.H., STANDARD MACHINES

1шт.

9

3121395R1

PANEL

SIDE L.H., 4-WHEEL DRIVE, TRACTOR W/VERTICAL EXHAUST, INCLUDES CLIP

1шт.

537024R1

CLIP

CABLE

1шт.
