Запчасти Case IH 268 (07-203) - P.T.O. CLUTCH AND DRIVE, Z F AXLE (04) - Drive Train

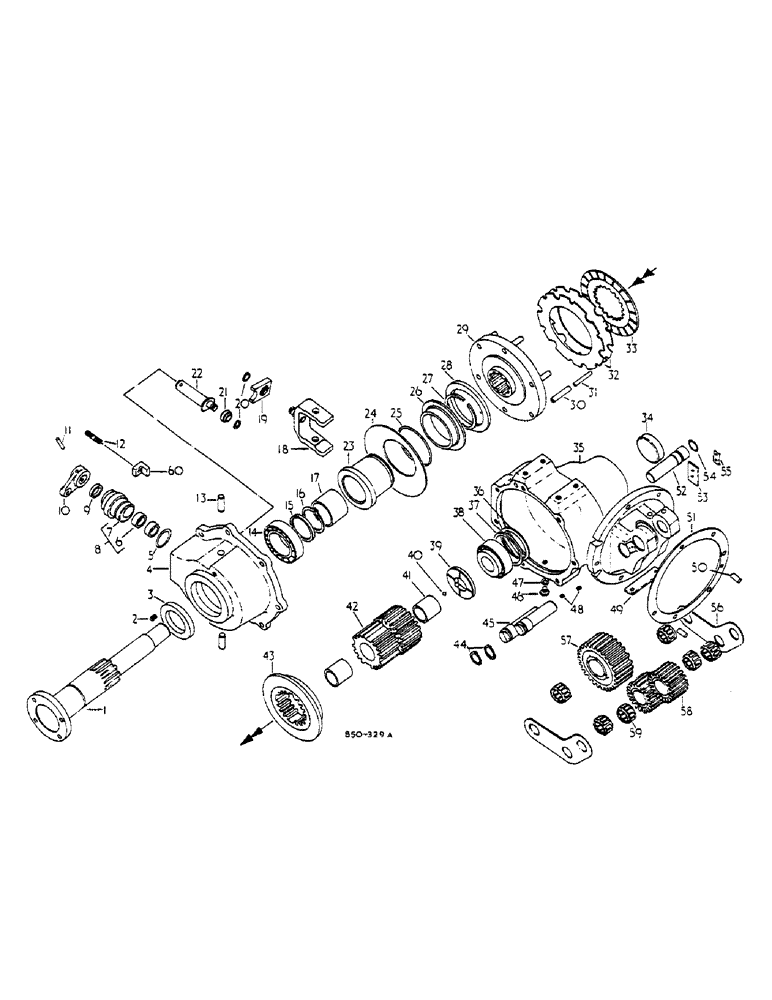

Схема запчастей Case IH 268 - (07-203) - P.T.O. CLUTCH AND DRIVE, Z F AXLE (04) - Drive Train
21
23
32
38
53
1
30
9
4
58
27
55
13
60
25
41
48
51
14
54
46
37
40
8
43
2
11
24
35
34
56
15
22
20
19
33
7
59
52
10
31
29
45
28
47
36
49
5
26
12
18
17
6
16
3
42
57
44
39
50

Артикул

Название

Примечание

Количество

1

3129959R1

SHAFT

MAIN

1шт.

2

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

3

3216278R1

SEAL

OIL

1шт.

4

3223136R1

CASE

FRONT, INCLUDES BOLTS AND WASHERS

1шт.

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

PHC

7шт.

933965R1

LOCK WASHER,M10

Helical

7шт.

5

3217269R1

O-RING,2.5mm Thk x 42mm ID, 70 Duro

1шт.

6

3064504R1

BEARING

2шт.

7

1500549C2

HOUSING

CONTROL

1шт.

8

1500548C92

HOUSING ASSY.

CONTROL

1шт.

9

1500550C1

OIL SEAL

1шт.

10

1500013C1

LEVER

LOWER

1шт.

11

Q2935

LOCK PIN,M8 x 45, Slotted

1шт.

12

3072253R1

STUD

685/10,000 UP

1шт.

12

3217542R1

STUD

UP TO 684/999, INCLUDES WASHER AND NUT

1шт.

95-11034

WASHER,1/4"

.344 X .688 X .051 PLN

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

13

3216291R3

PIN

2шт.

14

3216279R91

TAPERED BEARING

TAPER ROLLER

1шт.

14

3217911R91

TAPERED BEARING

TAPER

1шт.

14

3216280R91

TAPERED BEARING

1шт.

14

3217910R91

BEARING, ROLLER

TAPER, OPTIONAL

1шт.

15

3216292R1

WASHER

1шт.

16

933030R1

SNAP RING,M55, Ext

RETAINING

1шт.

17

3216285R1

SPACER

SPACER

1шт.

18

3223146R92

YOKE

UNIVERSAL JOINT YOKE ASSY

1шт.

19

3229050R1

SLIPPER

CONTROL ASSY

1шт.

20

933120R1

SNAP RING,M15, Ext

RETAINING M15 X 1

2шт.

21

3126283R1

BUSHING

BALL

1шт.

22

1500547C1

PIN

ECCENTRIC

1шт.

23

1500647C91

SLEEVE ASSY

CLUTCH RELEASE W/SPACER 3216283R1

1шт.

24

3223717R1

SPRING WASHER

WASHER, BELLEVILLE

1шт.

25

3216293R3

RING

SPACER

1шт.

26

3216294R3

RING

BUSHING

1шт.

27

934593R1

CIRCLIP,#80, 75.4 x 4.85 x 1.7

RETAINING

1шт.

28

3126295R91

BEARING

THRUST

1шт.

29

1500645C41

HUB

ASSY, W/PINS

1шт.

30

932166R1

LOCK PIN,M10 x 50, Slotted

M6 X 50 Slotted Spring

6шт.

31

932166R1

LOCK PIN,M10 x 50, Slotted

6шт.

32

3221192R1

DISC

CLUTCH OUTER

10шт.

33

1500651C1

CLUTCH PLATE,120mm ID x 156mm OD x 3.05mm Thk

CLUTCH INNER

4шт.

34

934581R1

PLUG,M63, Conical

CUP

1шт.

35

3129949R1

CASE

MOUNTING

1шт.

36

3142414R1

SHIM

.1

1шт.

36

3146816R1

SHIM

.15

1шт.

36

3142630R1

SHIM

.2

1шт.

36

3142631R1

SHIM

.5

1шт.

36

1 OR AS REQUIRED

1шт.

37

3223137R1

WASHER

1шт.

38

3220682R91

TAPERED BEARING,35mm ID x 80mm OD x 32.75mm W

TAPER ROLLER

1шт.

38

3225581R91

TAPERED BEARING

OPTIONAL

1шт.

39

1500649R1

WASHER, THRUST

1шт.

40

17008R1

BALL,1/4" Dia

Chrome Steel Grade 25

1шт.

41

3129962R1

BUSHING

2шт.

42

3129960R91

GEAR

ASSY, 24T W/TWO BUSHING 3129962R1

1шт.

43

3129963R1

PLATE ASSY.

THRUST

1шт.

44

399837R1

SNAP RING,#118, 1.121", Ext

RETAINING

2шт.

45

3129951R1

PIN

20T IDLER GEAR

2шт.

46

934259R1

PLUG,Hex, M10 x 1

Straight, Drain

1шт.

47

718743R1

SEALING RING,M10 x 16 x 1

1шт.

48

444687

PLUG,Hex Soc, 1/8"-27

Dryseal Auto

2шт.

49

3129966R1

BRACKET

INCLUDES BOLTS AND WASHERS

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 X 20 PLN HEX HD

2шт.

934309R1

LOCK WASHER,M8

2шт.

50

20154R1

DOWEL,5/16" x 7/8"

PIN 5/16 X .875 HARDENED

2шт.

51

984791C1

GASKET

.016, INCLUDES BOLTS AND WASHERS

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

7шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

.406 X .812 X .089 PHC HARDENED

2шт.

52

3129953R1

PIN

31T IDLER GEAR

1шт.

53

3129957R1

PLATE

Gear pin lock

2шт.

54

3129954R1

O-RING

1шт.

55

3129958R1

PLATE, LOCKING

BOLT, INCLUDES BOLTS

2шт.

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

56

3129956R1

THRUST WASHER

IDLER GEAR

2шт.

57

3129952R1

GEAR, IDLER

GEAR,IDLE 31T

1шт.

58

3129950R1

GEAR, IDLER

GEAR,IDLE 30T

2шт.

59

3129955R91

BEARING, NEEDLE

ROLLER

6шт.

60

1502172C1

ANGLE

CLAMP

1шт.

Выбрано товаров: 78
